Mef express - Aerial tube bundle extractors for heat exchangers "on shore"

MAUS ITALIA proposes its NEW complete range of Mef express aerial extractors for the extraction and insertion of tube bundles on the plant for maintenance operations even at considerable distances from the ground.
Years of product evolution have allowed a complete reinterpretation of the design which makes MAUS ITALIA overhead tube bundle extractors today even more lightweight, more flexible and easier to handle.

  • For tube bundles up to 125 T weight

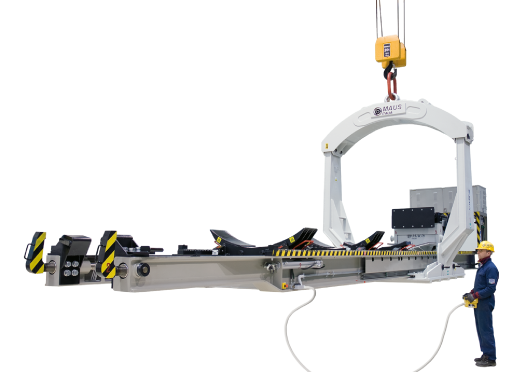

Aerial tube bundle extractors Mef express Maus Italia



Mef express main features



Mef express - Maus Italia

No damage

The Mef express extractor carefully supports the tube bundle during extraction and insertion and ensures perfect balancing along its longitudinal axis eliminating the risk of damaging the diaphragms or crushing the tubes.

Mef express - Maus Italia

Operational simplicity

The controls on the machine or on the supplied remote control make the Mef express extremely easy and intuitive to use, guaranteeing the operator control of the extraction sequence.

Mef express - Maus Italia

Long-lasting epicyclic power

Thanks to powerful planetary gearboxes, the aerial Mef express develops a high pulling/thrust force, thus minimising maintenance interventions.





Mef express main optionals



Mef express - Maus Italia

Electronic Overturning Control system

The Mef express can be supplied upon request with the innovative EOC system which allows handling of loads in total safety by inhibiting any incorrect commands that could compromise stability.

Mef express - Maus Italia

Certification

The aerial Mef express can be manufactured upon request according to the ATEX directive in an explosion-proof configuration for use in environments with a potentially explosive atmosphere.

Mef express - Maus Italia

It's not afraid of the cold

The aerial Mef express can be supplied upon request in the special version suitable for operating at the lowest of temperatures.

Mef express - Maus Italia

It adapts according to need

MAUS ITALIA can design the aerial Mef express upon request and after technical verification for bundle sizes and weights that differ from the proposed standard product.

Mef express - Maus Italia

Certified for FPSO and offshore platforms

MAUS ITALIA designs and manufactures upon request Mef express NAVY aerial tube bundle extractors - DNVGL type approval - for OFFSHORE applications, Mef fixed NAVY fixed ground versions and Mef mobile NAVY self-propelled tracked versions







Mef express ensure minimum downtime and protection of the tube bundle during extraction



  • Adjustable hydraulic clamps for locking to the exchanger flange. Also available with independent controls (optional)
  • Electro-welded steel structure (with integrated hydraulic system) to support the weight of the tube bundle
  • Electro-welded steel lifting ring which can be separated into three parts for transportation in standard containers
  • Air-cooled diesel engine (water-cooled optional)
  • Manual support trolleys. Available in hydraulic powerassisted version (optional)
  • Hydraulic rope tensioner system for safe anchoring of the extractor to the exchanger. Also available with independent controls (optional)
  • Remote control (wireless optional)

Aerial tube bundle extractors Mef express Maus Italia



Extraction sequence



Aerial tube bundle extractors Mef express Maus Italia




Easy container transport


For sizes beyond the Mef express 2045/75, the lifting ring can be disassembled into 3 parts to allow the extractor to be shipped in standard containers.

Mef express Maus Italia

Hydraulic balancing system


Two powerful hydraulic pistons allow the extractor to be balanced by modifying, if necessary, the position of the frame with respect to the ring attached to the crane

Mef express Maus Italia

Bundle supports with manual adjustment


The correct housing of the tube bundle is guaranteed by the support trolleys which, by leaning on the baffles, support it safely without compromising its integrity

Mef express Maus Italia

Long-lasting epicyclic power


Powerful planetary gearboxes (from 1 to 3, depending upon the pulling force) permit the Mef express to develop a pulling/thrust force suitable for high loads and to minimise maintenance interventions on the transmission components

Mef express Maus Italia



Aerial tube bundle extractors Mef express Maus Italia

NEW / PATENTED: Telescopic arms for the thrust and rotation of the tube bundle

Innovative remote-controlled system for rotating the tube bundle which allows safe alignment of the tube bundle with the shell, thus avoiding operator intervention above the machine during the final insertion phase.

EOC: Electronic Overturning Control system

Innovative control system that allows the aerial handling of loads in total safety, inhibiting any incorrect commands that would compromise the stability of the Mef express.

Aerial tube bundle extractors Mef express Maus Italia

Aerial tube bundle extractor Mef express Maus Italia

ATEX certification on request

The Mef express tube bundle pullers are available, on request, suitable for use in hazardous areas, complete with an ATEX declaration of conformity covering the whole machine ( motors, electrical system and all machine components ).





Image gallery of Mef Express







Product technical datasheet

If you would like all the technical information related to this product, please download the .pdf brochure
or get in contact with us directly, our qualified personnel will answer to your queries.
