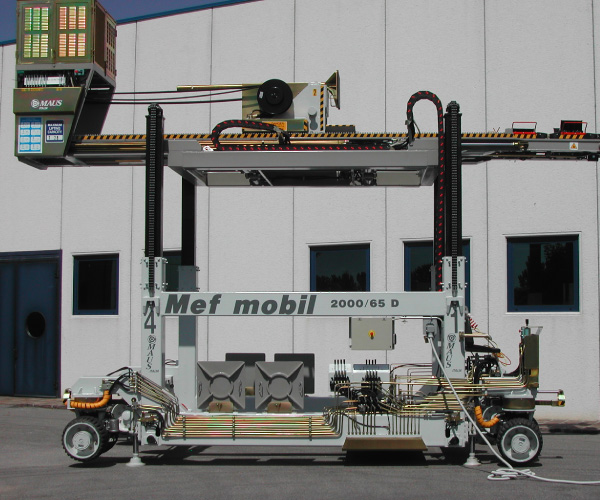

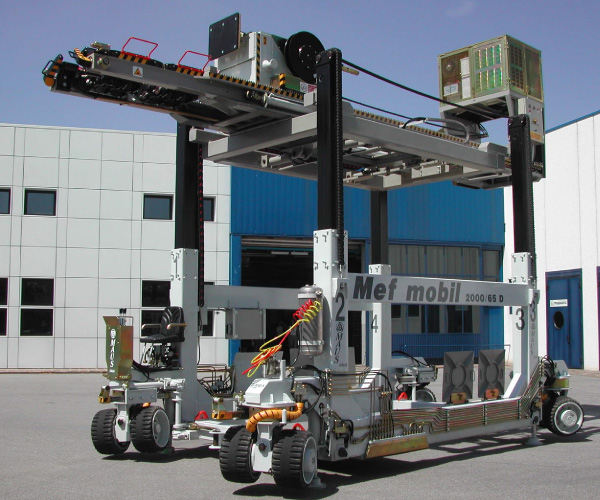

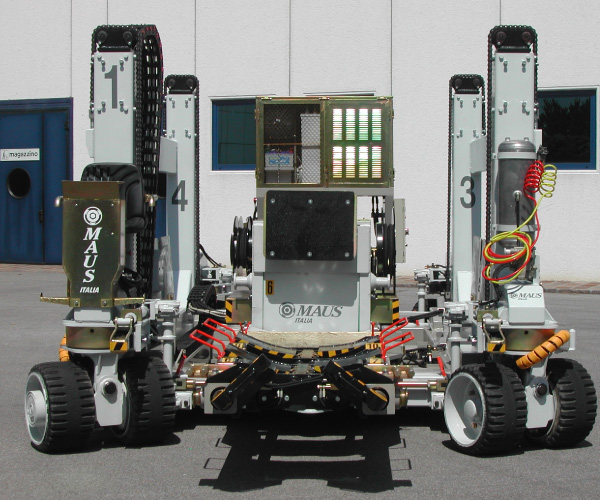

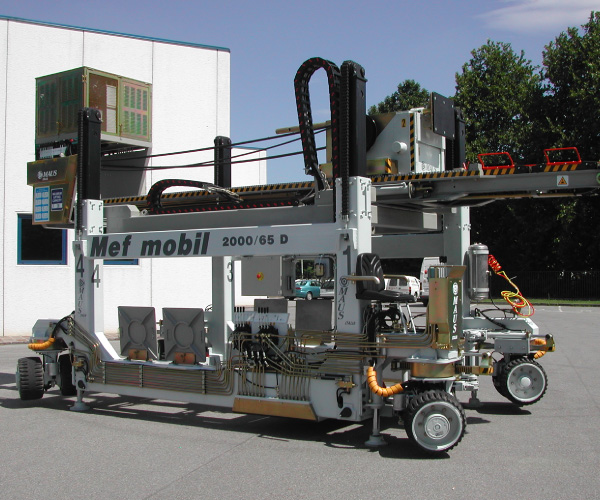

Mef mobil - "On-shore" remote-controlled, self-positioning puller for the extraction, lifting and movement of tube bundles up to 20 T

The Mef mobil tube bundle puller, designed for difficult to access areas, is completely self-sufficient and is a global solution for petrochemical plants for the extraction of tube bundles and their transportation to maintenance/cleaning areas.

The Mef mobil extractor operates completely autonomously, without the need for a crane or truck, for positioning, lifting and transportation to the tube bundle maintenance area after extraction.



Self-positioning tube bundle puller Mef Mobil Maus Italia


The dimensions that count

The Mef mobil solves the problems faced in difficult to access areas, such as under roofs.


High lifting capacity:

up to 5850 mm ( 230" ) height



Lateral translation of the frame being extracted:

+/- 100 mm ( +/- 4" )

Self-positioning tube bundle puller Mef Mobil Maus Italia

Self-positioning tube bundle puller Mef Mobil Maus Italia

Wireless remote control on request

Self-positioning tube bundle puller Mef Mobil Maus Italia

Special models for low temperatures can be supplied.

Self-positioning tube bundle puller Mef Mobil Maus Italia

Longitudinal movement of the extraction frame

to increase the flexibility of the Mef mobil 1650/68 permits the heat exchanger’s position to be reached easily.

Self-positioning tube bundle puller Mef Mobil Maus Italia

ATEX certification on request

The Mef mobil extractor is available on request complete with an ATEX declaration of conformity covering the whole machine ( motors, electrical system and all machine components are suitable for work areas classified as hazardous ).


Image gallery of Mef Mobil







Product technical datasheet

If you would like all the technical information related to this product, please download the .pdf brochure
or get in contact with us directly, our qualified personnel will answer to your queries.
