Quadrol MRP-EH - Hydro-mechanically expansion system for tube expanders with parallel rolls

This systems is dedicated to expand the tubes wherever it is necessary to minimize elongation in the tube and its related stress to obtain a perfect homogeneous contact between tube and tubesheet across the entire expansion length.

• External tubes diameter range from 12,70 to 25,40 mm ( from 1/2" to 1" )

Parallel rolls advantages

• High productivity
• Quality of the expanded product
• Reduction of the tubes elongation (expecially for thin tubes)
• Better quality of the expanded contact between the tube and tube-sheet giving a perfect cylindrical expanded shape in the tube ID
• Reduction of residual internal stress
• Significant reduction of the number of the tools required

Quadrol MRP-EH exclusive features

The Quadrol MRP-EH system is for tube rolling where a very high precision is needed, the parallel rolls technology also prevent the tube elongation caused during the wall reduction and the relative stress in the tube.

• Variable speed brushless low voltage motor is installed on the rolling head
• Revolutionary dedicated sensor to control the expanded diameter
• Possibility to control the mandrel feeding speed directly on the main controller

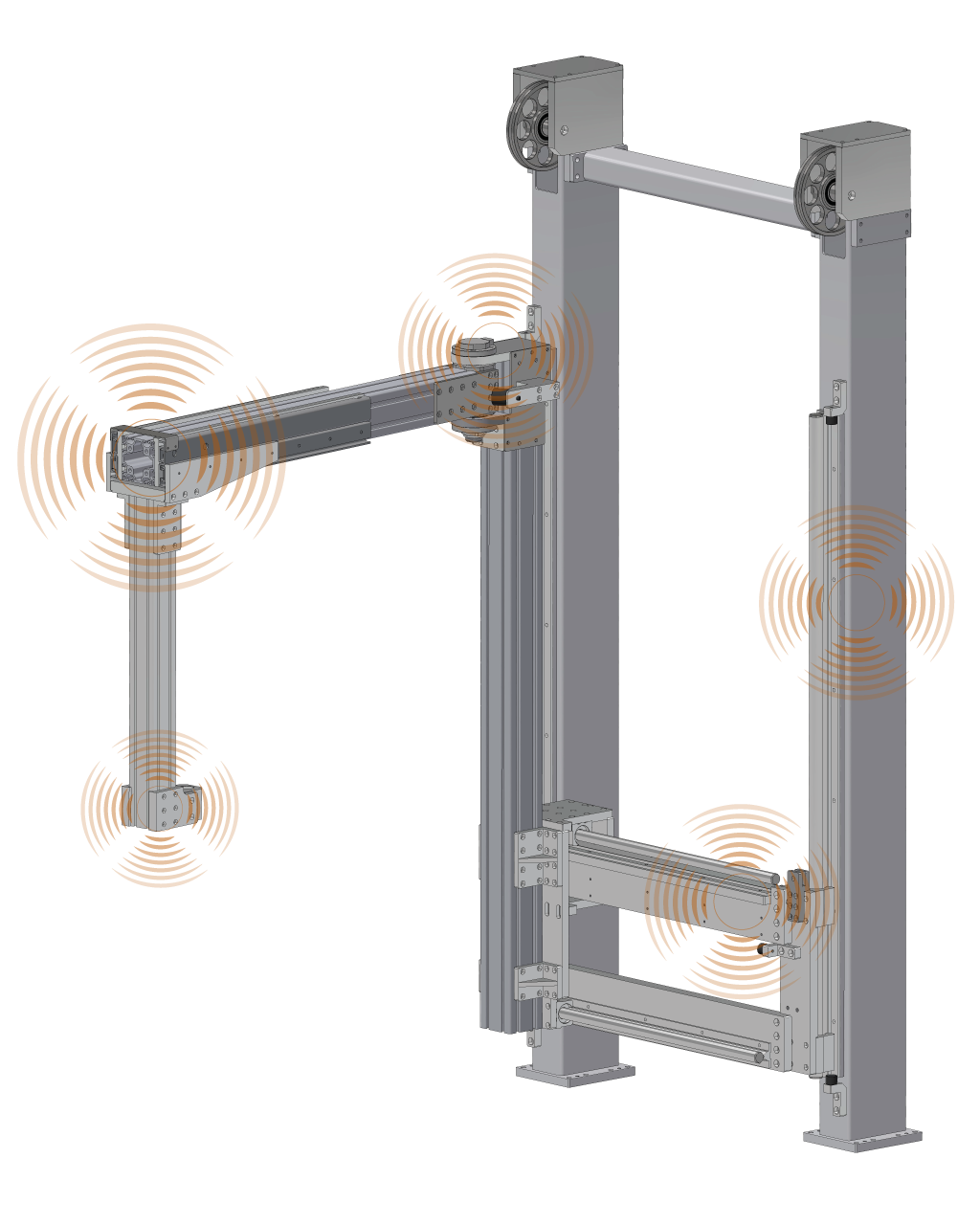

• Articulated arm equipped with "zero gravity system"
• Possibility to save the machine setting program on external memory support
• Possibility to save expansion data report

Optionals

Possibility to increase the rolling head size to achieve max 60 Nm rolling torque ( MRP EH-60 ).

The Quadrol MRP-EH can be equipped with a torque cell load installed directly on the mandrel line to measure and verify the actual torque used for the expansion of every tube.

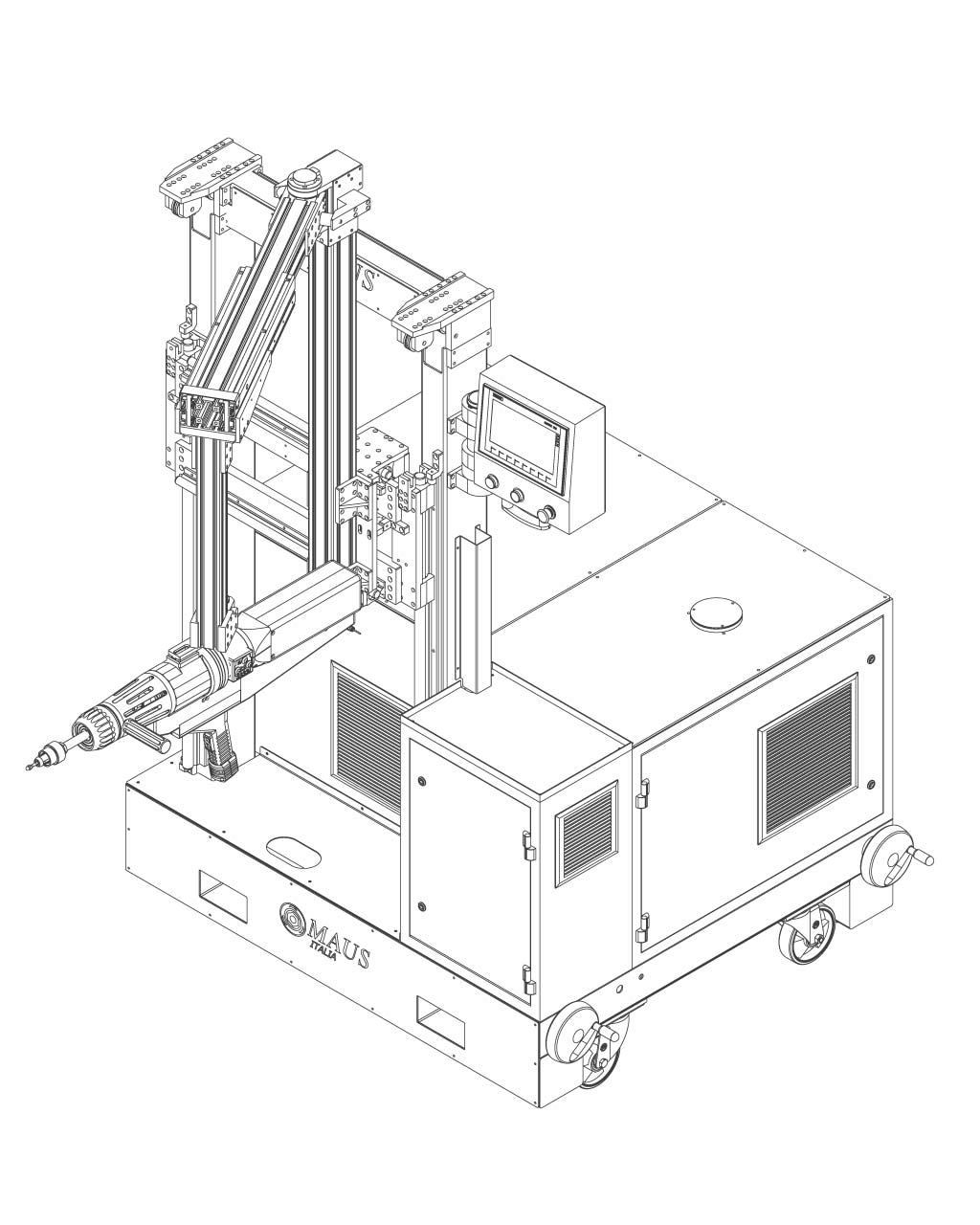

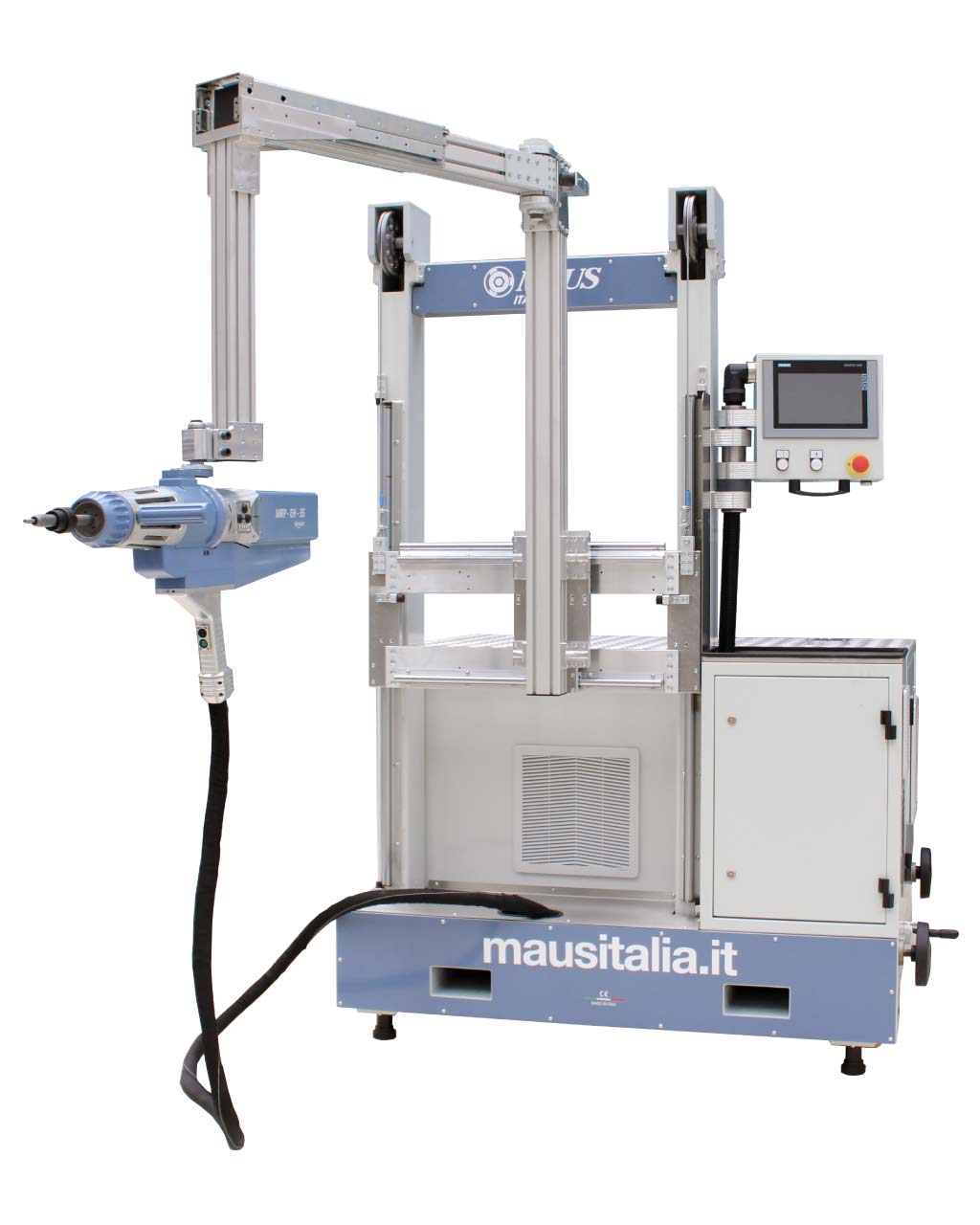

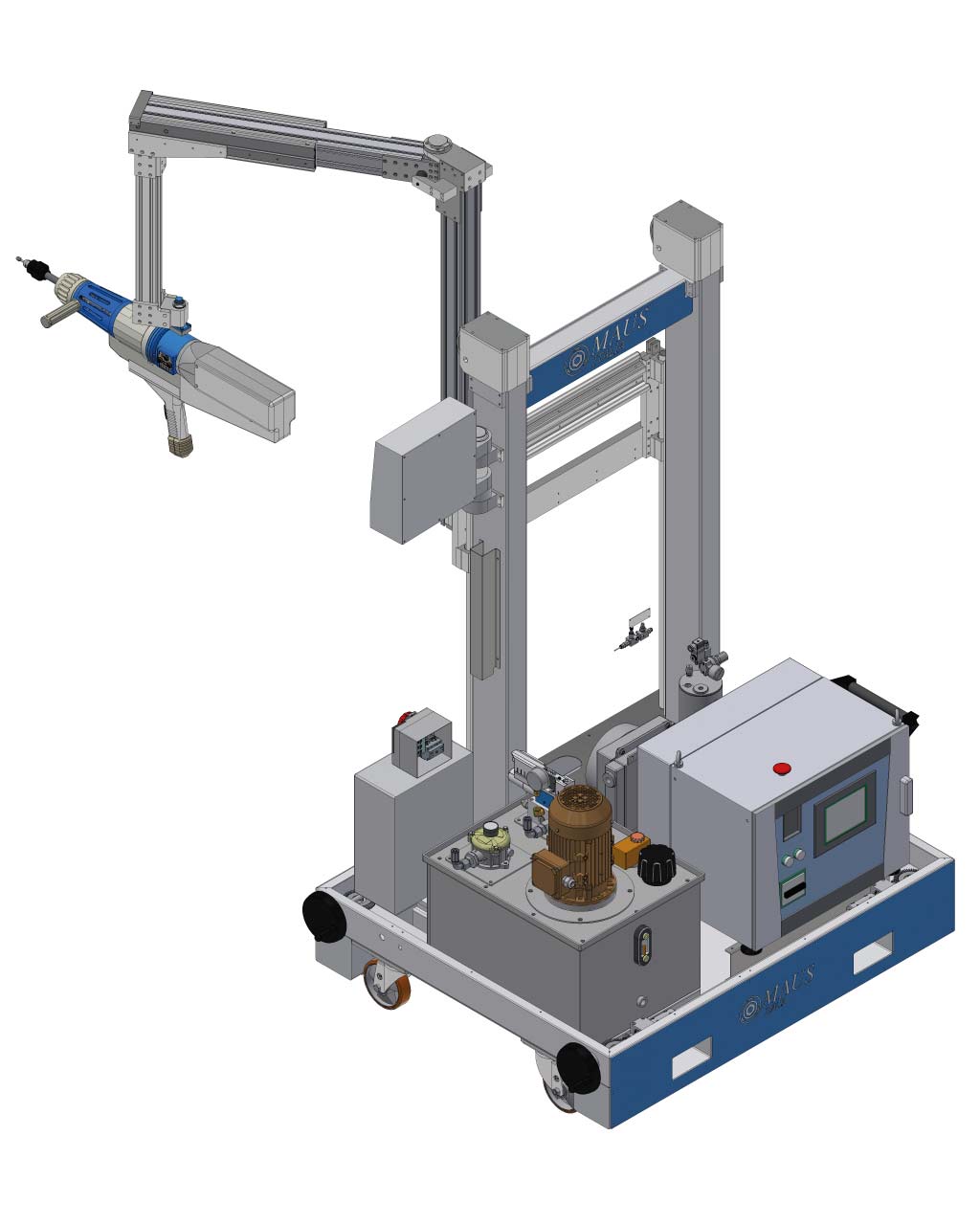

Quadrol MRP-EH is composed by:

• PLC digital control system with remoted video display installed on trolley
• Hydraulic unit with cooling fan
• Tube expander pneumatic integrated lubrication system
• Rolling head

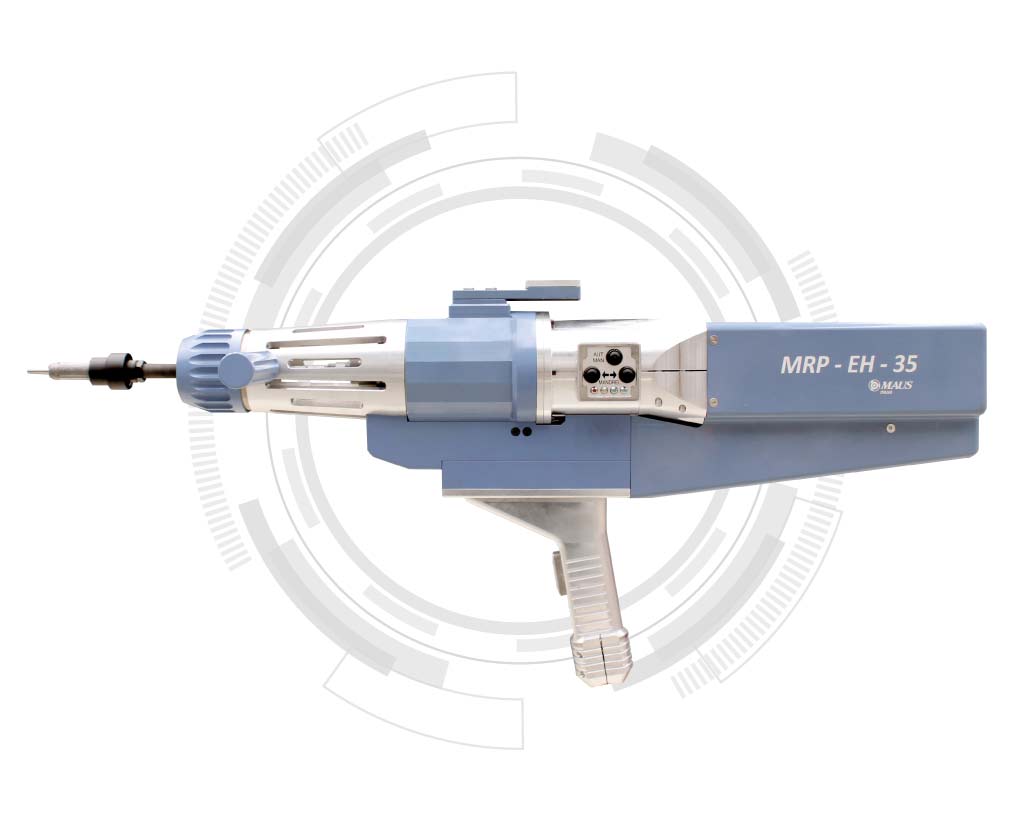

Innovativerolling head MRP-EH-35

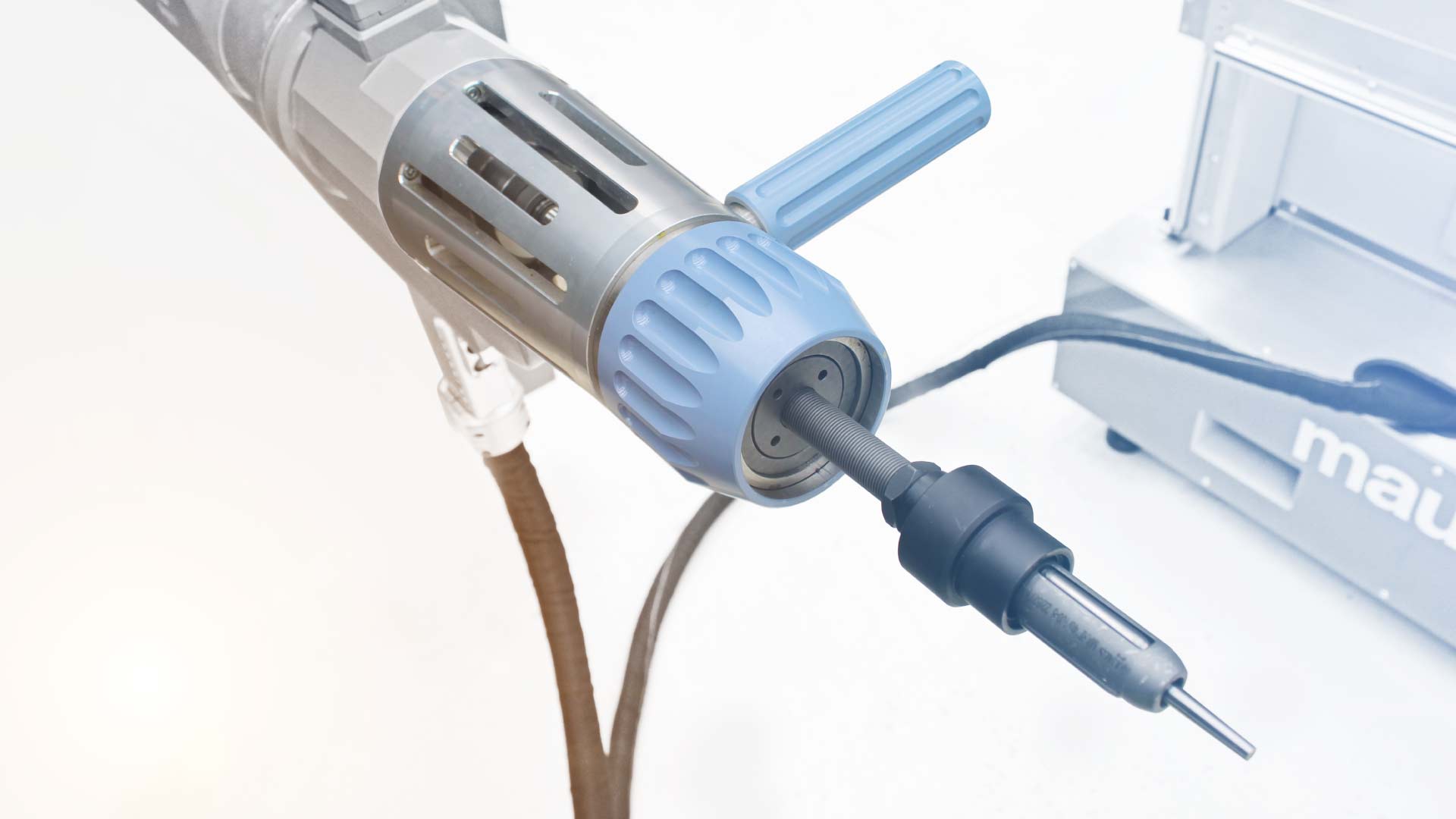

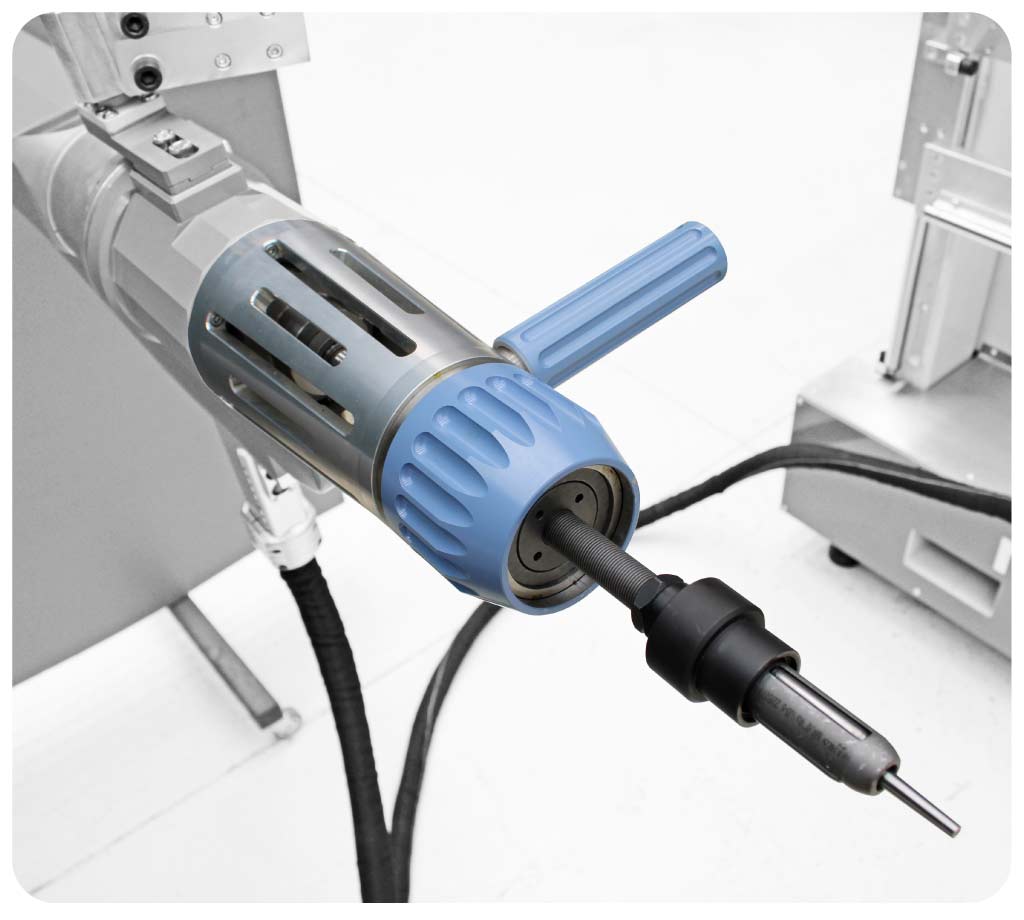

The new MRP-EH rolling head is composed by:

• brushless rolling motor
• hydraulic cylinder
• linear sensor for mandrel position
• remoted control buttons for start/stop expansion cycle
• quick adapter for tube expander connection
