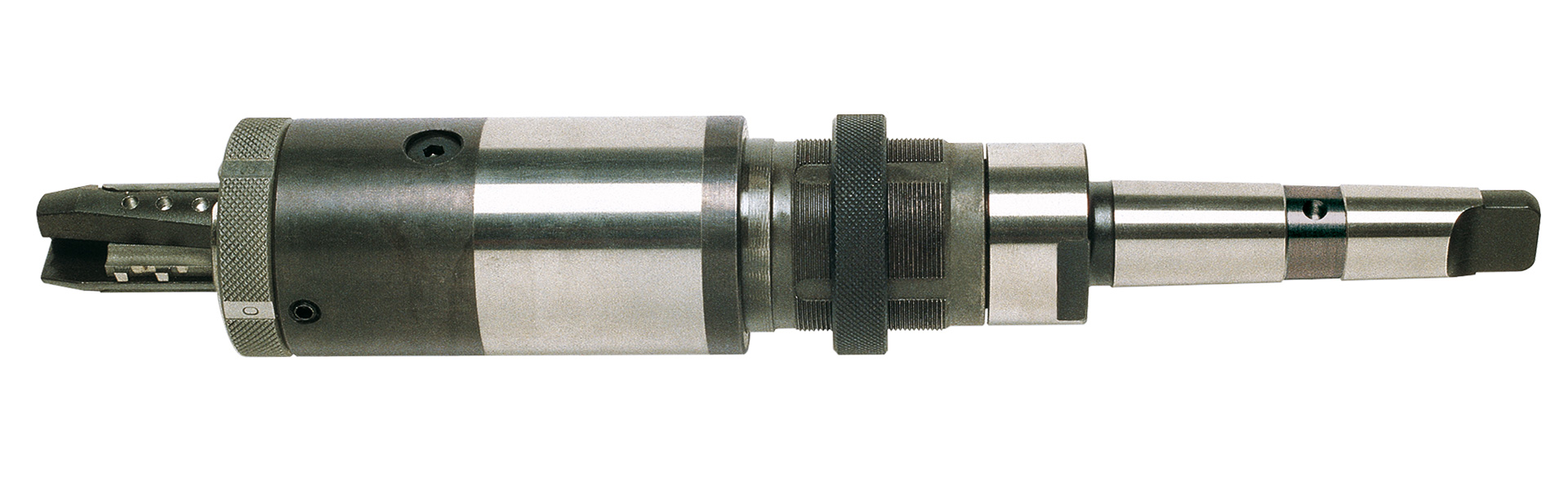

F/26 - Self-centering grooving tool with adjustable depth (B) and interchangeable HSS-Co-blades
The F/26 self-centering grooving tool is used for creating grooves in tubesheet holes up to a standard adjustable B depth from 1 to 12 mm ( from 0.04" to 0.47" ). Special tools are manufactured to increase the cutting depths up to 300mm ( 11.81" ), the depth can be easily reached with the supplied extension kit Manufactured with coolant holes to allow the passage of coolant through the tools, the F/26 is used on radial drills and programmable drilling machines. Completely designed and manufactured by Maus Italia with high quality materials, the F/26 is available in different sizes for tooling of holes with diameters ranging from 9.75 to 51.50mm ( from 0.384" to 2.028" ).

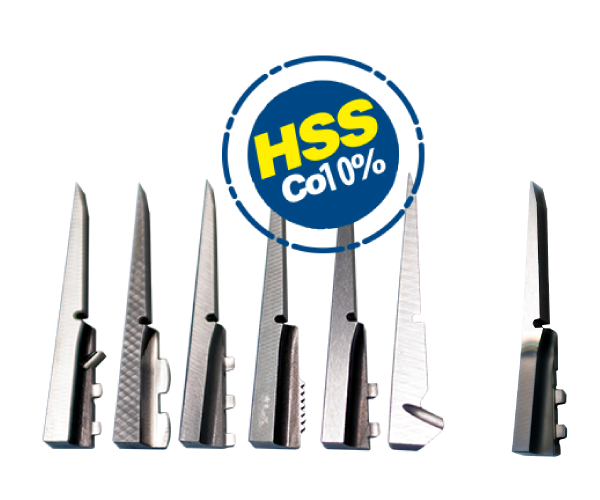

The F/26 self-centring grooving tools have interchangeable HSS-Co 10% blades in three different sizes for performing multiple tooling operations. The distances between the blade and the number of cutting teeth can be customized.

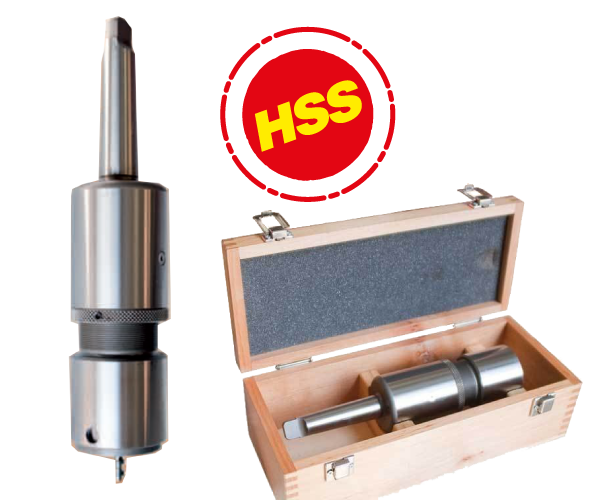

Universal fixed-depth grooving tool for tubesheet holes with diameter from 7 to 30 mm ( from 0.276" to 1.181" )
The F/112 is an universal grooving tool, designed and manufactured by Maus Italia using high quality materials for the simultaneous creation of one or more grooves in the tubesheet holes. Using a Morse Taper No, the F/112 is used on radial drills and programmable drilling machines for tubesheet holes with diameters between 7 and 30mm ( between 0.276" and 1.181" ). The F/112 uses centering rings and special tools made by Maus Italia.

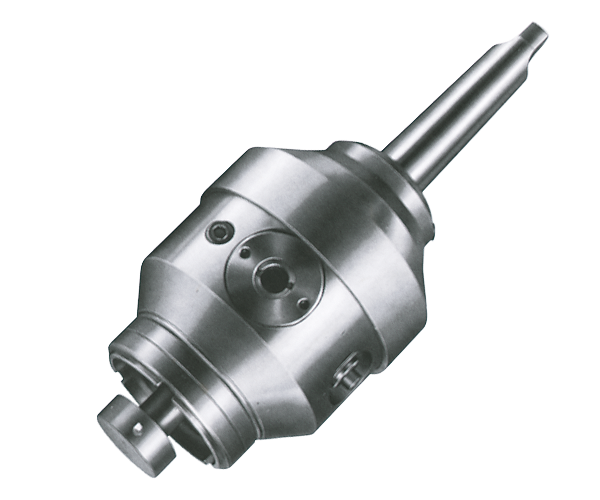

Fixed-depth universal grooving tool for holes with a diameter up to 120 mm ( 4.274" )
Universal tools for the creation of one or more grooves in tubesheet holes from 15 to 120mm ( from 0.591" to 4.274" ) in diameter – Seeger ring seats, or rings, drains, etc. Entirely made from special cemented, tempered and hardened NiCr steel, it comes equipped with a Morse taper No. 4. for mounting on radial drills, parallel lathes (on the mandrel or tailstock), boring machines, milling cutters and operating machines in general The F/120 is particularly suitable for tooling operations on boiler tubesheets with a diameter up to 120mm ( 4.724" ). It is supplied with a self-centring ring, a tool holder and tools that have been manufactured made by Maus Italia.
