BundleTutor 1500 - Tube bundle lifting machine
BundleTutor 1500 Multi grab quick lifting machine for protecting the tube bundle during handling
Specially designed and patented by Maus Italia, the BundleTutor 1500 brilliantly solves the problem of grabbing and tube bundles lifting during handling ( production / maintenance ), while operating in total safety and eliminating the risk of damaging the baffles or crushing the tube bundle tubes.
Independents adjustable cables
Ensures compensation for any asymmetrical positioning errors of the "saddle" bands located underneath the tube bundle. The bands, together with the central jaws, ensure perfect balancing of the bundle along its longitudinal axis, preventing flections and deformations of the end portions of the tubes, caused by the weight of the projecting portions of the bundle.
Perfect positioning
BundleTutor 1500 has independent telescopic hydraulic beams to ensure balancing and adaptation of the BundleTutor 1500 to the geometry of the tube bundle.Longitudinal extension Y: +1000 mm ( 39.4" ) on each side BundleTutor 1500 has symmetrical opening and closing of the jaws relative to the axis of the tube bundle to ensure perfect centering.Transverse opening X: +600 mm ( 23.6" ) on each side

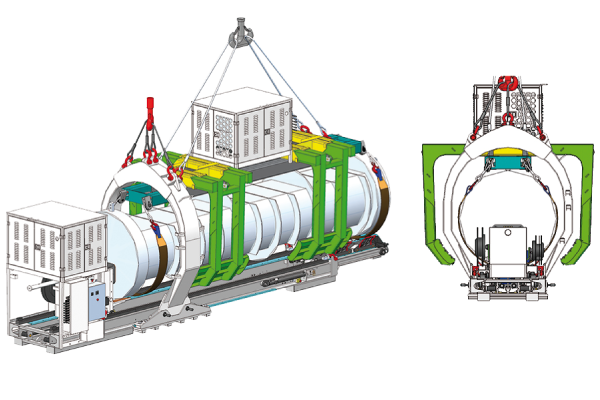

Loading onto and unloading from Mef series tube bundle pullers
The BundleTutor 1500 has been designed to be most frequently used in conjunction with the Maus Italia Mef series tube bundle puller, such as the aerial Mef Express and the independent mobile Mef Mobil in its on-shore model or off-shore ( NAVY ) model.
Special versions
Image gallery of BundelTutor 1500
Product technical datasheet
If you would like all the technical information related to this product, please download the .pdf brochureor get in contact with us directly, our qualified personnel will answer to your queries.
