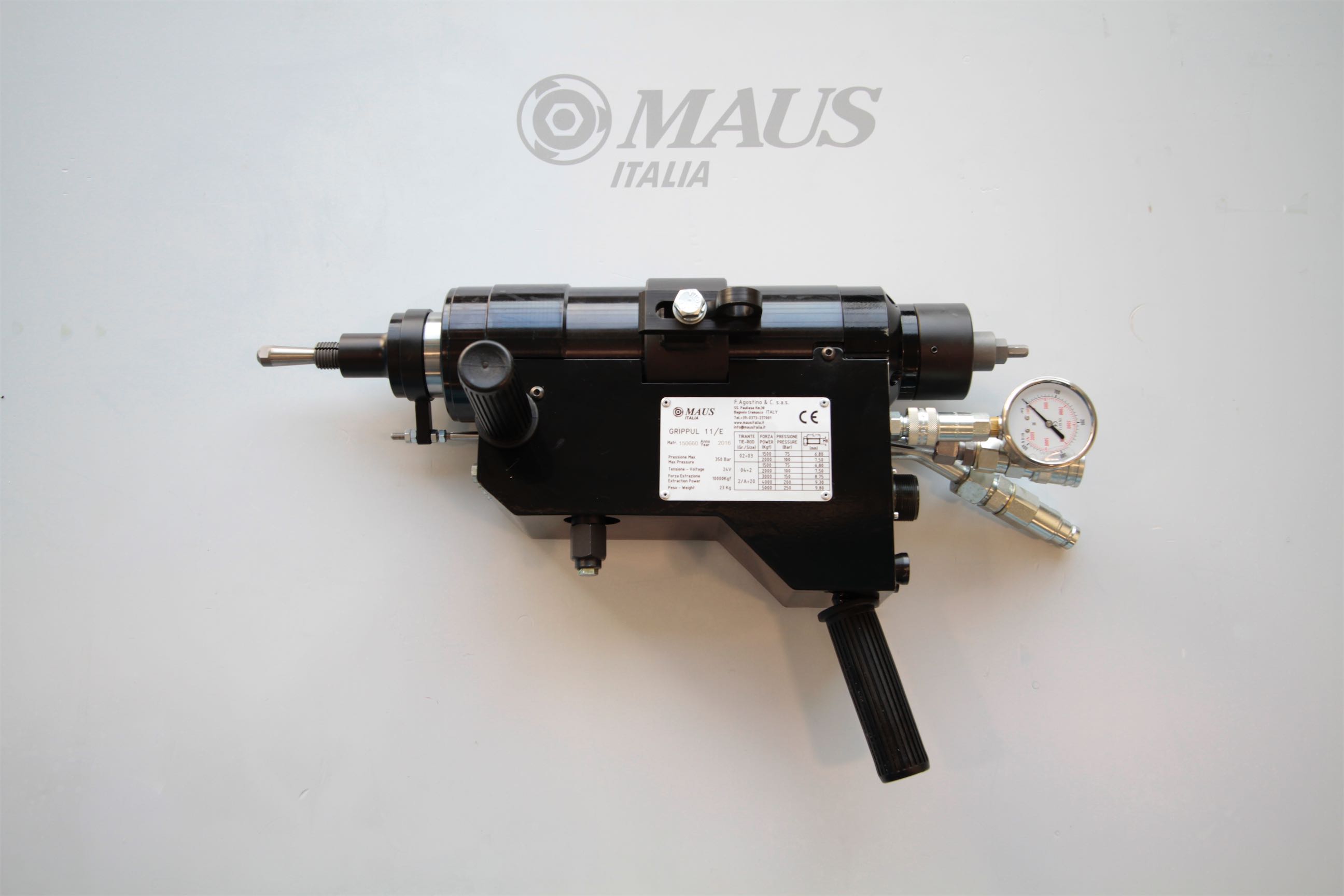

Grippul - Quick-attaching hydraulic stub puller

The Grippul series quick-attaching stub pullers are the result of Maus Italia’s more than thirty years experience in the field of tube pulling.
The Grippul comes in either electric or pneumatic models, is fitted with an integral remote control and is availabile in two models depending on upon pulling force ( Grippul 11 e Grippul 21 ).

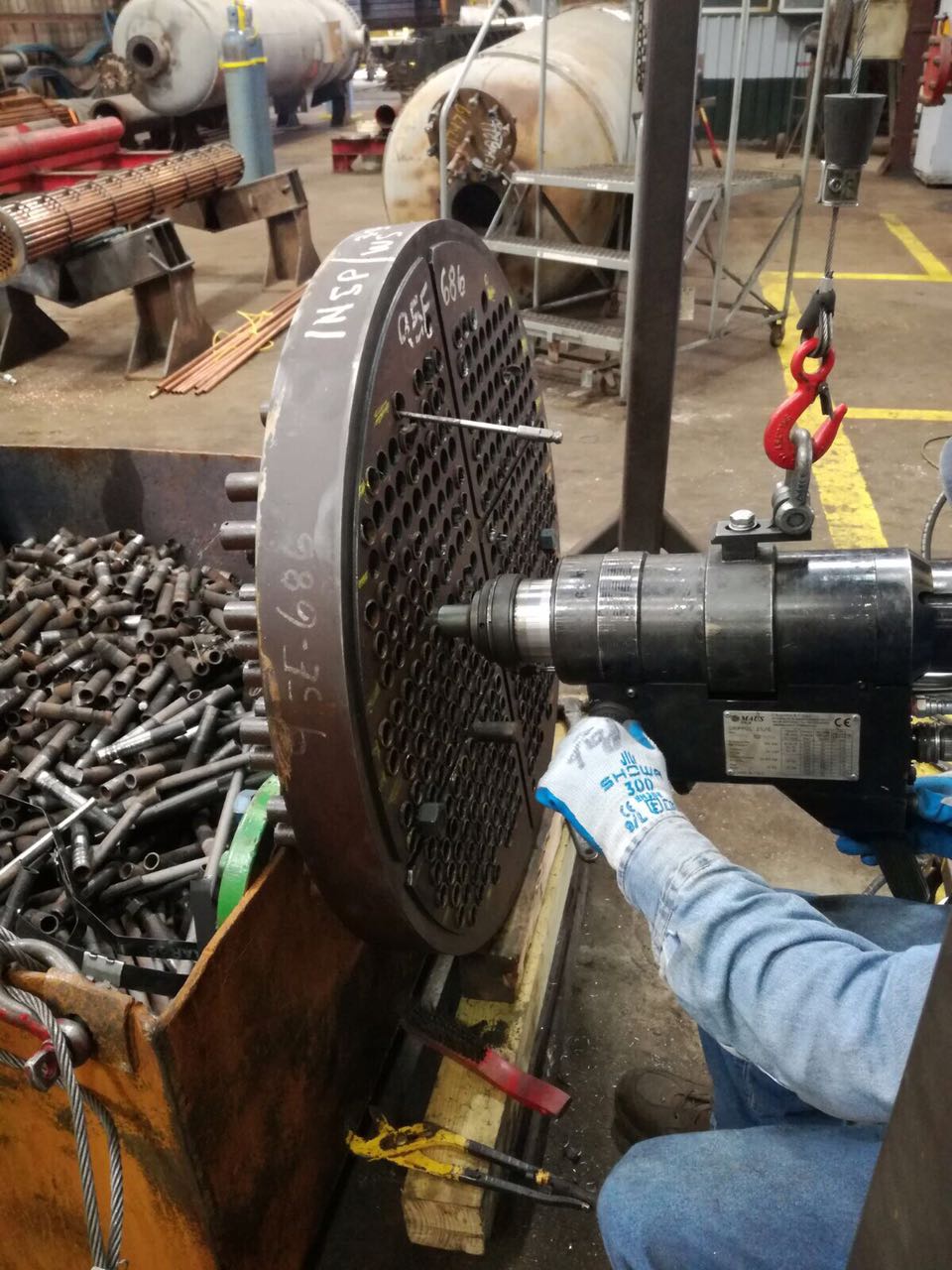

When used with the BundleCut or the Kattex, it facilitates and speeds up tube-sheet refurbishment.



Tube puller Grippul Maus Italia





Important features that make all the difference




Tube puller Grippul Maus Italia

The Grippul puller comes supplied with:



  • Grippul hydraulic extractor
  • Carrying case
  • Set of spare gaskets
  • Set of service wrenches
  • Pressure gauge
  • Instruction booklet
  • 2 No. hydraulic hoses

Tube puller Grippul Maus Italia

ABTS

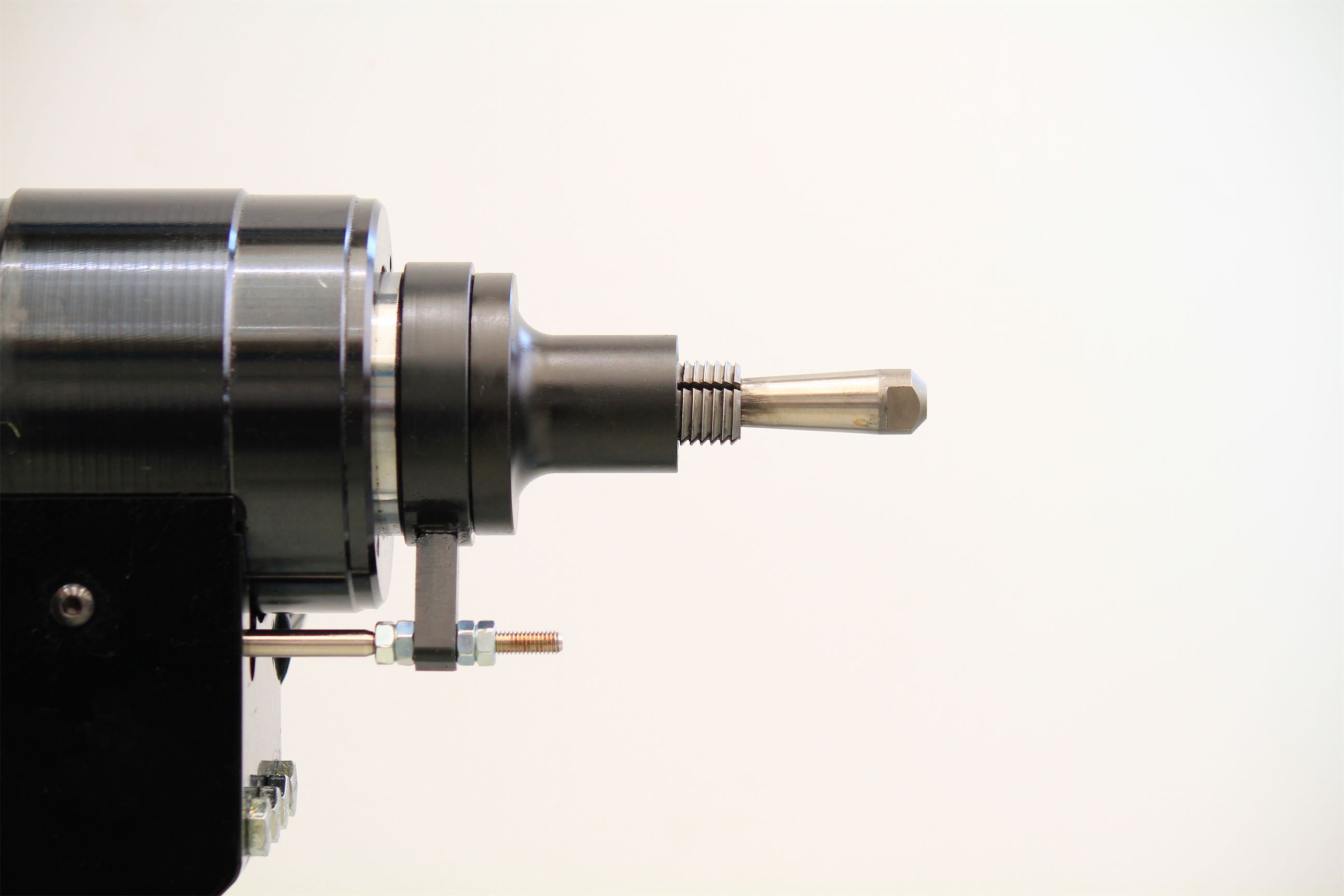

The ABTS "Anti-breaking tie-rod system" allows the force with which the jaw penetrates the tube to be regulated to suit the material and the diameter of the tube.

Tube puller Grippul Maus Italia

OPS

The OPS "OverPressure switch" cuts off the delivery of the oil when the piston reaches the end of its stroke, preventing unnecessary overpressure of the system.

Tube puller Grippul Maus Italia

RC24 Remote control

The RC24 remote control located beside the knobs facilitates and speeds up the extraction of the stubs. The remote control is on both the pneumatic and electric models.

Tube puller Grippul Maus Italia

RSR Revolving ring

The RSR "Revolving support ring", upon which the Grippul is suspended during use, allows for optimal positioning in spaces which are difficult to access.


Power unit



TP10 / TP60 HD

The Grippul puller is powered by either a semi-automatic electric or pneumatic hydraulic power unit

TP10 Power unit Maus Italia






The Grippul puller is available in two models:



Tube puller Grippul Maus Italia

Grippul 11


The Grippul 11 model, with a pulling force of 10 kN, is for tubes from 1/2" up to 1.1/2" ( from 12,70 up to 68,10 mm )

Tube puller Grippul Maus Italia

Grippul 21


The Grippul 21 model, with a pulling force of 20 kN, is for tubes from 1" up to 2.1/2" ( from 25,40 up to 63,50 mm )




Image gallery of Grippul







Product technical datasheet

If you would like all the technical information related to this product, please download the .pdf brochure
or get in contact with us directly, our qualified personnel will answer to your queries.
