Baffle flaring hole

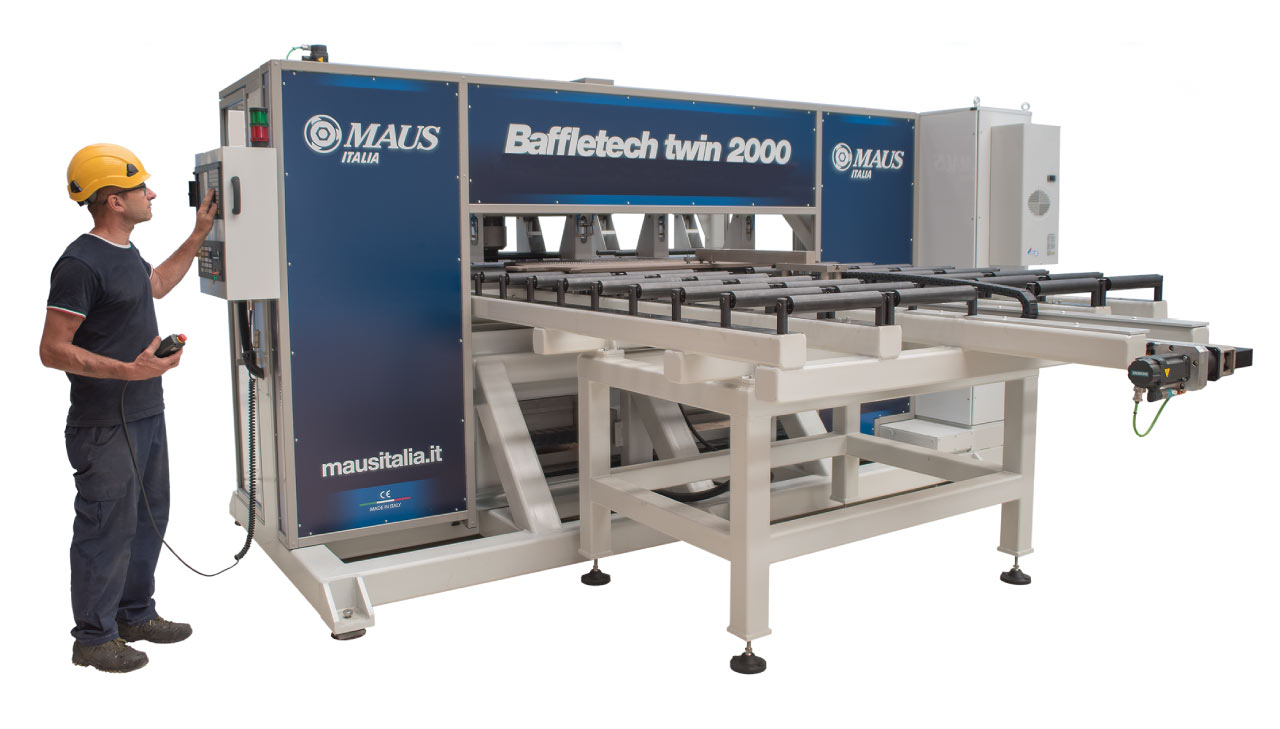

Baffletech Twin 2000
Automatic centre with double head for flaring the holes of the heat exchangers baffleMaus Italia presents the Baffletech twin 2000, another step towards a completely automated production chain in the construction of heat exchanger tube bundles.
- Baffle up to O.D. 2000 mm (78”)
Increase your production with up to 2000 holes/hour
Precise centering of the flare in relation to the axis of the hole due to the innovative self-centring mandrel tool-holder.
First of all

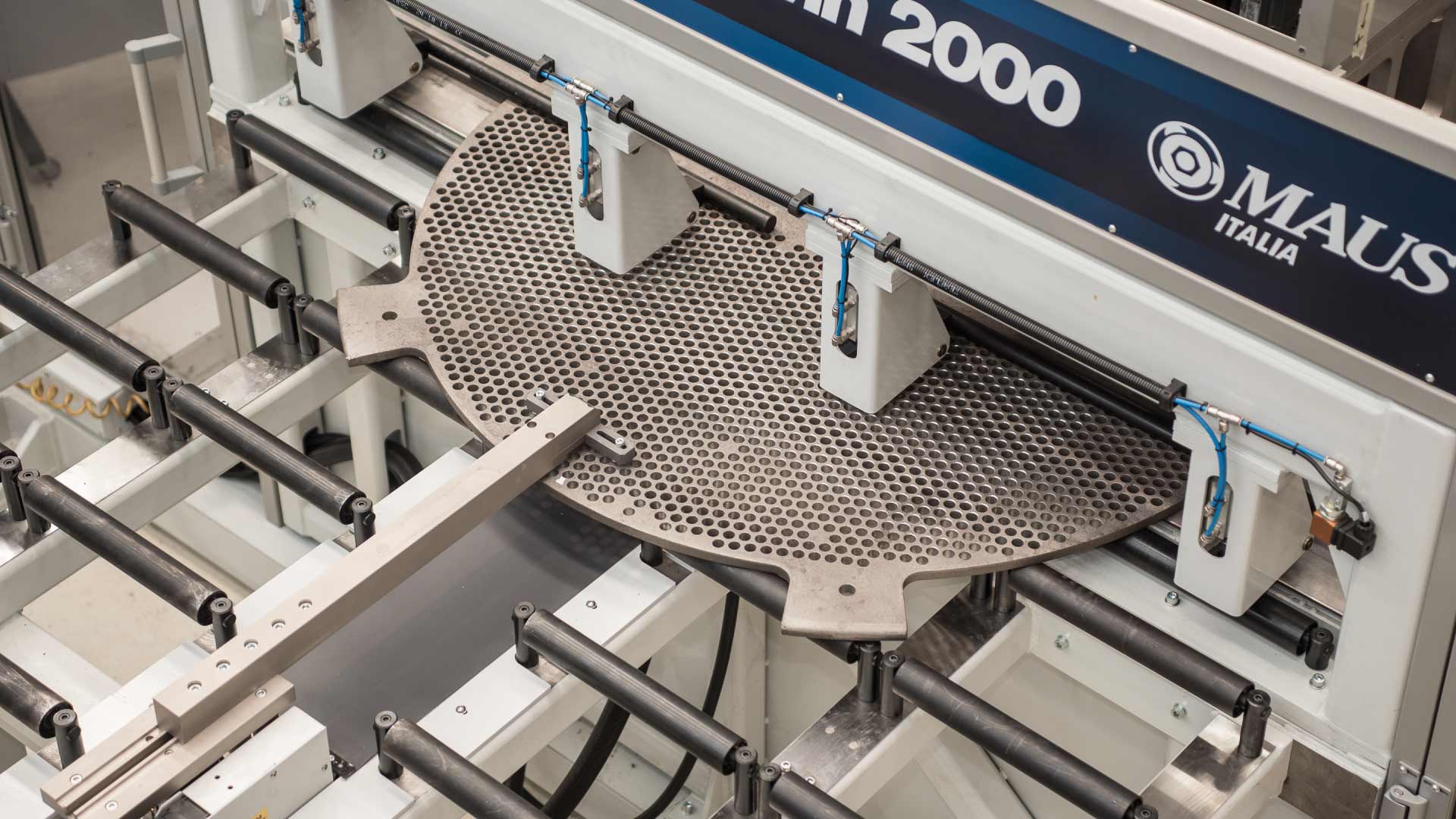

The baffle are loaded on one the side of the machine, proceeds along roller tables thanks to motored arms, which, once the flaring phase is finish, it will bring the baffle to the unloading position.
The Baffletech twin 2000, is equipped with CNC control for:
- the movement of the baffle;
- the independent positioning of the two heads;
- the movement and independent rotation of the tools.
The Baffletech twin 2000 also permits:
- a uniform depth flare thanks to the special design of the tilting head;
- precise centering of the flare in relation to the axis of the hole due to the innovative self-centring mandrel tool-holder;
- programming of the work sequence using dedicated software developed by Maus Italia
Exclusive features

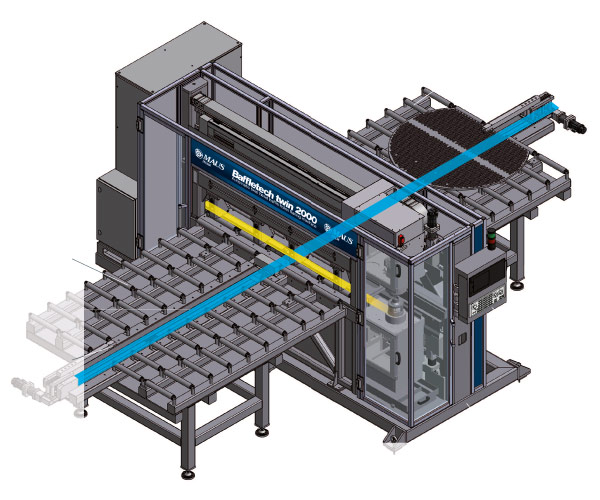

Rake system
Mounted on two mechanical arms, this is the
innovative solution offered by Maus Italia for the quick hooking of the baffle for ensuring the zero workpiece and permitting the movement of the baffle.
Flaring

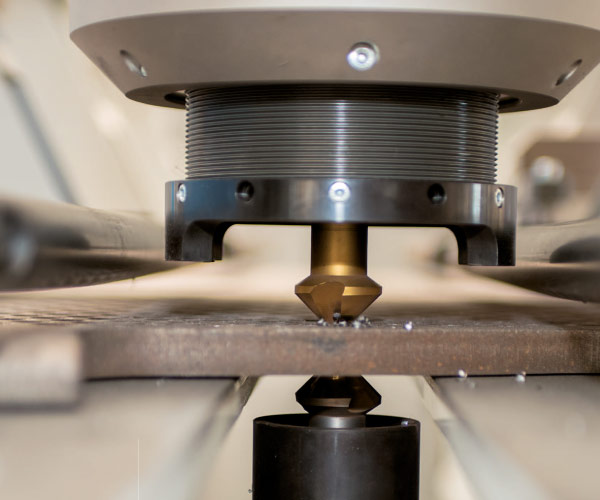

The two thrust collars mounted on the opposite heads will position against the baffle while the two flaring tool will execute the flare according to the machine program. The flaring of the holes is perfectly centered and it is always at an equal depth thanks to the zero-set of the tool. The row of holes is rapidly machined on both sides with the transverse movement of the two independent heads.
Structure
Frame structure (central frame and two
side rollers tables) in normalised electro-welded steel with high rigidity and vibration absorption characteristics. Each component has been entirely designer by Maus Italia technical staff in a virtual environment before being manufactured.
