Stub extraction

Grippul

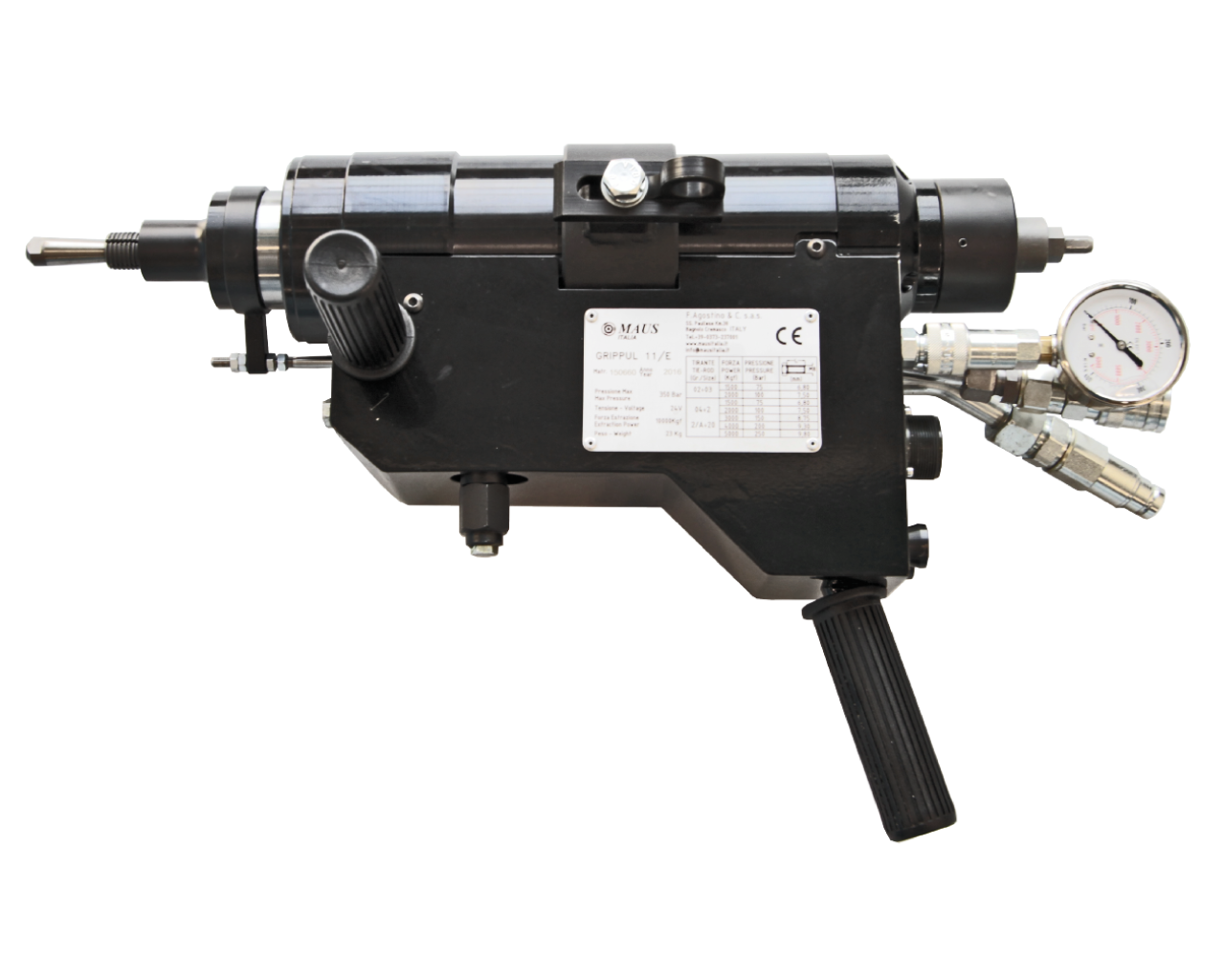

Quick gripping and extracting hydraulic stub puller

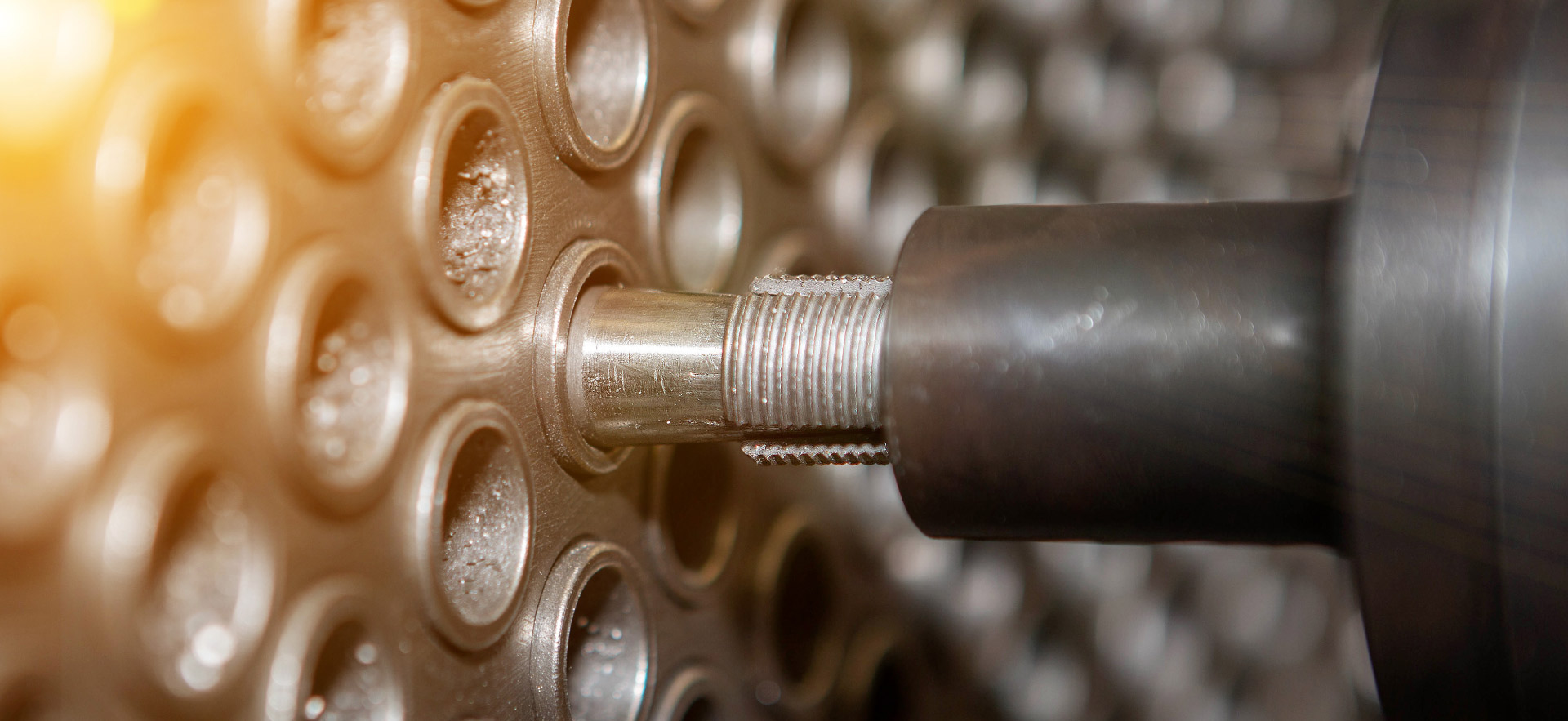

The quick gripping stub pullers of the Grippul line are the result of more than forty years of experience in tube extraction gathered by Maus Italia. Grippul was designed and manufactured for quick extraction of stubs from tube sheets.

Grippul, electrically or pneumatically operated versions, is equipped with remote control and it is available in two models depending on the extraction force (Grippul 11 and Grippul 21). In combination with BundleCut or Kattex, it facilitates and speeds up the recovery of tube sheets.

Very quick: from 4 to 6 extractions per minute
Electric and pneumatic version

Download catalog

The Anti-Breaking Tie-Rod System allows the force with which the jaw penetrates the tube to be regulated to suit the tube’s diameter and the material of witch it is made

Maximum extraction force 10000 Kg / 22000 lb with Grippul 11 and 20000 Kg / 44000 lb with Grippul 21

Electric and pneumatic version

High quality and flexible

Features that make the difference

Each component was designed according to the most modern and up-to-date technology, especially by analysing the continuous feedbacks we receive from our demanding customers.

ABTS

The Anti-Breaking Tie-Rod System allows the force with which the jaw penetrates the tube to be regulated to suit the tube’s diameter and the material of witch it is made.

OPS

The Over-Pressure Switch cuts off hydraulic fluid delivery when the piston reaches the end of its stroke, preventing unnecessary overpressure in the system.

RC24

The RC24 remote control beside the knobs simplifies and speeds up stub extraction. In the electric version it is powered at low voltage 24 Volts.

RSR

The Revolving Support Ring on which the Grippul is suspended during use, allows optimal positioning in the tightest spaces.

Semi-automatic power units

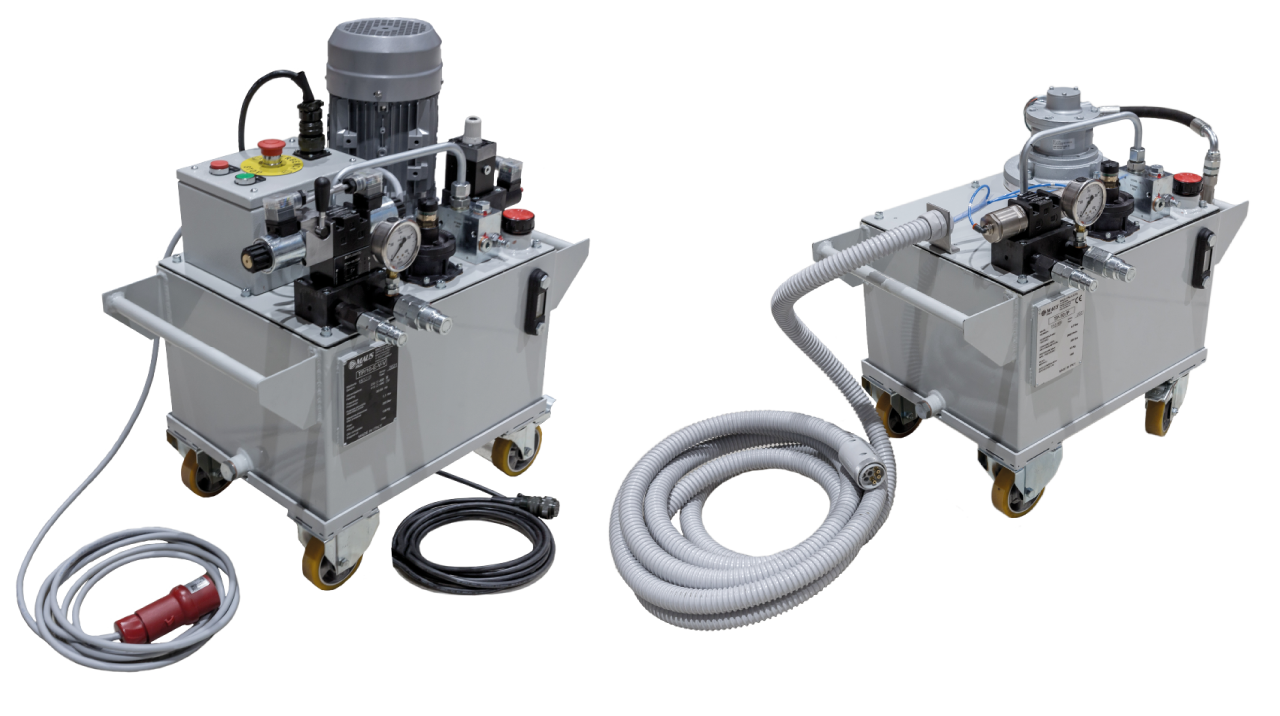

TP/10

Maus Italia TP/10 series Hydraulic Power Units, electrical or Pneumatic driven, are recommended for the use of Grippul
