F/703

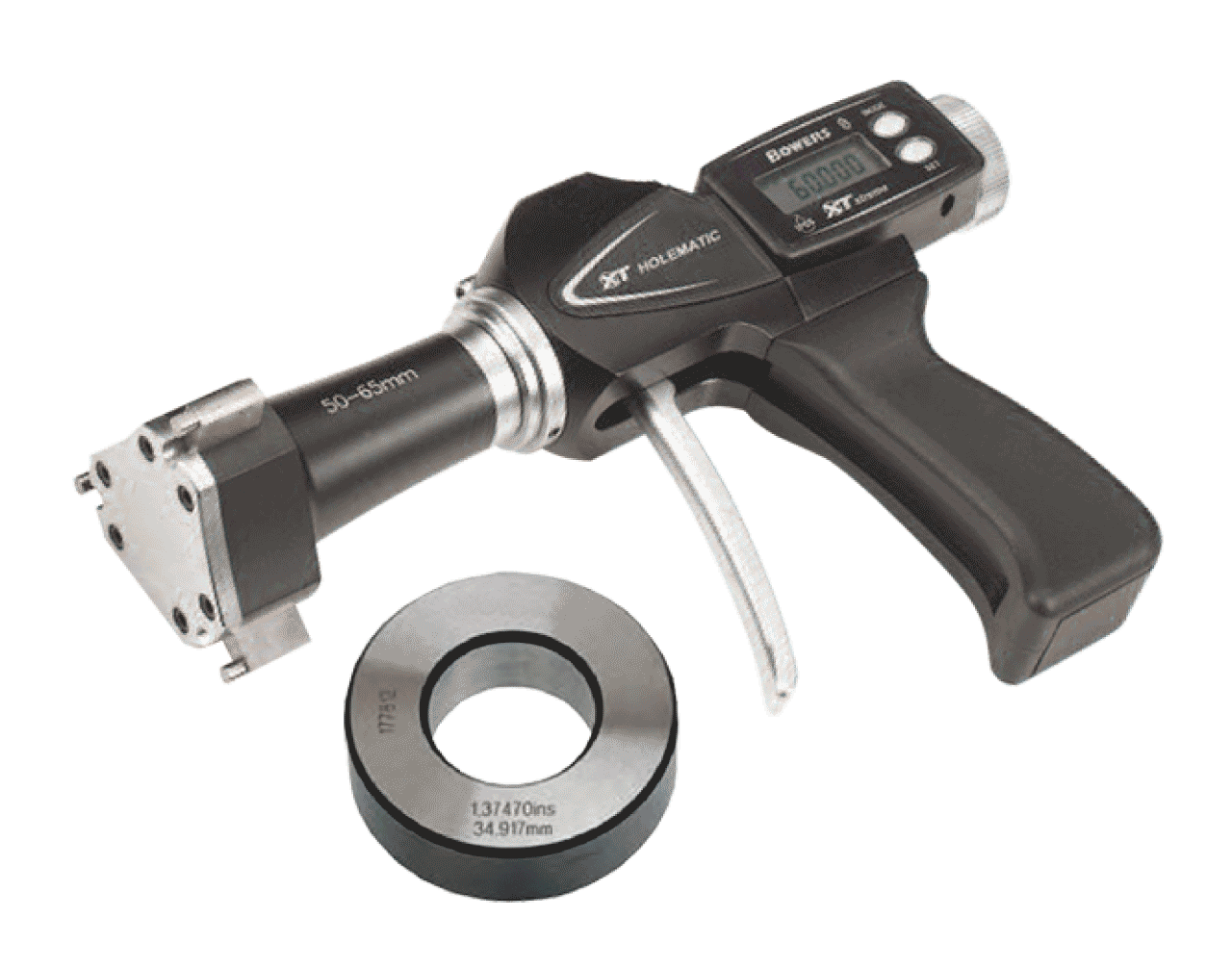

Internal quick digital micrometer, 3 contact points for work requiring certification

Internal digital micrometer (resolution 0,001 mm) with large LCD display and 3 contact points, suitable for series testing, as it certifies the work that has been carried out, outputting the measured data report (tube sheet holes and tube i.d. before and after expansion).
The quick activation F/703 model is dust and splash resistant and features a high degree of protection (IP65).
High-end digital model, featuring a practical gun handle for measuring head activation.

• F/703-1 Model

Diameters ranging between 6,0 and 20 mm (0.236" to O.787”)
depths of up to 62 mm (2.44"), without extensions

• F/703-2 Model

Diameters ranging between 20,0 and 50 mm (O. 787" to 1.968”)
depths of up to 80 mm (3.15"), without extensions

Download catalog
