Highest quality and wear resistance
Tubesheet preparation tools

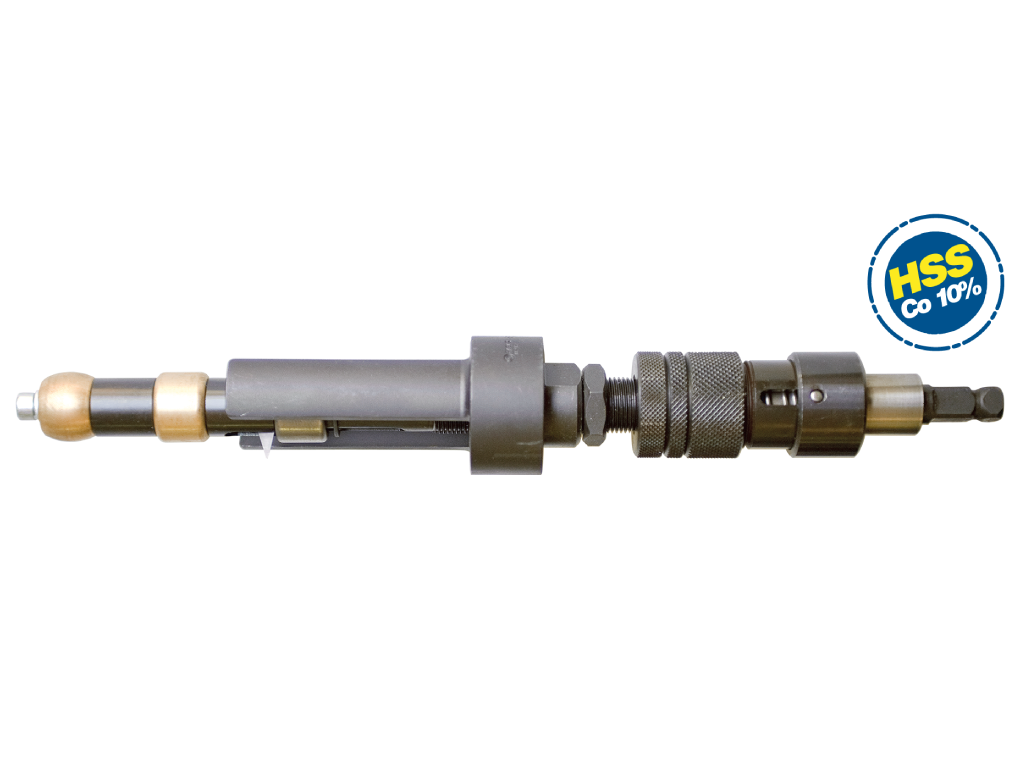

F/796
Motorised tube cutter to remove excess section from tubesUsed in the manufacturing of new tube sheets, it solves the problem of the total removal of excess tube protrusions, up to 70 mm (2.756”). This tool is designed to be used before the traditional portable milling cutters, significantly reducing process times and tool consumption.
F/796 is inserted into the tube until it stops on the tube sheet; the stopping point is defined by the adjustable thrust collar. A rotating blade is gradually pushed on the tube internal wall until cutting is completed.
The tool is driven using a portable electric or pneumatic motor.
The HSS blades are coated with Titanium Aluminium Nitride - TiAIN
- tubes with diameters ranging between 1/2” and 1.1/2” (12,70 to 38,10 mm)
F/751R
Rotating bell tube end facing milling cutterF/751R, with right hand cutting, is used after expansion, to face the second sheet tubes to the same protrusion (also suitable for finishing). The rotating bell protects the tube sheet surface against marking during the process.The tool is selected according to the outer diameter and thickness of the BWG tube; associated to it is a steel rotary guide bush (not included, to be ordered separately according to the specific requirement).
- HSS cutting edges

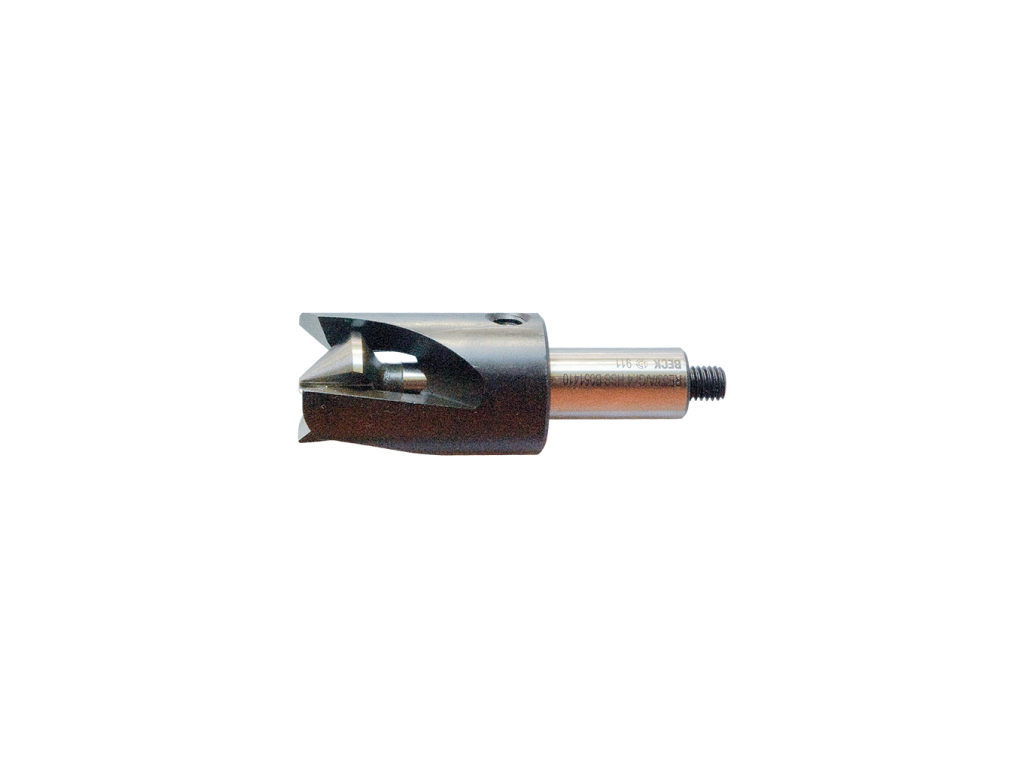

F/753
Adjustable combined milling cutter for simultaneous deburring/chamfering of tube outer and inner diametersThe F/753 with right hand cutting, is a combination of two tools for simultaneous deburring and chamfering of the tube externally and internally at 90° by using 3 cutting edges.
The tool is selected according to the external and internal diameters of the tube.
MBOS 16-2
Portable electric drill- Mechnanical 2 speed gear
- Electronic regulator of the rpm for optimal cutting speed
- Optimal control with ergonomic grip and supplementary grip
MOF
Portable penumatic drill- With morse Tape shank
- Two model available: MOF 20R and MOF 3R / Each models are reversible
