F/20

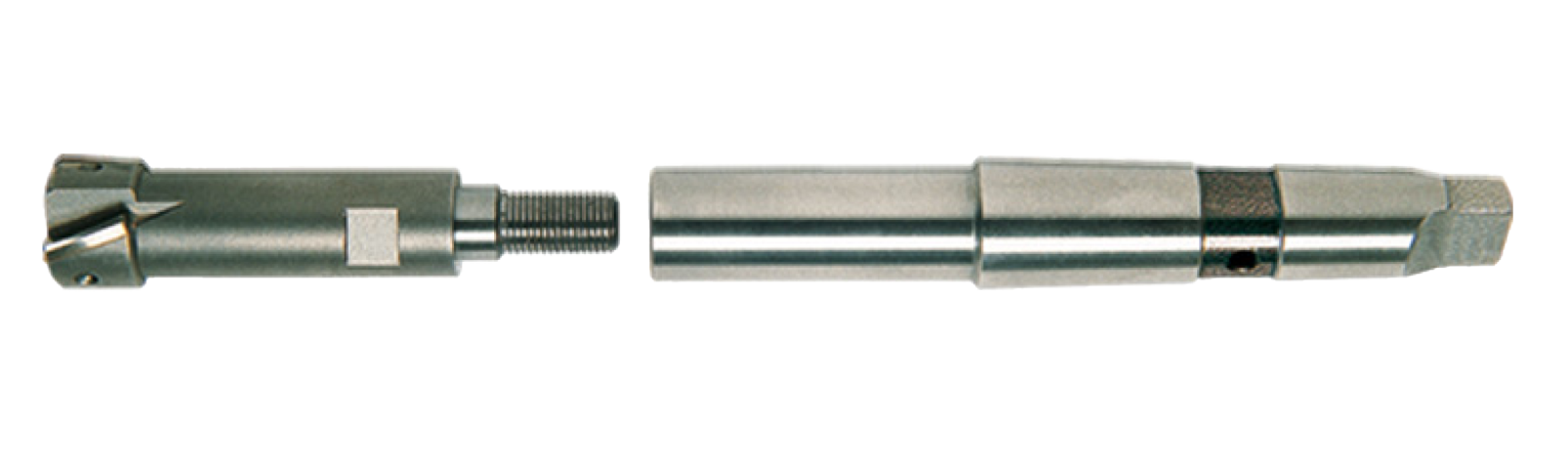

Reamers with Tungsten carbide inserts

Complete series of reamers for tubesheet holes with Tungsten carbide inserts and channel for coolant flow.
Made with high quality materials and having a ISO h8 tolerance, the reamers are supplied with a Morse taper shank connection.
They are built of in two modular parts for a significant reduction in production costs. The cutting inserts are installed geometrically at the end of the F20-BDY body to optimise the cut according to the size of the hole.

• Holes diameter from 9,75 to 51,50 mm ( from 0.384" to 2.028" )
• Depth up to 195 mm ( 7.677" )
• F/20s, customised for size and number of cutting edges, are available upon request
