R/41 Series
Tube expanders for heat exchangers and boilersAdjustable depth tube expanders for boilers and for heat exchangers with thick tubesheets
- Tubes with external diameter from 1.3/4" to 3" (from 44,4 to 76,2 mm)
- Adjustable depth from 1" to 4" (from 25,4 to 101,6 mm)
- Roller length from 2.44" to 2.67" (from 62 to 68 mm)
R/41/125 Series
Tube expanders for heat exchangers and boilersAdjustable depth tube expanders for boilers and for heat exchangers with thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 2" to 5" (from 50,8 to 127,0 mm)
- Roller length 2.1/4" (57,1 mm)
R/41/180 Series
Tube expanders for heat exchangers and boilersAdjustable depth tube expanders for boilers and for heat exchangers with thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 1" to 7" (from 25,4 to 177,8 mm)
- Roller length 2.1/4" (57,1 mm)
R/41/260 Series
Tube expanders for heat exchangers and boilersAdjustable depth tube expanders for boilers and for heat exchangers with thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 3.1/8" to 10.1/4" (from 79,4 to 260,4 mm)
- Roller length 2.1/4" (57,1 mm)

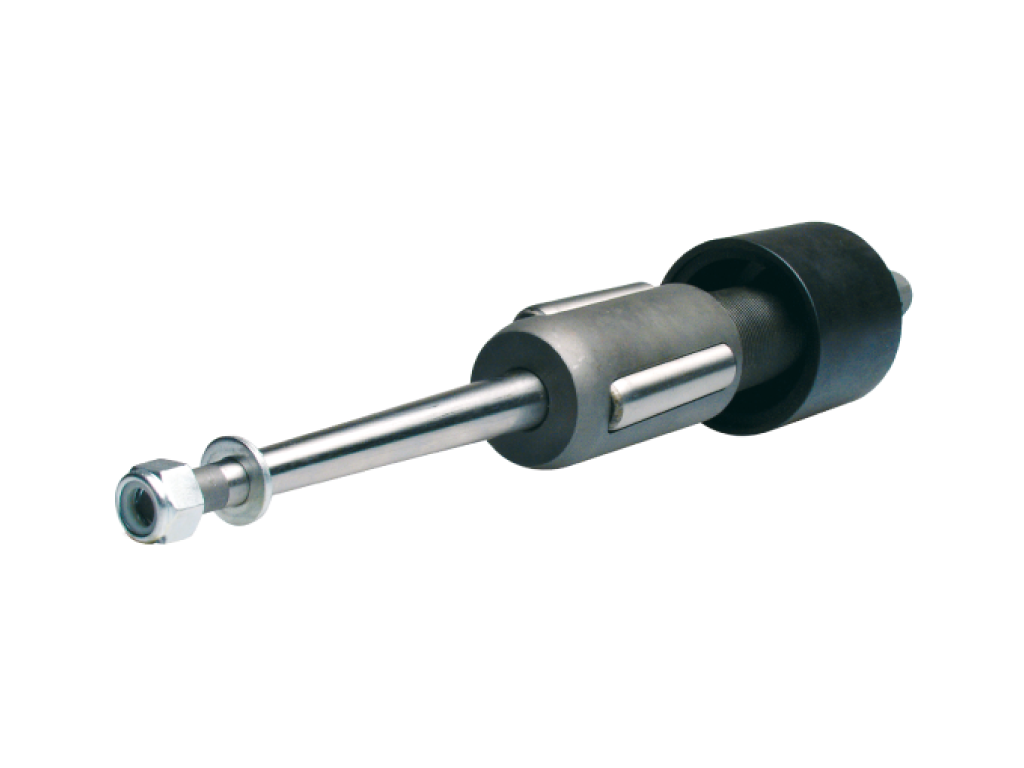

R/41/360 Series
Tube expanders for heat exchangers and boilersAdjustable depth tube expanders for boilers and for heat exchangers with thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 7" to 14.1/4" (from 177,8 to 362,0 mm)
- Roller length 2.1/4" (57,1 mm)
