Quadrol Matex

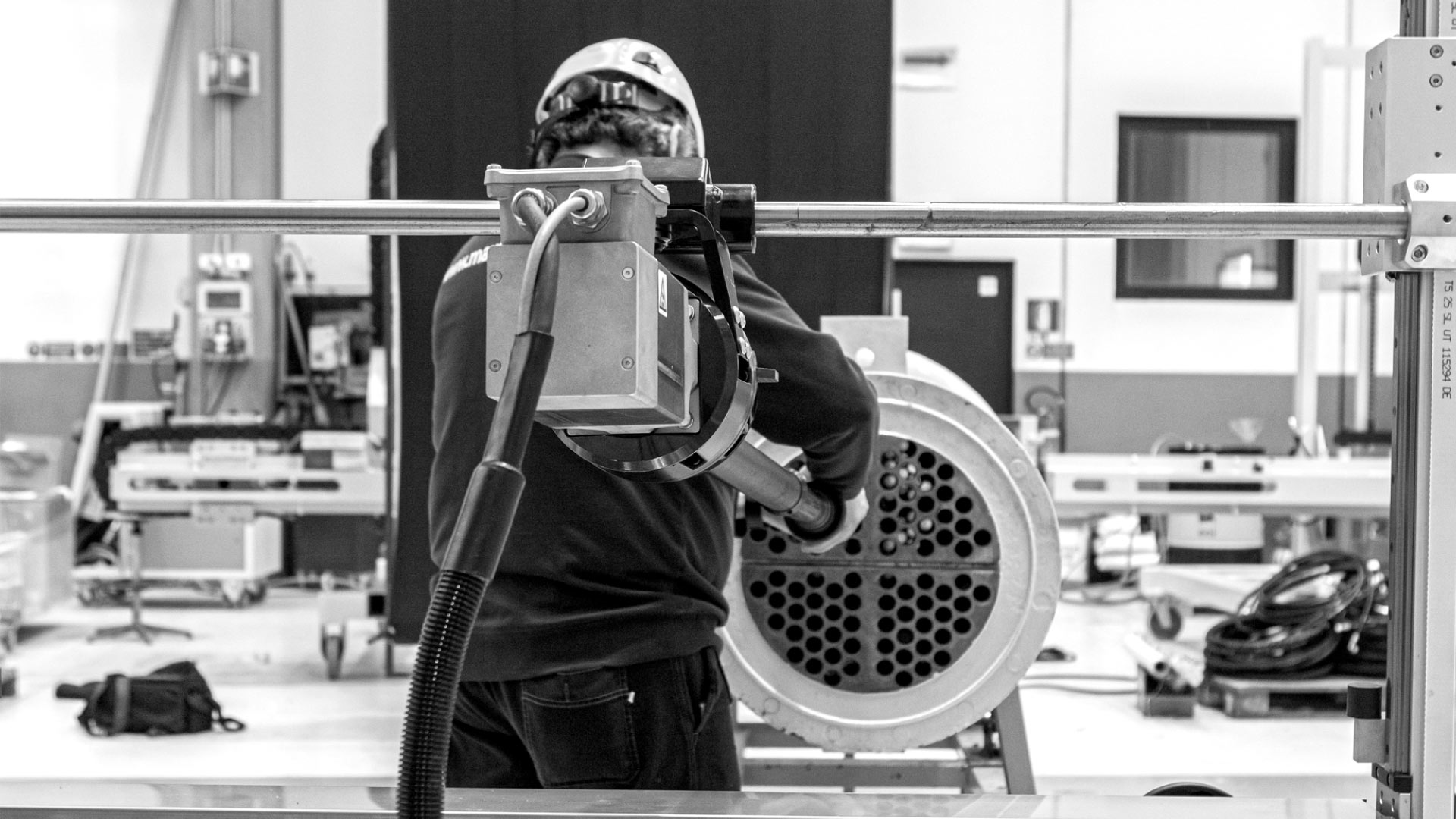

The Quadrol Matex system is intended for heavy-duty use and is recommended for the serial production of heat exchangers where the power and maneuverability of its tools significantly reduce production times.

The Quadrol Matex system, dedicated to demanding users, is recommended for the production of medium-big heat-exchangers where tool power and manoeuvrability sensibly reduces production times.

• For tubes with diameter from 3/8” up to 3” (from 9,52 up to 76,20 mm)
• Heavy-duty
• Torque-based speed continuous variation

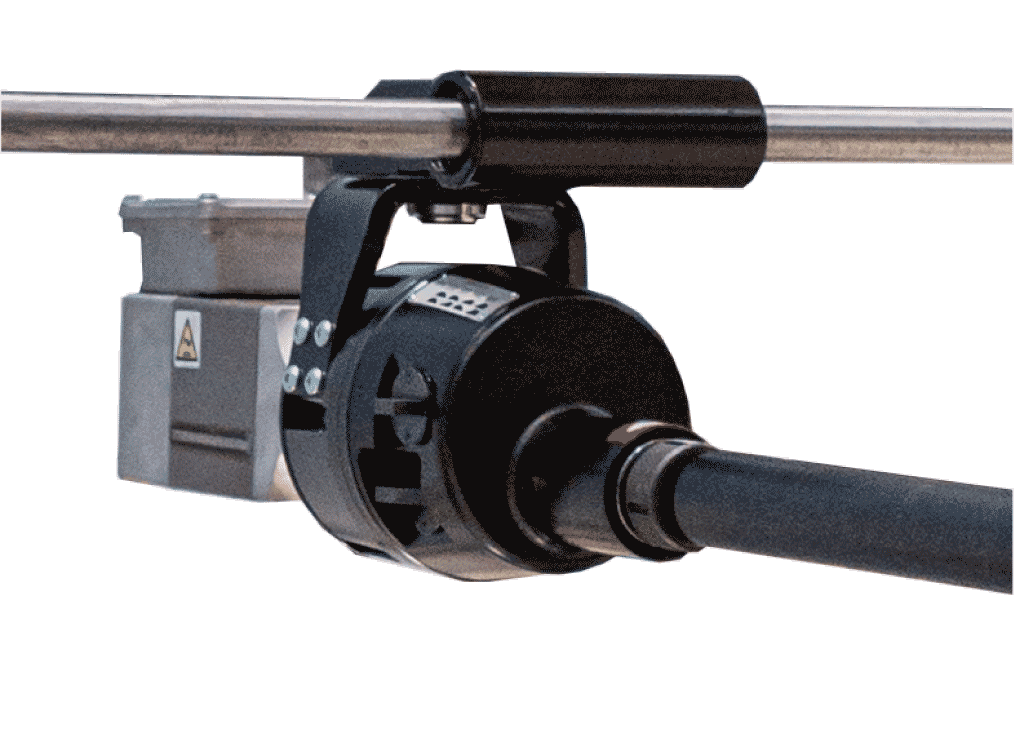

Electric rolling motor

Robust and silent with a low-voltage (48V) variable speed brushless motor and integrated suspension, the R Series rolling systems have been specifically designed for:

• Considerable increase in sensitivity
• Continuous speed variation
• Flexibility of use

Low-voltage tube rolling systems satisfy the strict safety regulations for portable equipment on work sites where there are large metal masses.
With their mechanical 4 speed gearbox, the Matex R L4 and Matex R V4 can optimize the speed range according to the parameters of the job (for tooling specifications, please consult the technical data sheet at the bottom of the page).

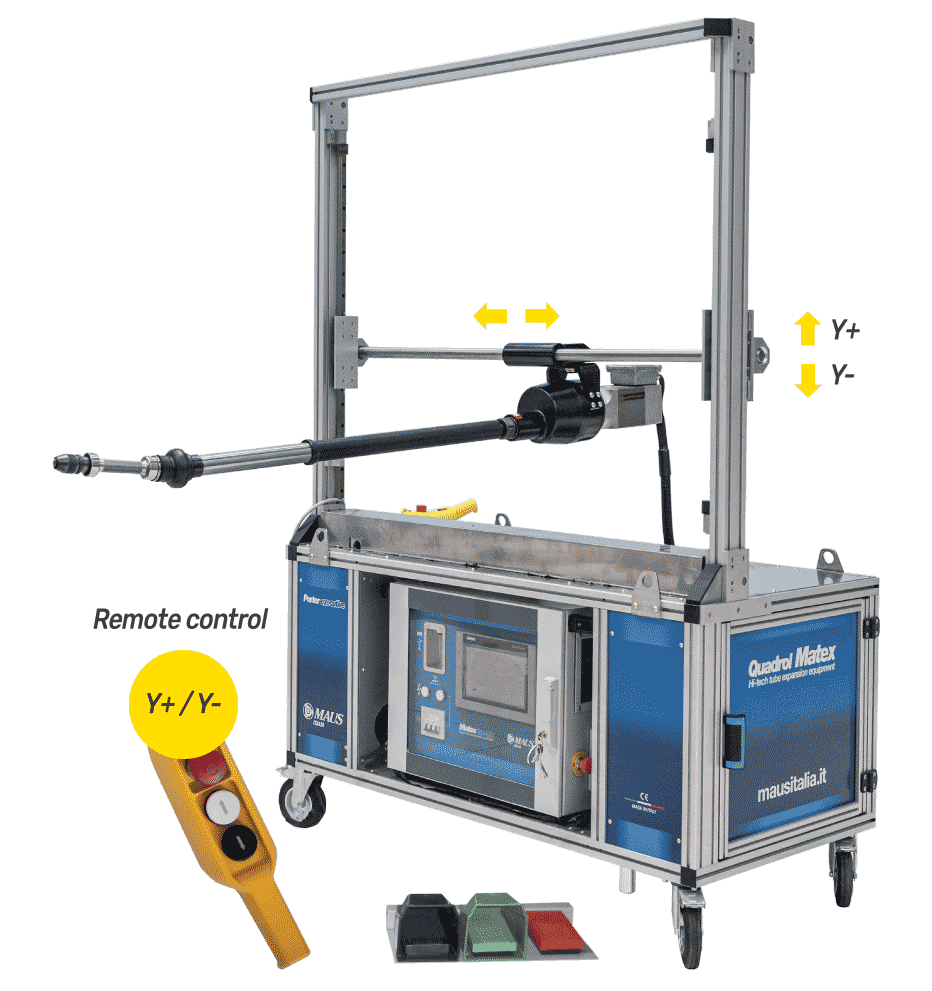

Porter trolleys

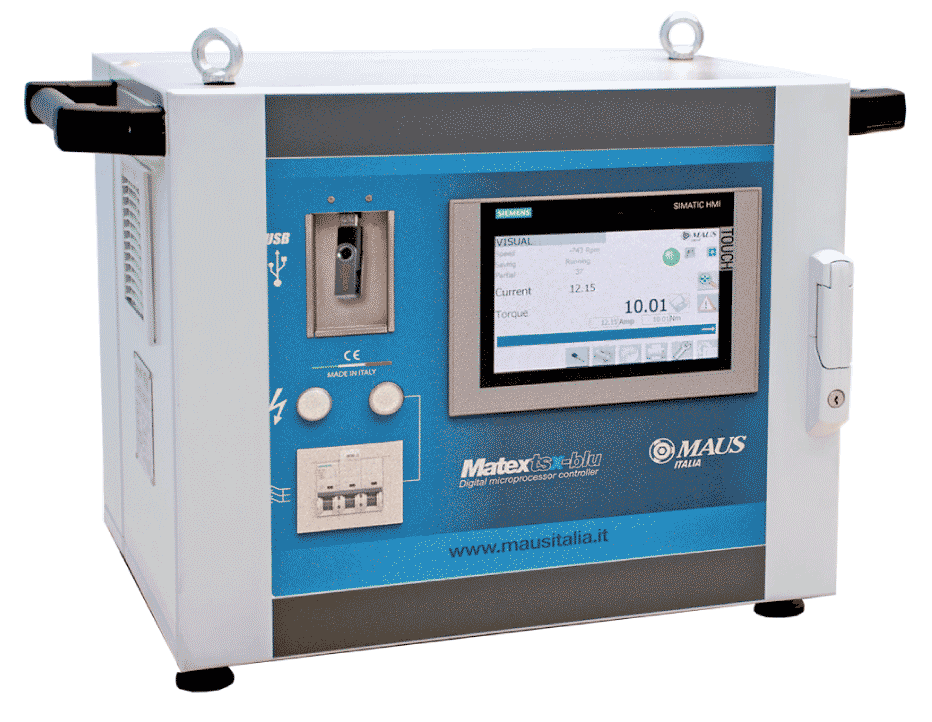

The Quadrol Matex System includes the Matex tsx-blu digital controller with microprocessor ( with continuous torque-based speed variation ), the electric rolling motor Matex R V4 or R L4, the F/308 HS telescopic shaft, which is the part of the system that will transmit the torque from the expander to the exclusive Porter trolley.
The Porter trolley is available in two different models:

• The PLUS model - with manual movement on the Y axis
• The EXECUTIVE model - with continuous power-assisted movement on the Y axis
