Masterol - Range of pneumatic torque-controlled right-angle tube rolling systems for boiler tubes up to 101,6 mm ( up to 4" )

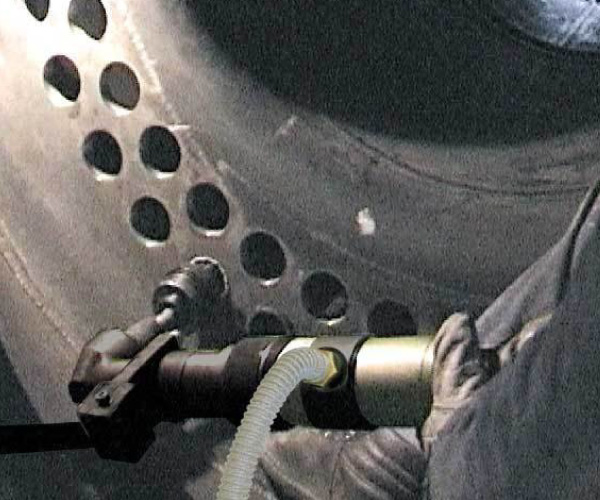

The Masterol series of pneumatic torque-controlled right-angle tube rolling systems are particularly recommended for tube rolling in boilers.

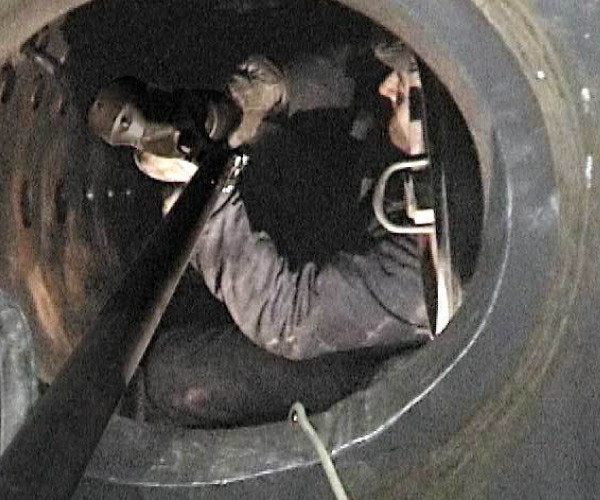

Their 360° manoeuvrability means they can be used in difficult-to-access areas.

Masterol Maus Italia

Masterol Maus Italia

Additional features of the Masterol Series



  • Aluminium construction
  • Lightweight and robust
  • Compact and easy to handle
  • Adjustable torque control with integrated automatic stop at the set torque
  • Uniform tooling guaranteed
  • Repeatability with ±3% tolerance
  • Reversible
  • Torque control independent of air pressure


Standard supply



  • Carrying case
  • Masterol pneumatic tube rolling system
  • User manual
  • F/316 quick connector
  • Lubrificator
  • Air inlet flexible tube diam. 23x13 mm / L 6 m
  • Air outlet spiral hose: L 2.5 m
  • Set of blades
  • Set of service wrenches
Masterol Maus Italia




Masterol pneumatic tube rolling system configurations



Technical specifications Masterol-180 Masterol-90
Maximum torque Nm ( Ft Lb ) 220,0 ( 162.3 ) 440,0 ( 325.6 )
Tubes diam. max ( est ) - Ferrous mm ( inches ) 57,1 ( 2.1/4" ) 101,6 ( 4" )
Tubes diam. max ( est ) - NOT Ferrous mm ( inches ) 69,8 ( 2.3/4" ) 114,5 ( 4.1/2" )







Image gallery of Masterol







Product technical datasheet

If you would like all the technical information related to this product, please download the .pdf brochure
or get in contact with us directly, our qualified personnel will answer to your queries.
