Maus Italia - Quadrol 90x
Electric rolling motor

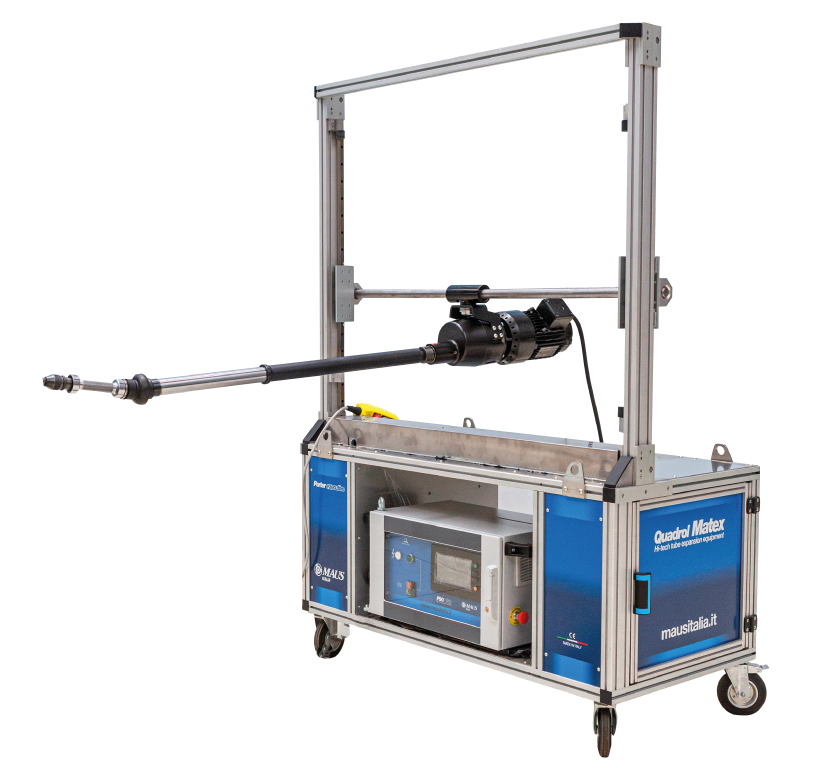

Quadrol 90x

Low-voltage electrical mobile stations for semi-automatic controlled expansion of tubes

The process of tube expansion in tube sheets using the traditional tube expander must meet quality, productivity and repeatability requirements which are essential to successfully pass the strict pressure tightness tests the tube sheets undergo in the final testing stage.

Every component has been redesigned and upgraded, using the most modern and up-to-date technologies, and above all analysing the on-going feedback from our demanding customers; the result is a durable, heavy-duty product for heat exchanger manufacturing workshops.

  • For tubes with diameter between 3/8” and 2.1/2” (between 9,5 and 63,5 mm)
  • High security
Download catalog Watch full video
Maus Italia - Quadrol 90x

Automatic speed variation according to the torque completed with a four-speed oil-bath gearbox.

Reset to zero the power consumption of the idle rolling motor showing to the operator on the display the “actual zero”.

Maus Italia experience

Innovative features

Thanks to its sixty-year experience in the industry, Maus Italia, a company which always at the cutting edge of research, has designed and manufactured the new electrical stations for semi-automatic tube expansion Quadrol90x, deriving from the Quadrol family, whose innovative solutions allow tube expansion on an industrial scale.

Self zero setting

Reset the amps drawn from the idle rolling motor showing the operator on the display the "real zero." Free so the operator from controlling the offset to the beginning of each job ensuring repeatability from the first expansion.

Anti-friction tube expander controlled release

Program the reverse rotation time to rolling during the tube expander release. It reduces abrasion of the mandrel and rolls ensuring a longer life to the tube expander.

Quadrol 90x models

Maus Italia - Quadrol 90x Standard

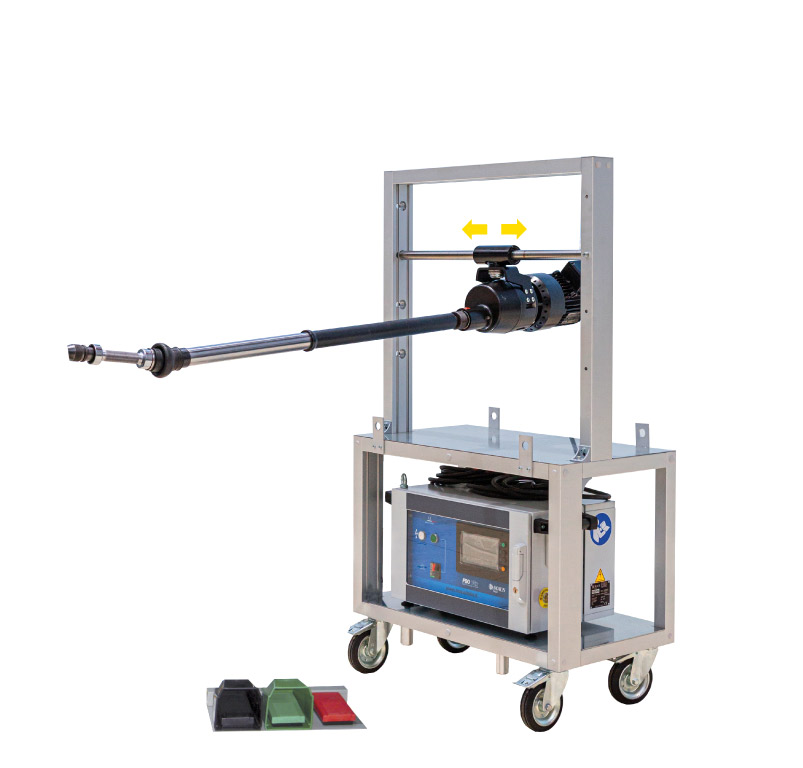

Quadrol 90x Standard

The Quadrol 90x Standard is based on the standard trolley. Fixed positions on the vertical axis.

  • Lightweight
  • Easy to disassemble
Maus Italia - Quadrol 90x Plus

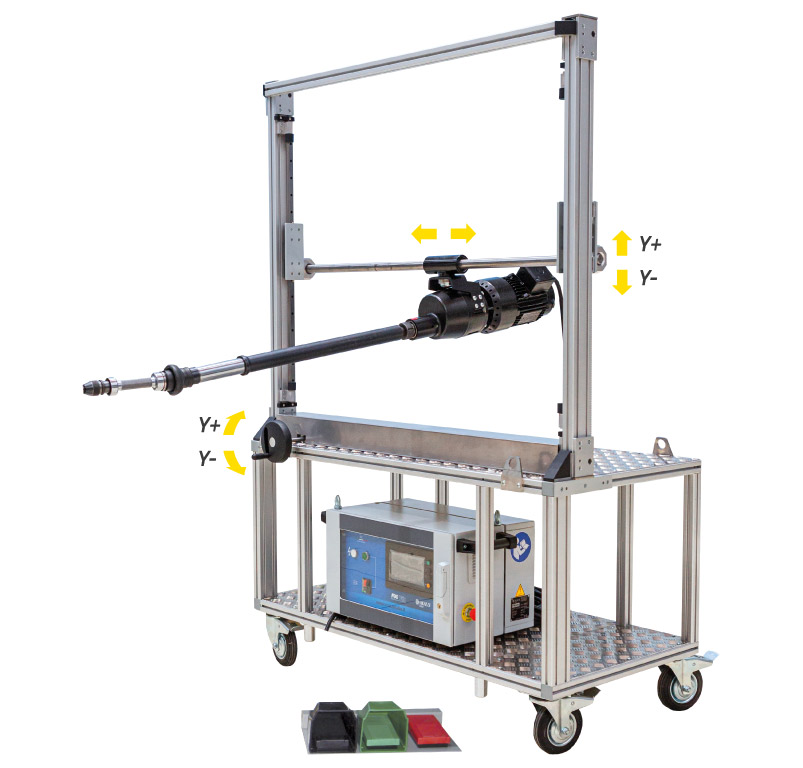

Quadrol 90x Plus

The Quadrol 90x Plus is based on the plus trolley model with manual motion along the Y axis. Manual vertical displacement of rolling motor.

  • Increased operating range on the X axis
  • Continuous manual motion along the Y axis
  • Reduction of the positioning time
Maus Italia - Quadrol 90x executive

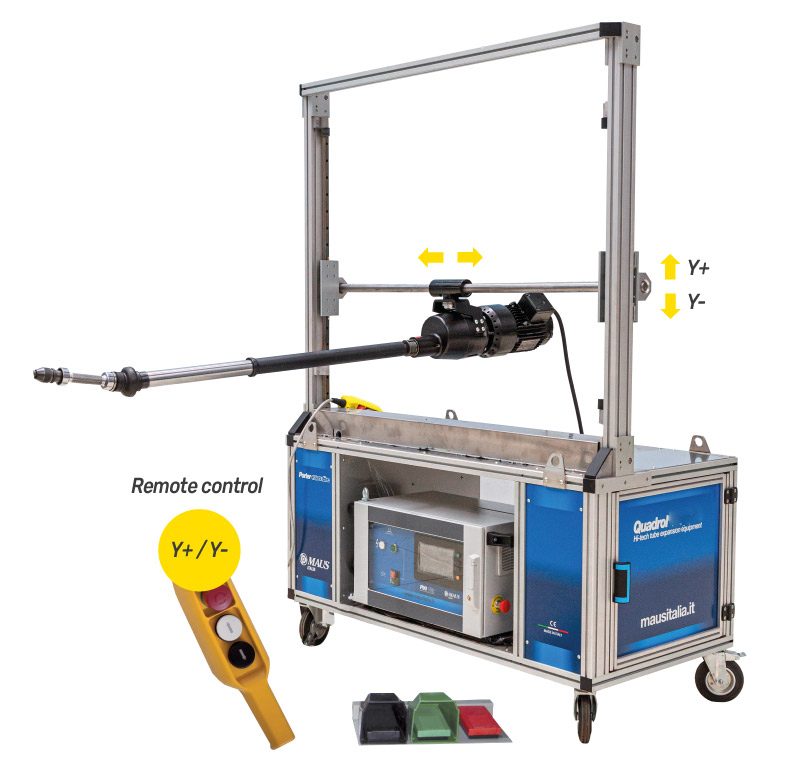

Quadrol 90x Executive

The Quadrol 90x executive is based on the executive trolley model with electric servo driven motion along the Y axis. Motor driven rolling motor vertical displacement

  • Servo driven motion along the Y axis
  • High reduction of the positioning time
  • Cabinets for safe tools and accessories storage

Electronic microprocessor tube expansion controller

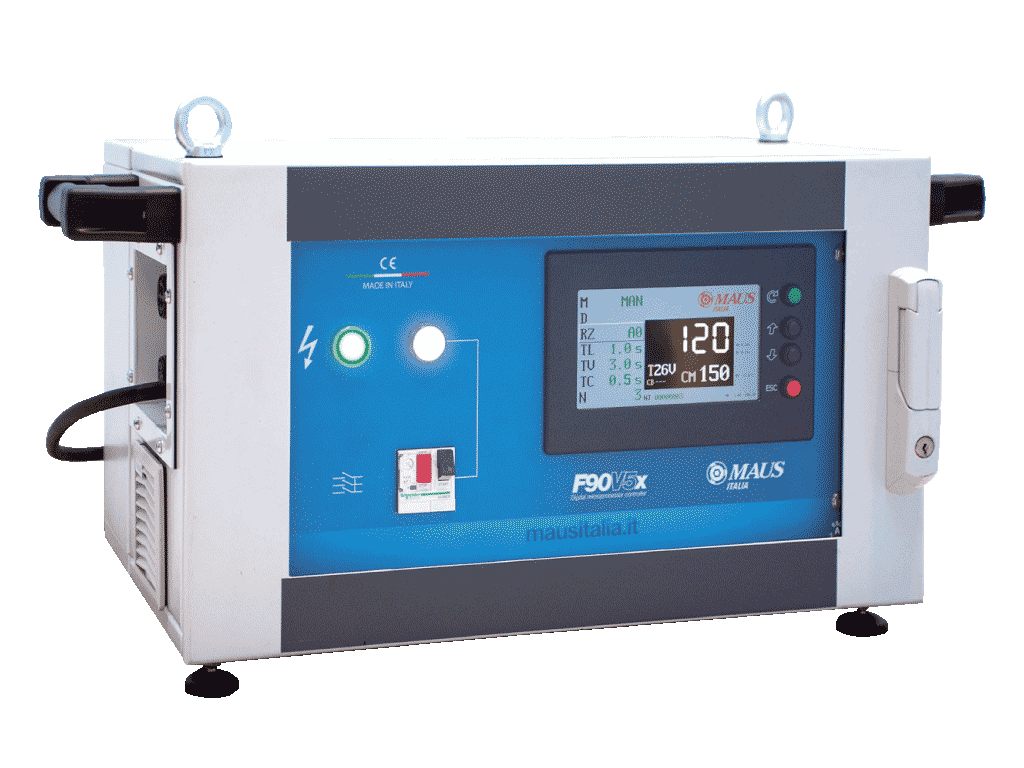

F90V5x

The F90V5x electronic expansion controller is the eight version of the F90 series, which has sold in its thousands all over the world since 1972.
F90V5x is easy to learn, is equipped with a dedicated interface; it is protected by a strong metal casing offering an high degree of protection IP 54 (closed cabinet).

The F90V5x is a microprocessor controller allowing the management all commands from a specially designed panel.

Maus Italia - Quadrol 90x

Electric rolling motors with three-phase motor at low voltage and 4-speed gearbox in oil bath

MK Series

The MK800 and MK400 are our two models of electrical rolling motors that meet the main technical requirements of the market, according to tube size and required expansion characteristics. With a self-ventilating low-voltage (26/42 V) three-phase motor and integrated suspension, the MK series electrical rolling motor have been specially designed to guarantee:

  • Robustness
  • Continuous performance
  • Speed variation according to torque
  • Flexible use
Maus Italia - Quadrol 90x

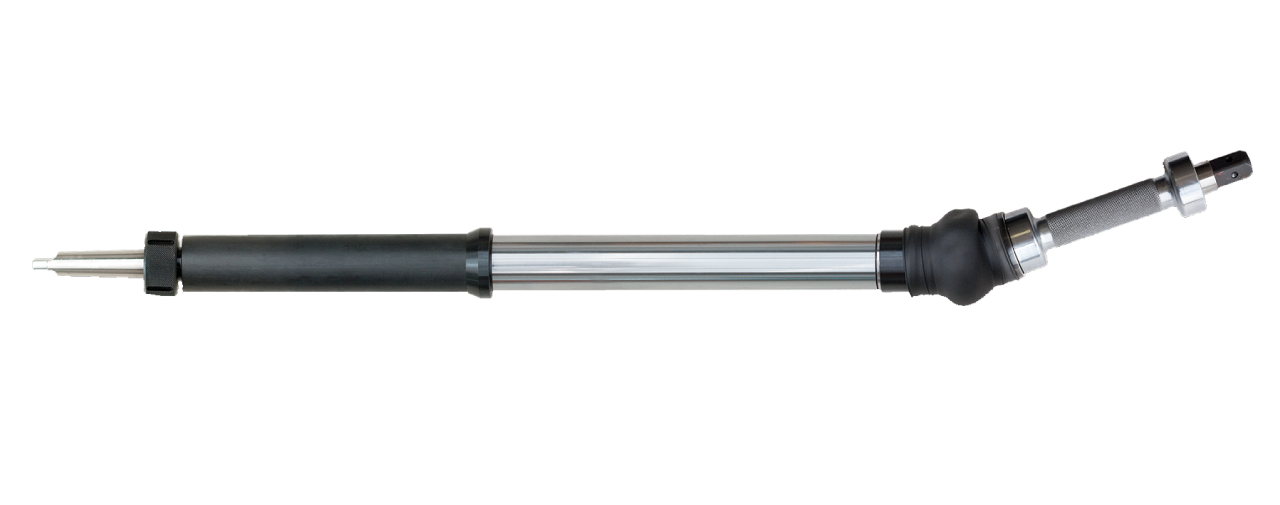

Maus Italia - F/308HS - F/308 Articulated telescopic shaft
Tube rolling

F/308HS - F/308

Articulated telescopic shaft

The Maus Italia articulated telescopic shafts F/308HS and F/308 Series allow the efficent mechanical transmission of the rotation from the motor to the tube expander.
The brand new F/308HS, the technological evolution of the F/308, with innovative design solutions, combined with F/314HS and F/317HS couplings, is easy to hand, precise and stable at speeds in excess of 400 r.p.m.

The traditional F/308 is available in the F/308-4 size for heavy duty transmission.

  • High vibration reduction
Download catalog
Maus Italia - F/314HS - F/317HS Female-female double quick couplings for high speeds
Tube rolling

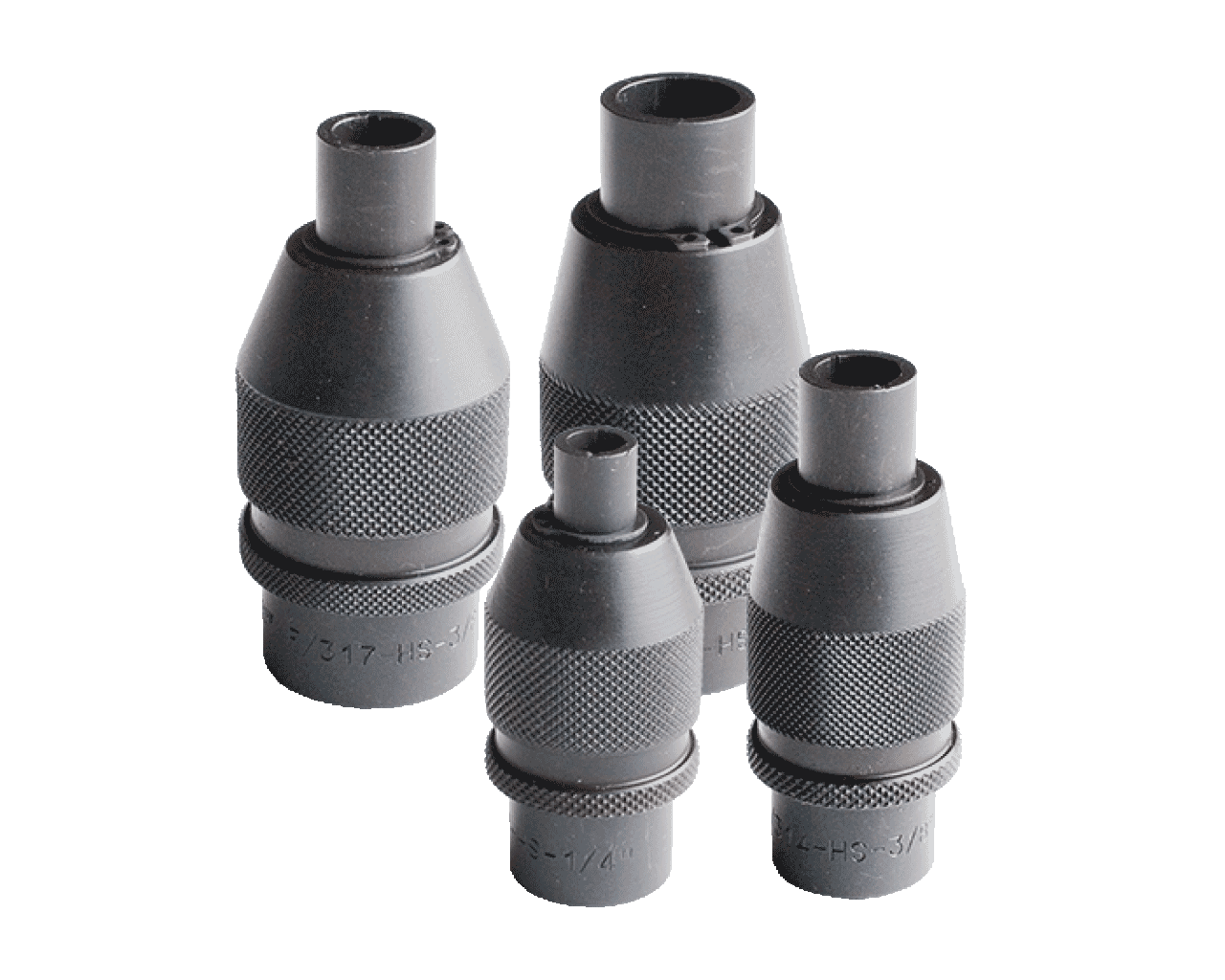

F/314HS - F/317HS

Female-female double quick couplings for high speeds

The F/314HS and F/317HS double quick couplings, as well as ensuring that tube expanders can be changed extremely quickly, thanks to an accurate and patented design, also ensurs that the F/308HS shaft coming in perfectly coaxial with the tube expander mandrel coming out, ensuring that the level of vibration in the hands of the operator is well below permitted thresholds.

Download catalog
