Mef express HT - ensure minimum downtime and protection of the tube bundle during extraction

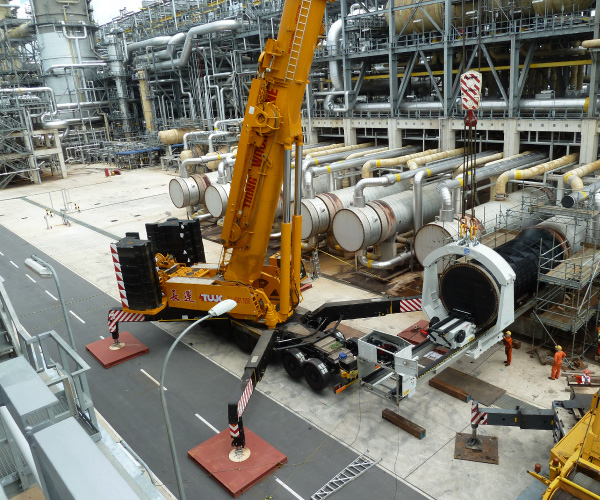

MAUS ITALIA presents, for the extraction and insertion of tube bundles in the plant, a complete new range of Mef express HT aerial tube bundle extractors with dedicated solutions for handling by crane for maintenance at great heights.
Years of evolution of the Mef express product series have allowed the design to be revisited, making the Mef express HT ( High Technology ) aerial tube bundle extractors of today even more lightweight, more exible and easier to handle.

  • For tube bundles up to 125 T weight



Aerial tube bundle extractors Mef express HT Maus Italia



Mef express HT main features



Mef express HT - Maus Italia

No damage

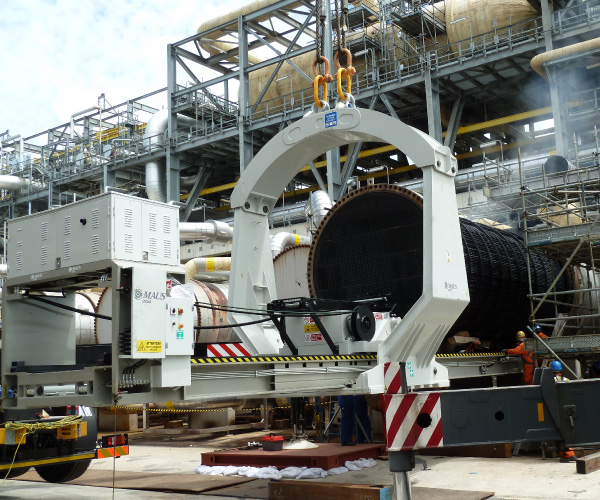

The Mef express HT aerial extractor carefully supports the tube bundle during extraction and insertion and ensures perfect balance along its longitudinal axis, eliminating the risk of damaging the baffles or crushing the tubes.

Mef express HT - Maus Italia

Operational simplicity

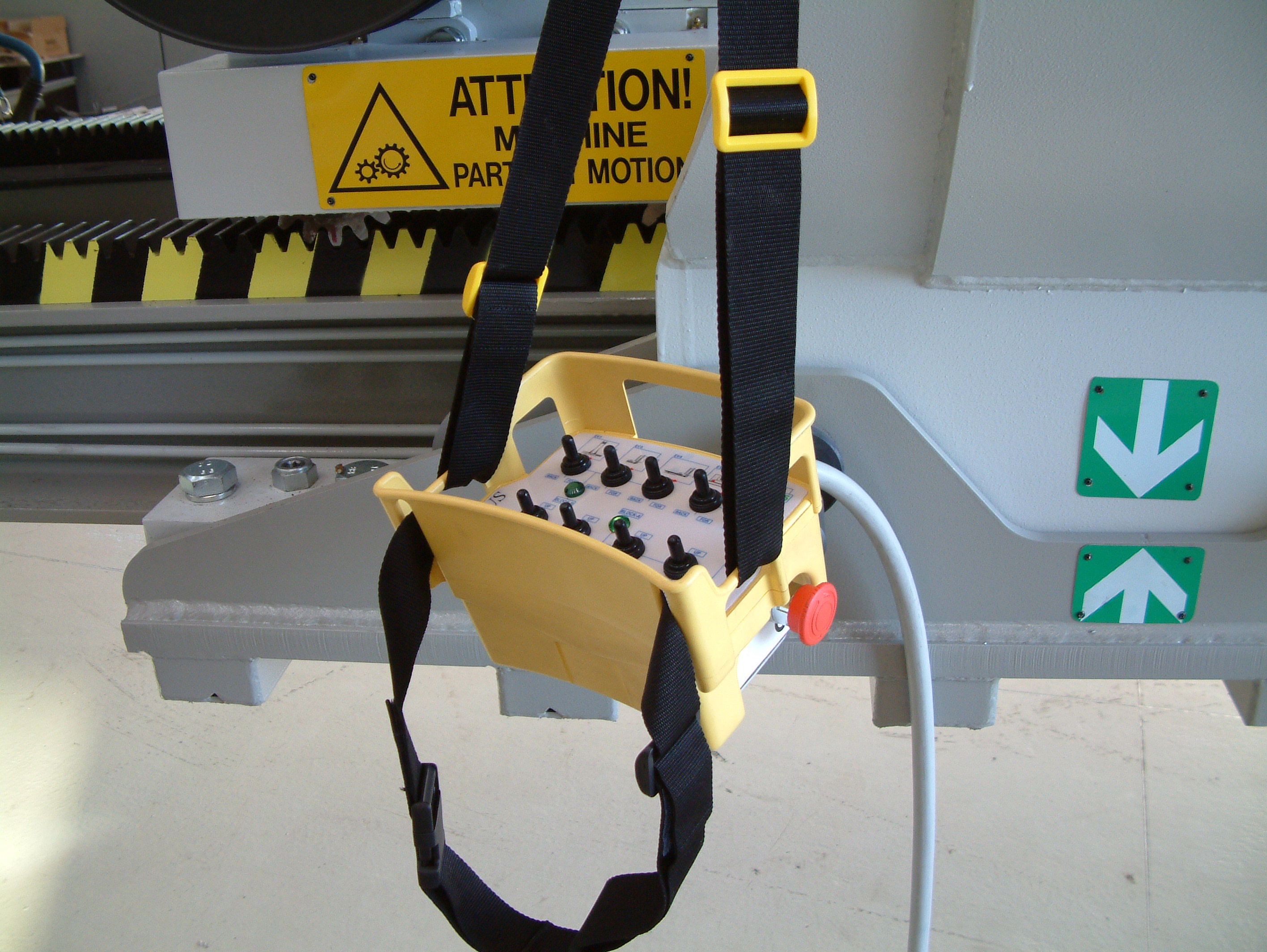

The controls on the supplied remote control make the Mef express HT extremely simple and intuitive to use, guaranteeing the operator full control of the extraction or insertion sequence.

Mef express HT - Maus Italia

Long-lasting epicyclic power

The use of powerful planetary gearboxes guarantees greater reliability and robustness than chain systems, thus minimising the need for maintenance.





Mef express HT main optionals



Mef express HT - Maus Italia

Electronic Overturning Control system

The Mef express HT can be supplied, upon request, with the innovative EOC system which allows the handling of loads in complete safety by inhibiting any incorrect commands which would compromise stability.

Mef express HT - Maus Italia

ATEX certification

The Mef express HT aerial extractor can, upon request, be manufactured in accordance with the ATEX directive in an explosion proof configuration for use in environments with a potentially explosive atmosphere.

Mef express HT - Maus Italia

Not afraid of the cold

The Mef express HT aerial extractor can be supplied, upon request, in the special version, suitable for operating at the very lowest temperatures.

Mef express HT - Maus Italia

Adapts according to need

MAUS ITALIA can design the Mef express HT aerial extractor, upon request and subject to technical verification, for bundle sizes and weights different from our standard product. Special paints for colour, composition and thickness are possible.

Mef express HT - Maus Italia

DNV certification for FPSO and o shore platforms

MAUS ITALIA can, upon request, design and produce DNV approval type Mef express NAVY aerial tube bundle extractors for OFFSHORE applications, Mef Fixed NAVY stationary versions and Mef mobile NAVY self-propelled caterpillar versions.







Mef express HT ensure minimum downtime and protection of the tube bundle during extraction



  • Adjustable hydraulic vices for anchoring the machine to the exchanger flange. Also available with left and right independent movement (optional)
  • Electrowelded steel structure to support the weight of the tube bundle
  • Lifting points or lifting the extractor
  • Engine unit sized for the selected model (with liquid-cooling optional)
  • Support trolleys to support the tube bundle. Also available with hydraulically operated (optional)
  • Hydraulic rope tensioning system for safe anchoring of the extractor to the exchanger. left and right side independent movement (optional)
  • Remote control for controlling the available hydraulic movements (wireless optional)

Aerial tube bundle extractors Mef express Maus Italia

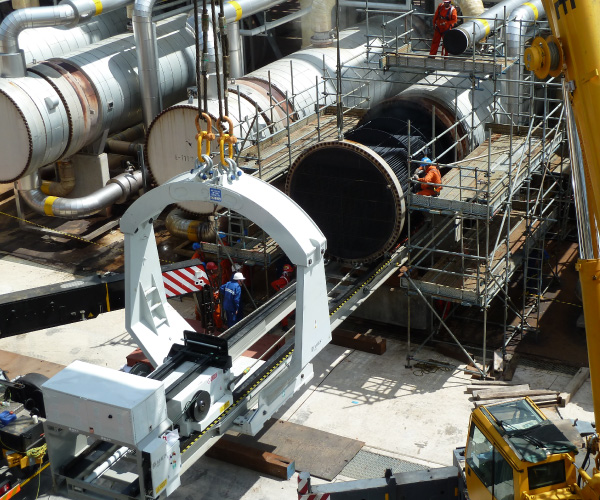

Extraction sequence



Aerial tube bundle extractors Mef express HT Maus Italia

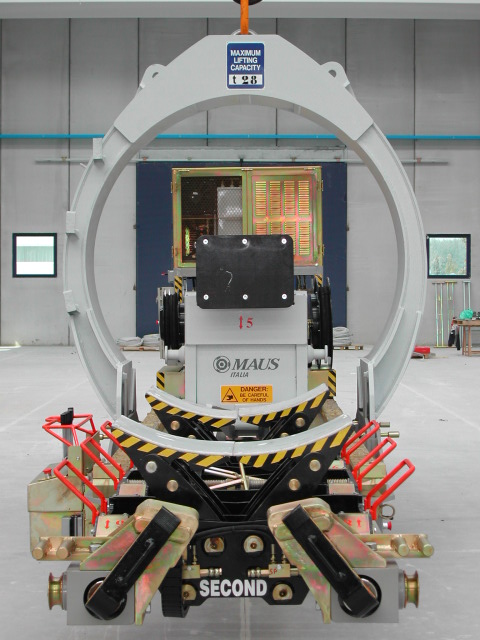

Easy container transport

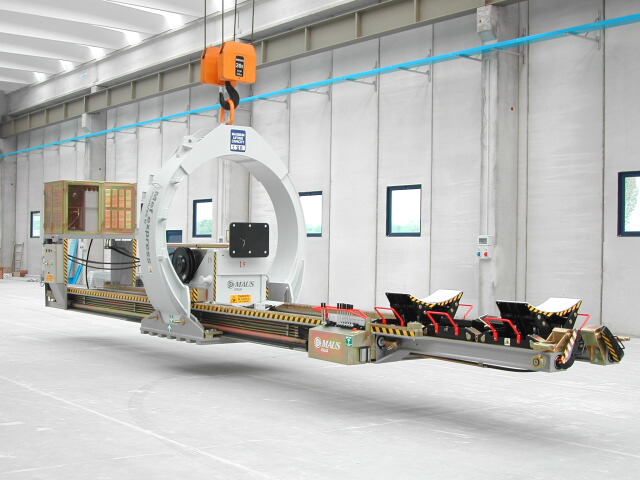

For sizes from the Mef express HT 2545/75 up, the lifting ring can be disassembled into 3 parts to allow the extractor to be shipped in Open Top containers and help truck transportation.

Mef express HT Maus Italia

Hydraulic balancing system

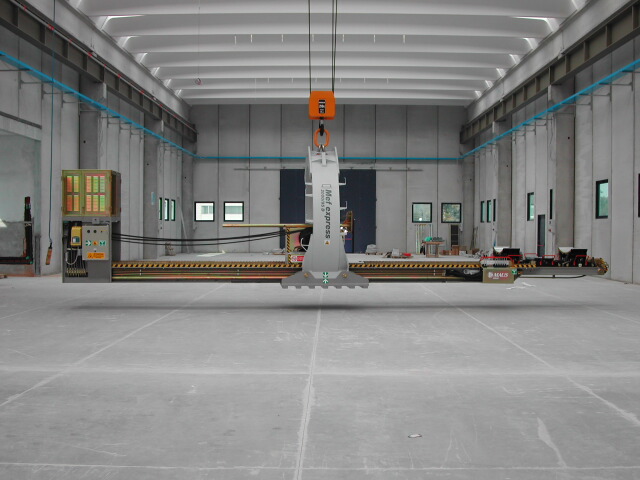

Two powerful hydraulic pistons allow balancing of the extractor by modifying, if necessary, the position of the frame with respect to the ring attached to the crane.

Mef express HT Maus Italia

Manual adjustment of the bundle supports

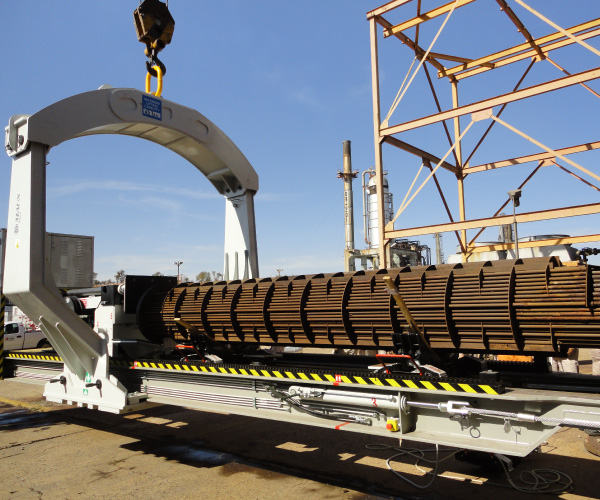

Correct support of the tube bundle is guaranteed by the support trolleys which, resting on the diaphragms, support it safely without compromising its integrity.

Mef express HT Maus Italia

Long-lasting epicyclic power


The use of powerful planetary gearboxes (between 1 and 3 according to pulling force) improves reliability and makes possible the increase of pulling force compared to chain systems, thus minimising maintenance of the transmission components.

Mef express HT Maus Italia

Aerial tube bundle extractors Mef express HT Maus Italia

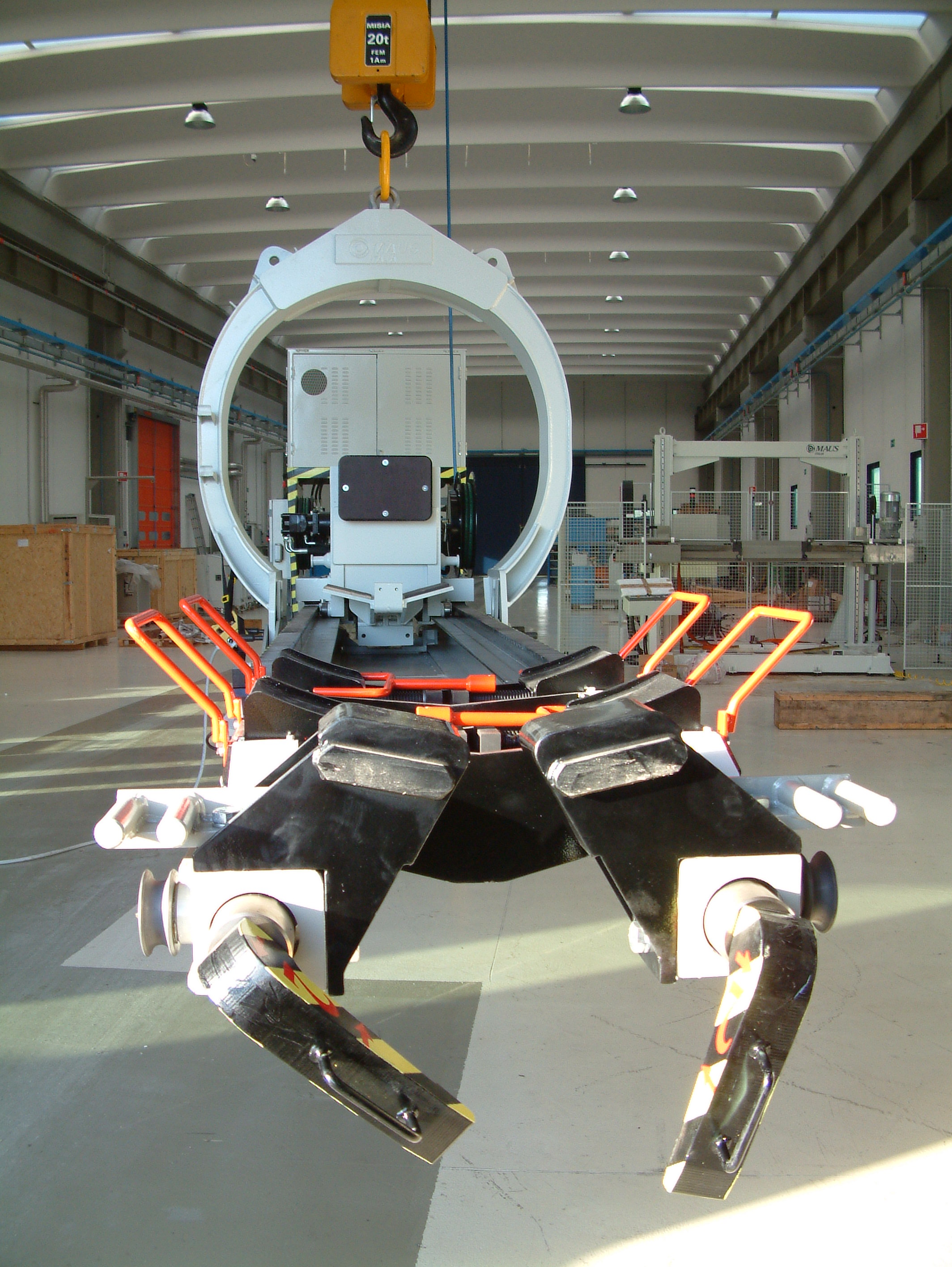

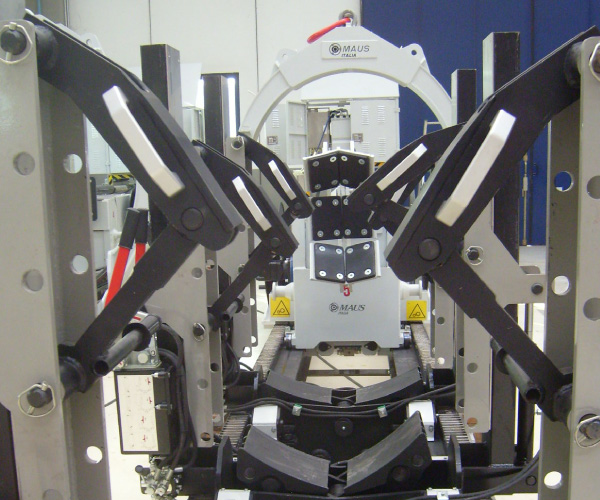

NEW / PATENTED: Telescopic arms for the thrust and rotation of the tube bundle

Innovative remotely-controlled system for rotating the tube bundle which allows safe alignment the bundle with the shell, avoiding the need for the operator to climb on the Mef express HT during the final insertion phase.

EOC: Electronic Overturning Control system

Innovative control system which allows overhead handling of loads in complete safety by inhibiting any incorrect commands that could compromise the stability of the Mef express HT.

Aerial tube bundle extractors Mef express HT Maus Italia

Aerial tube bundle extractor Mef express HT Maus Italia

ATEX certification on request

The Mef express tube bundle pullers are available, on request, suitable for use in hazardous areas, complete with an ATEX declaration of conformity covering the whole machine ( motors, electrical system and all machine components ).

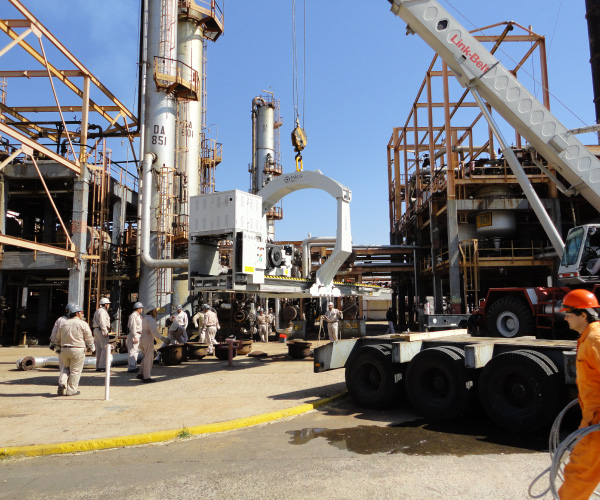

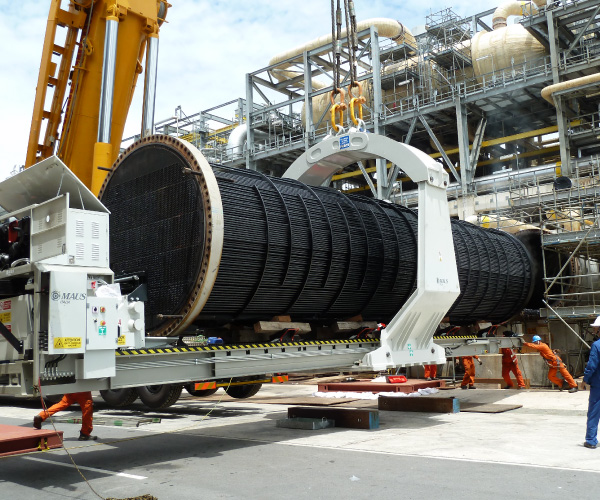

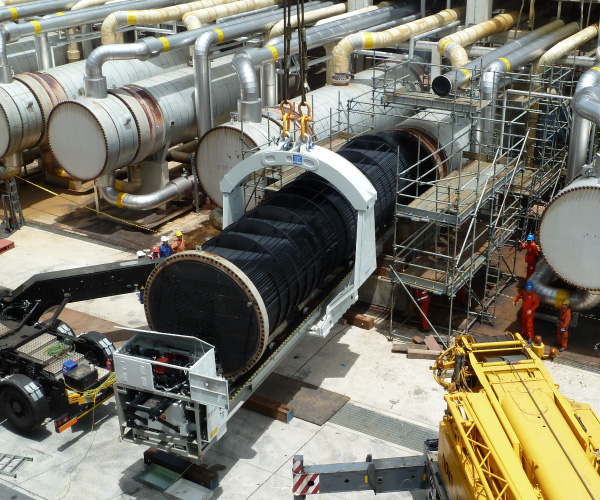

Image gallery of Mef Express HT







Product technical datasheet

If you would like all the technical information related to this product, please download the .pdf brochure
or get in contact with us directly, our qualified personnel will answer to your queries.
