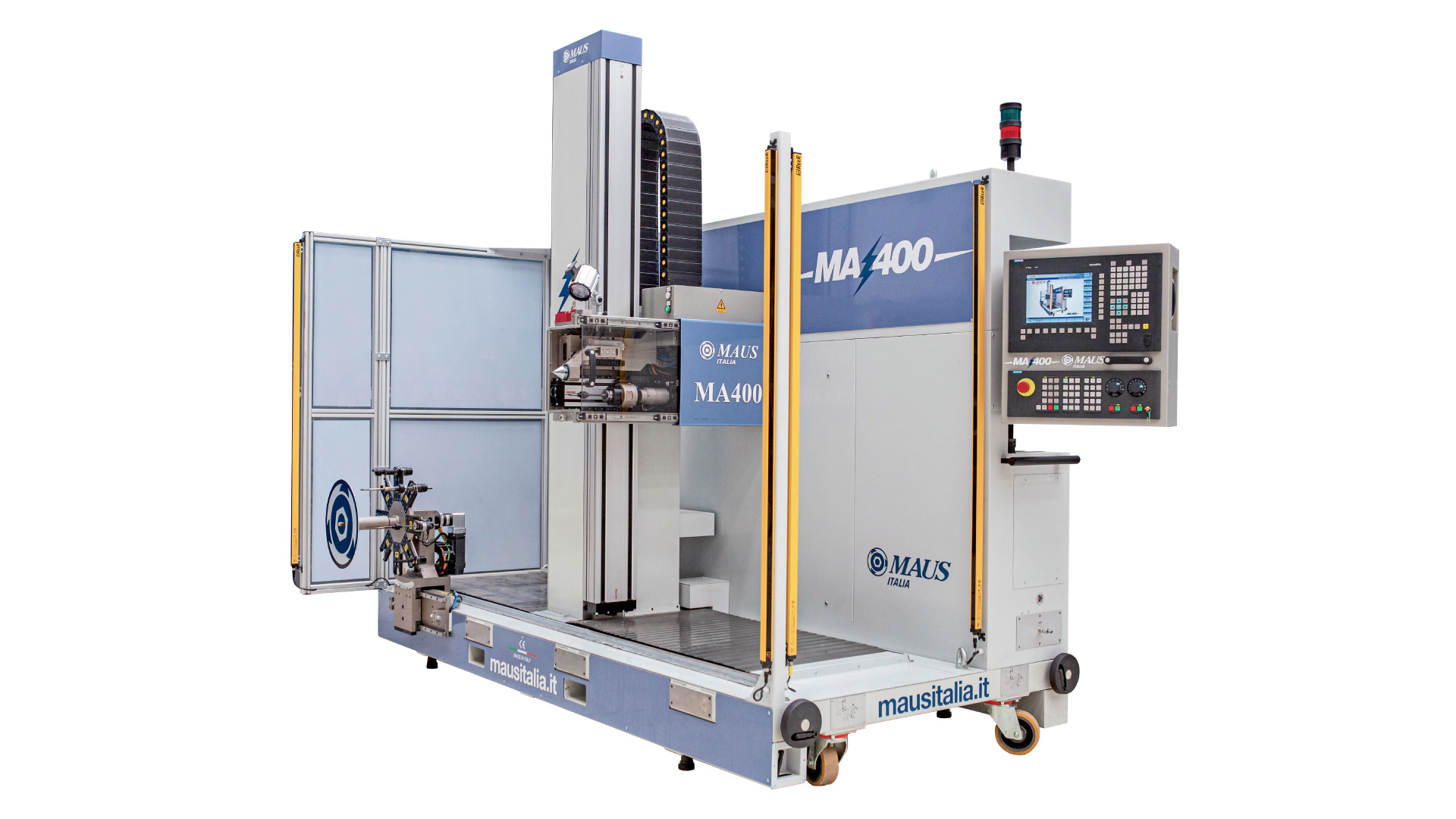

Maus Italia - MA 400
Automatic tube rolling

MA 400

Automatic CNC tube rolling work centre More than 600 tubes/hour, 1 cycle in less than 6 sec.

Maus Italia has solved the problem of batches of bundles with small dimension with an automatic tube rolling work centre complete with innovative solutions, such as:

  • machine vision system for rapid centring of holes;
  • multiple fixing templates with vertical loading for the assembly of tube bundles and precise positioning for production;
  • pallets for the loading / unloading of tube bundle batches in front of the MA 400.
Download catalog Watch full video
Total automation

The productive process does not require the continual presence of an operator

Extreme tube expansion quality

Self-learning machine vision centring system

Tube rolling always certified

Torque data is monitored in real time and the information collected in a printable report

High productivity

More than 600 tube expansions per hour

More than 600 tubes/hour, 1 cycle in less than 6 sec.

Extreme tube expansion quality and tube rolling always certified

Innovations and features

Six extraordinary and unique features

High productivity

A series of measures and applied technologies allow the MA 400 to work at high speed with the achievement of more than 600 tube expansions per hour.

Total automation

The MA 400 productive process does not require the continual presence of an operator who can then, as a result, dedicate his time to the preparation of the next pallet to avoid machine down times.

Immediate programming directly from the tube sheet design

The software created by Maus Italia, known as MausCAM, has evolved to aid the MA 400 as an interface for X-Y programming by reading the CAD drawing of the drilling pattern of the tube sheet.

Operational simplicity

The extremely user-friendly control console ensures access to all parameters by the operator.

Tube rolling always certified

Each tube expansion with X-Y position, expansion and torque data is monitored in real time and the information collected constitutes the report for certifying the completed work.

Self-learning machine vision centring system (Optional)

The necessity of reducing production times has led the Maus Italia technical staff to make use of a camera, thus avoiding any type of mechanical contact for the centring of the tubes.

MA 400 - Automatic CNC tube rolling work centre - Maus Italia

Exclusive features

The only machine in this sector which is completely autonomous and automatic.

MA 400 - FOCS3

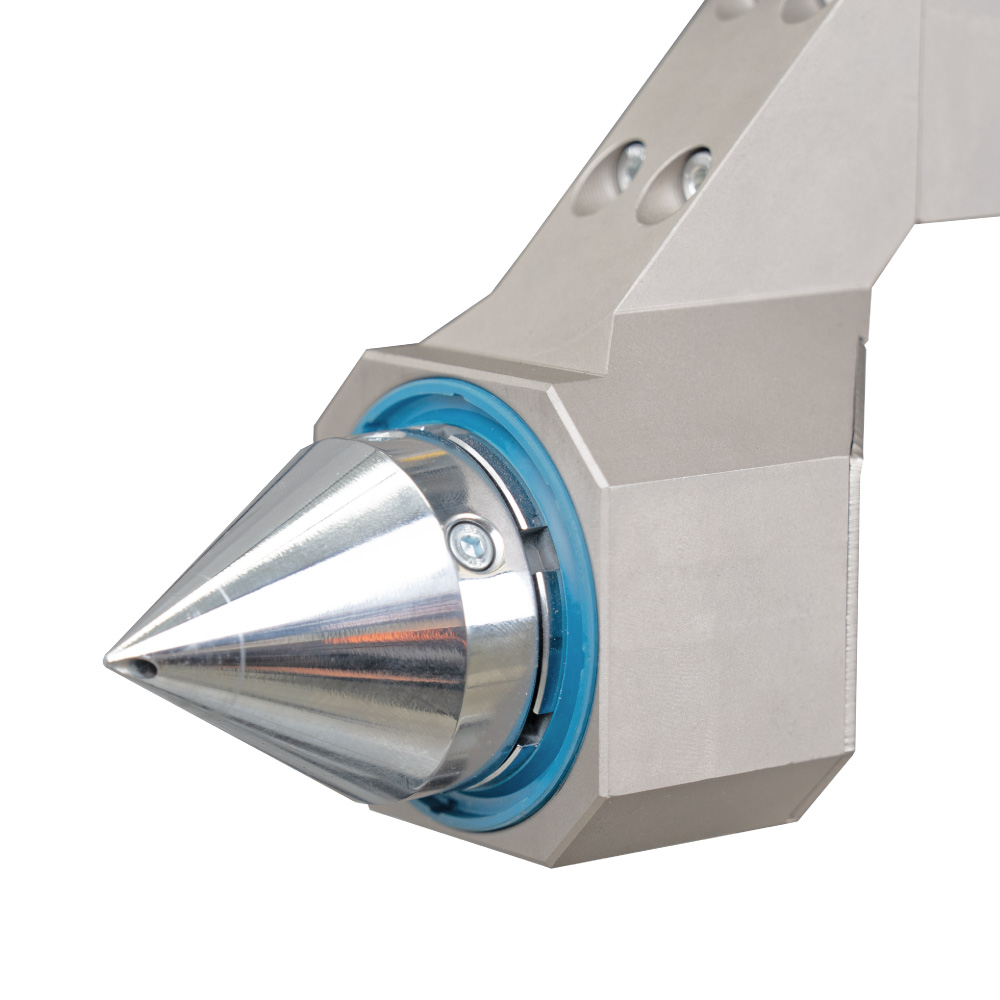

Self-learning electropneumatic centring probe FOCS3

The unique FOCS3 centering system is a self-learning electropneumatic device for automatic tubes centering and correction. This device is controlled by software exclusively designed by Maus Italia.

MA 400 - CNC console

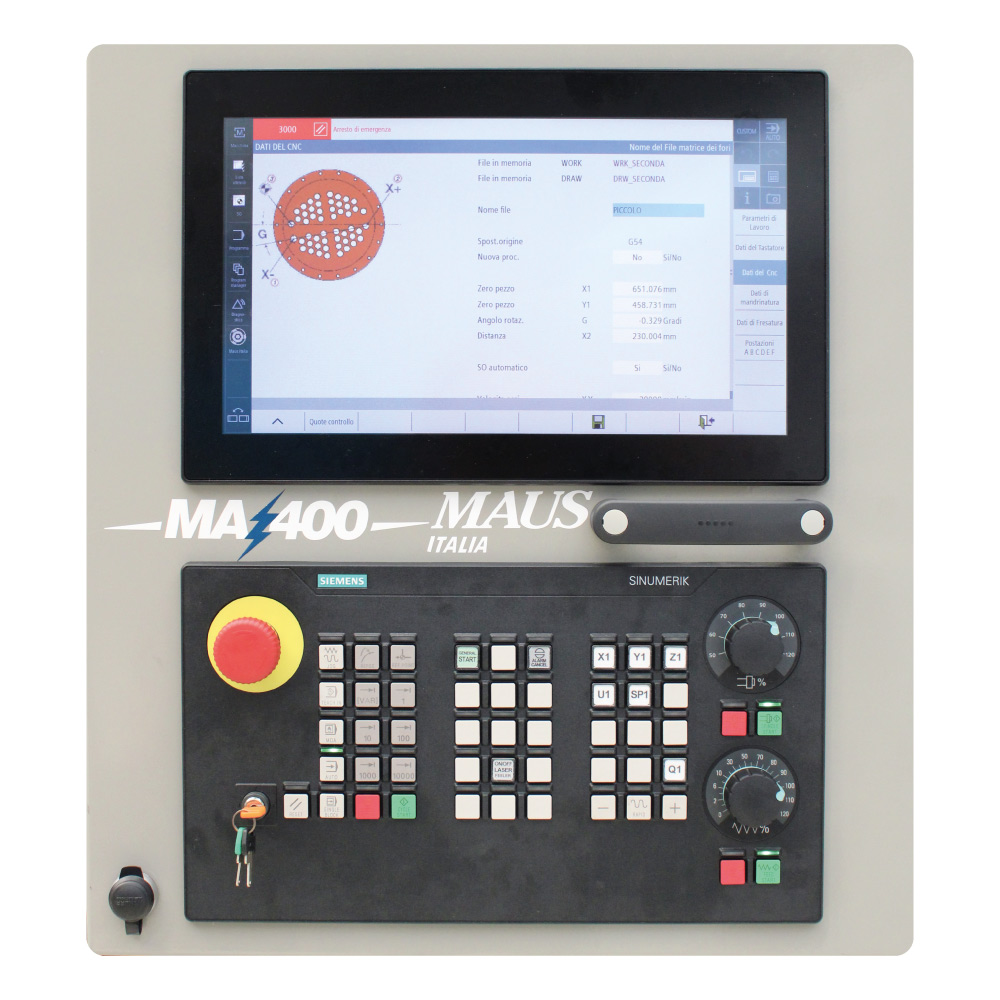

CNC Control console

Located to ensure maximum visibility of the work zone, it is extremely user-friendly and ensures maximum operational simplicity and access to all parameters by the operator.

MA 400 - MausCam

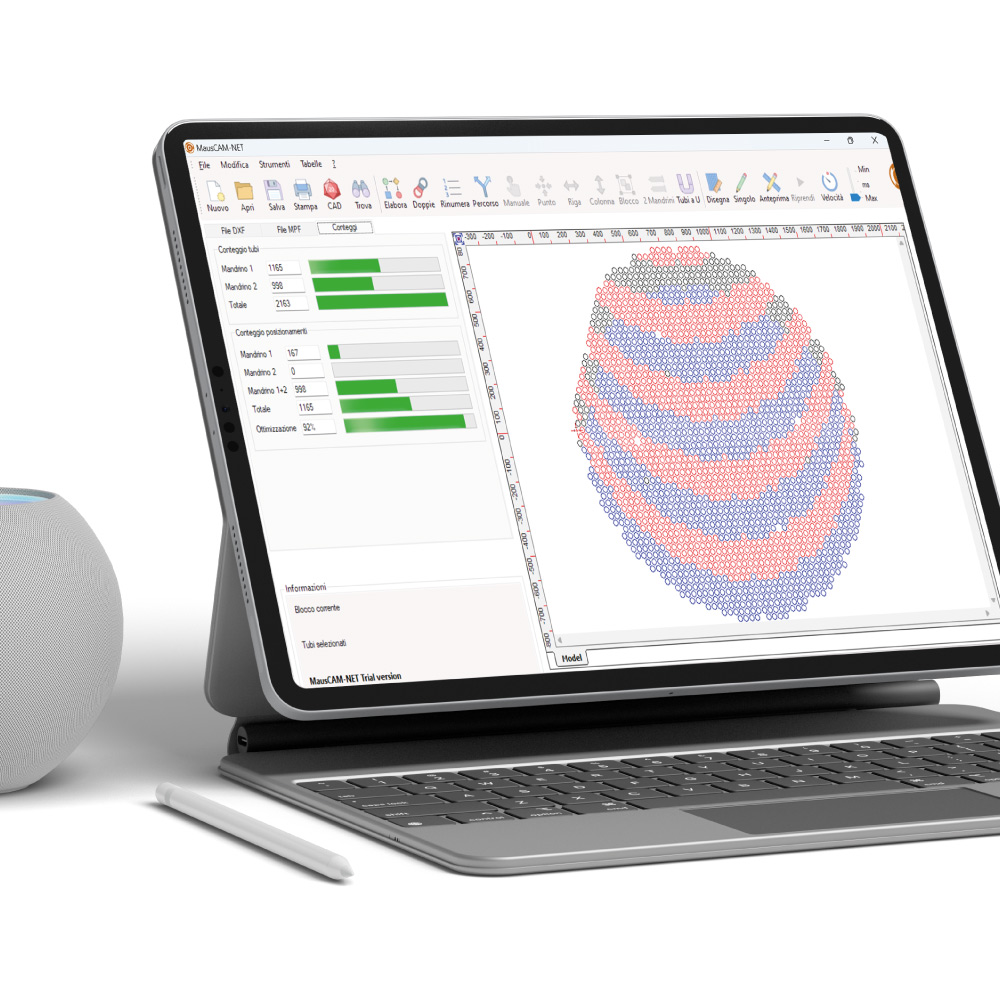

Maus CAM Interface software for CAD design of CNC programming

The new Maus CAMNet software processes DXF files, importing all graphic entities so that the operator can set up a machine program assigning a specific work sequence. In particular, CAM ( Computer Aided Manufacturing ) is the computer support to the programming of CNC machines, which through functions developed over time and industry experience, makes it possible to transform drawings into a machine program in a simple way.

MA 400 - Tools changing device

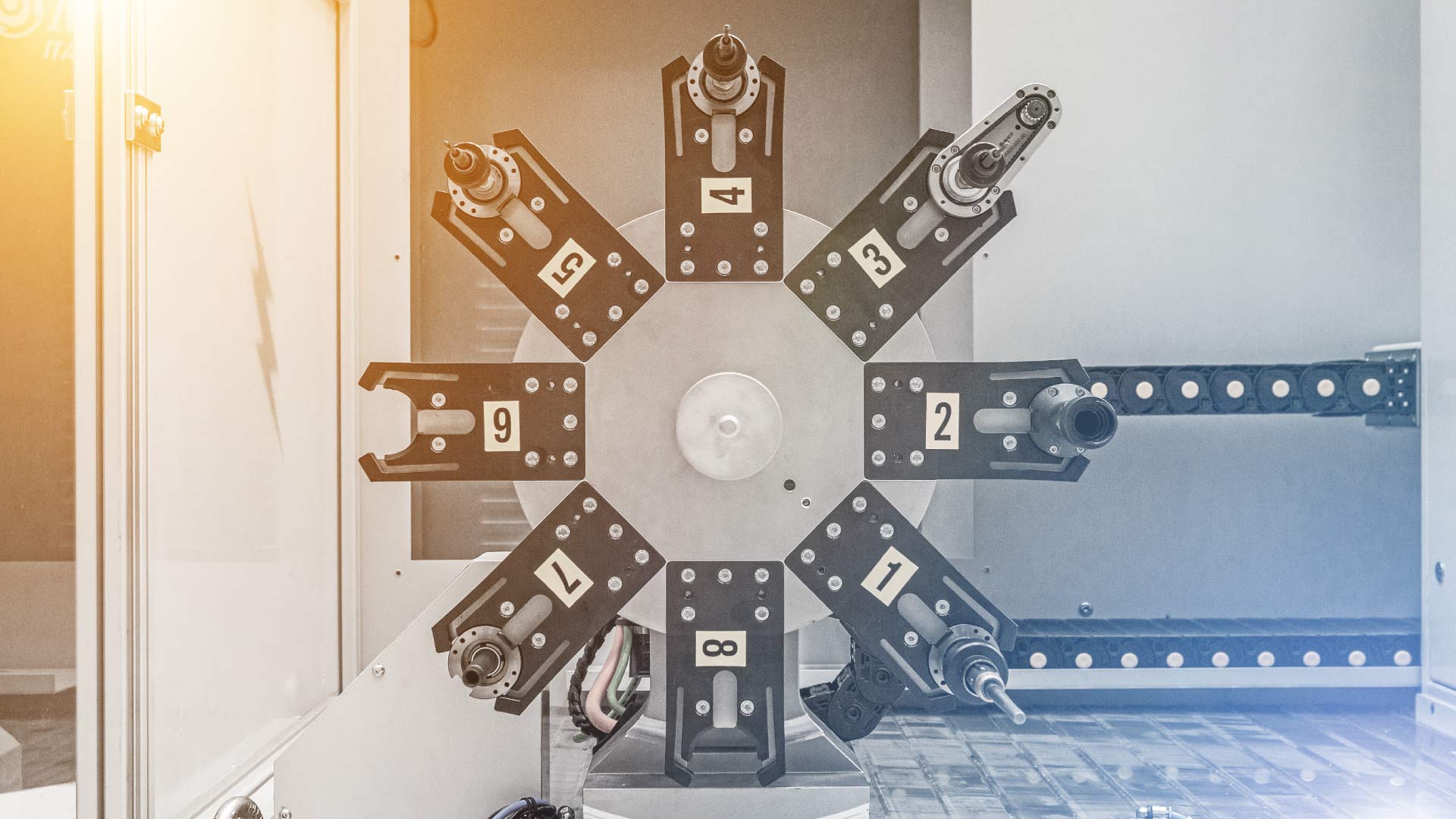

Automatic tools changing device

An eight-position tools holder with automatic tools changing device is available as an optional for the MA 400 which allows the execution of different types of manufacturing processes, completely automatically and in unattended way. In fact no needs the continuous intervention of the operator for the replacement of the tool increasing the autonomy of the machine.
