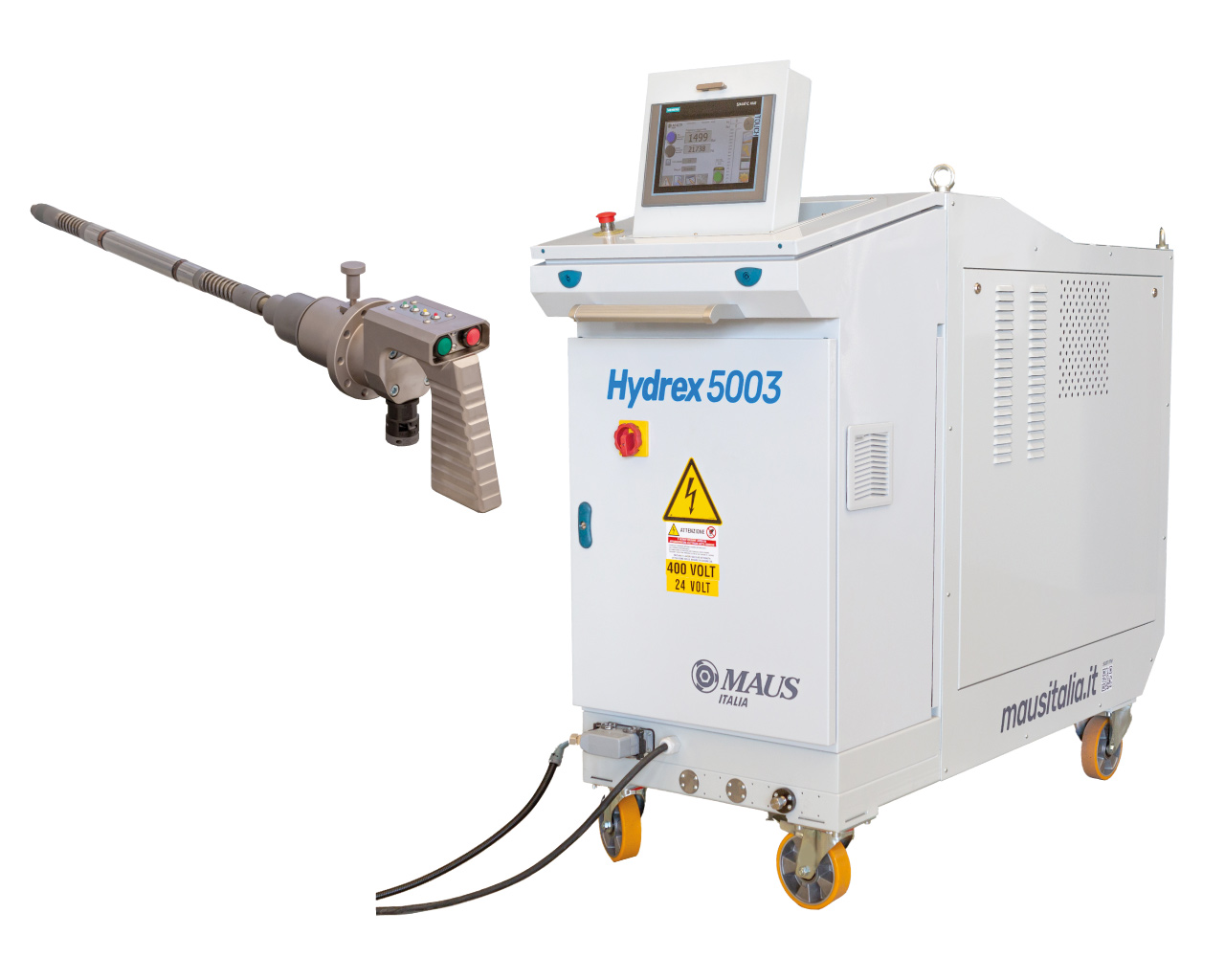

Hydrex 5003
Ultra high pressure hydraulic system for expanding heat exchangers tubesAttentive to the increasingly stringent specifications dictated by designers in petrochemical field, Maus Italia designs and builds Hydrex 5003, the fourth generation of a product acclaimed by our customer for more than 40 years.
An evolution of the previous version, Hydrex 5003, it features:
- a new model of light probe holder equipped with a highly ergonomic handle, made of aluminium and special materials suitable for ultra high pressures
- update of the mechanics and electronics that make it extremely handy, flexible and unique in its kind
- new software that allows the operator to export/print in standard PDF format the diagram of every expansion
Very high repeatibility (+/-1,5%)
Ultra high pression up to 5000 bar (72500 Psi)
No crevice corrosion that preserves the welding
Hydraulic Power Unit

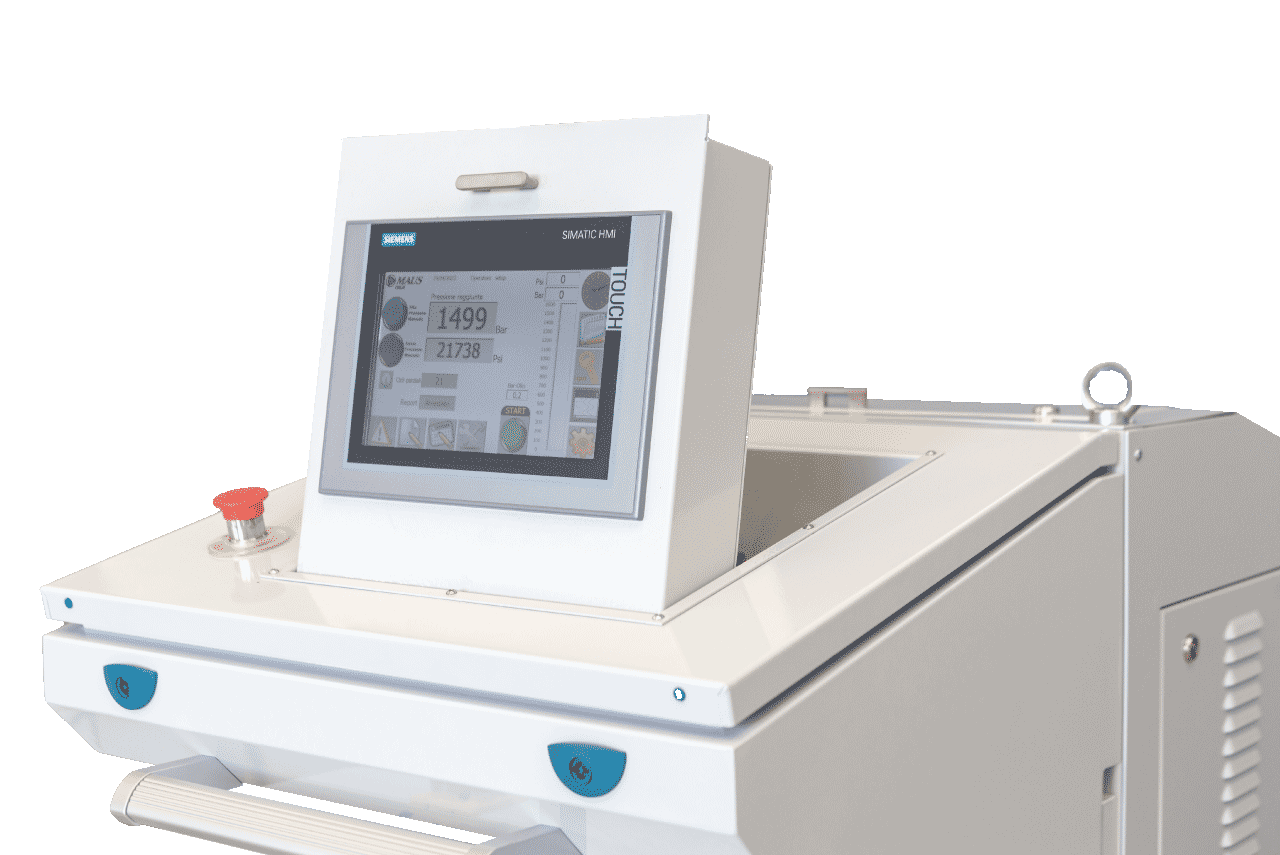

Control console equipped with a 9” wide touch screen display for an intuitive control
of all operating parameters
Thanks to its last generation touch screen control panel, the Hydrex 5003 ensures an extremely simple learning and daily use. Innovative software designed by Maus Italia facilitates the daily work.
Dedicated software for the continuous control of the set expansion pressure and the allowed tolerances.
SACA real calculator dedicated to the definition of the correct pressure, on the basis of the customer data.
Probe holder HDP-4001
Probe holder with quick coupling standard supply with Hydrex 5003 with aluminium ergonomic handle and probe shank in special material for ultra high pressure
VDPExample of variable diameter probe, manufactured according to costumer specifications.
