Mef ShopIN

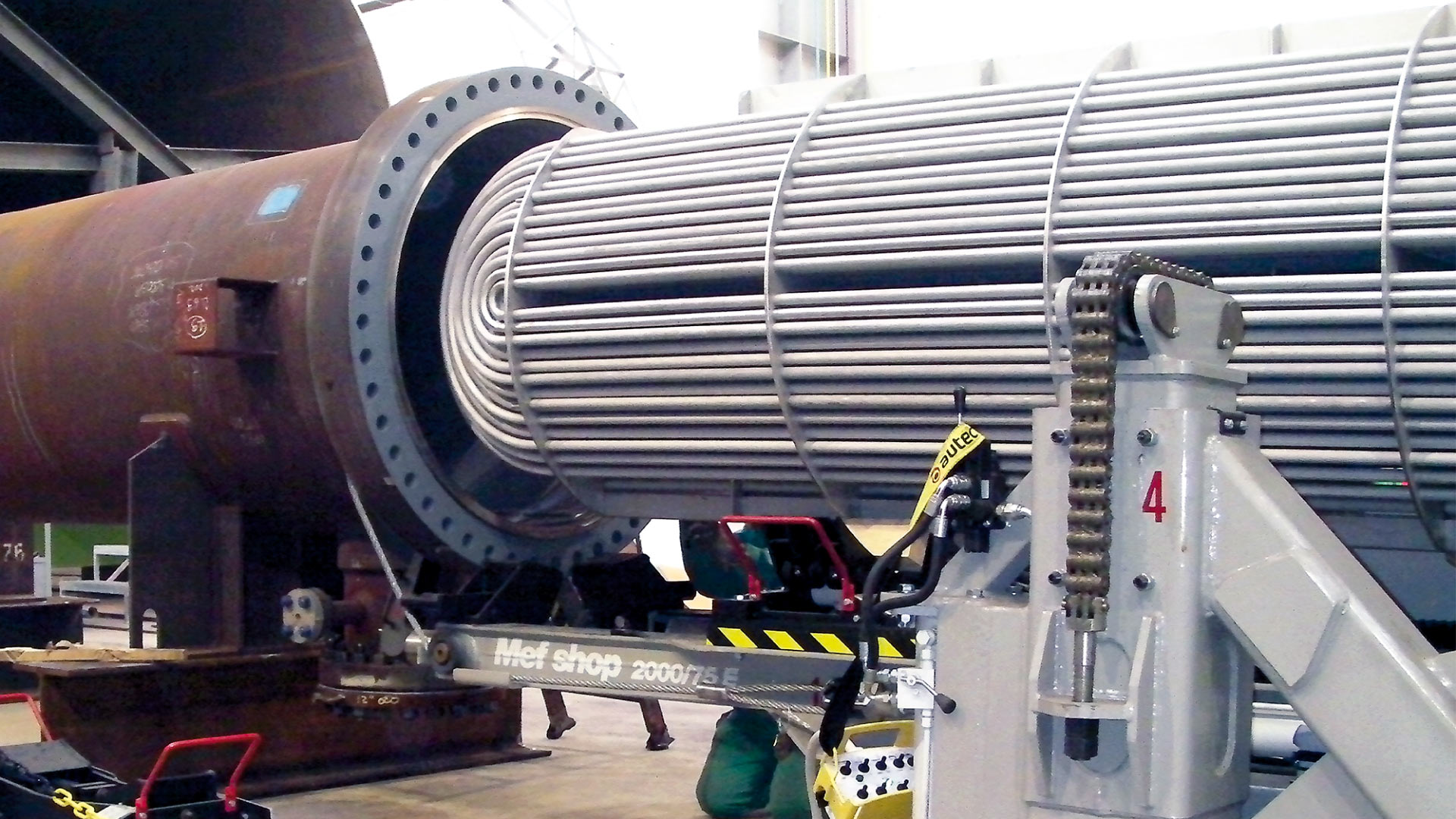

Fixed station tube bundle heat exchangers inserter / extractorThe Mef shopIN is a free-standing machine capable of inserting / extracting the bundle quickly, accurately and safely. Thanks to its experience in the manufacturing of maintenance bundle extractors, Maus Italia offers a machine which is dedicated to modern heat exchanger manufacturers.
- Max load capacity 40 T (88185 Lb)
- Tube bundle maximum length 7500 mm (24.6 Ft)
- Maximum push/pull force 35 T (77100 Lb)
Total safety for both operator and product
Free-standing machine capable of inserting/extracting the bundle quickly, accurately and safely
Outstanding features

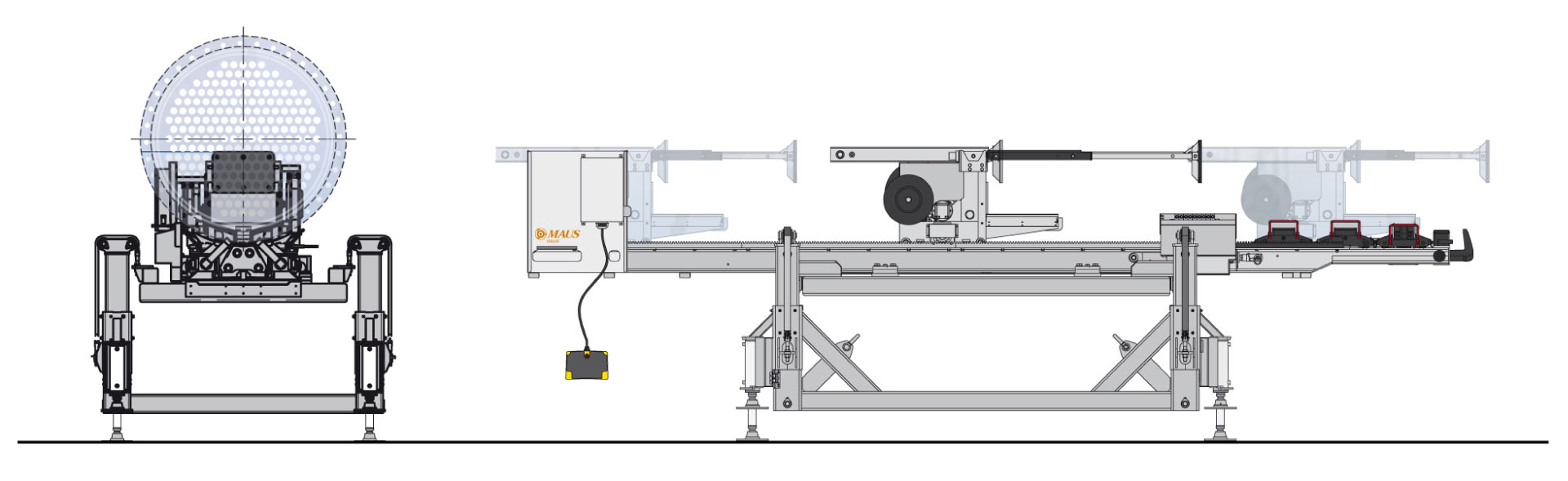

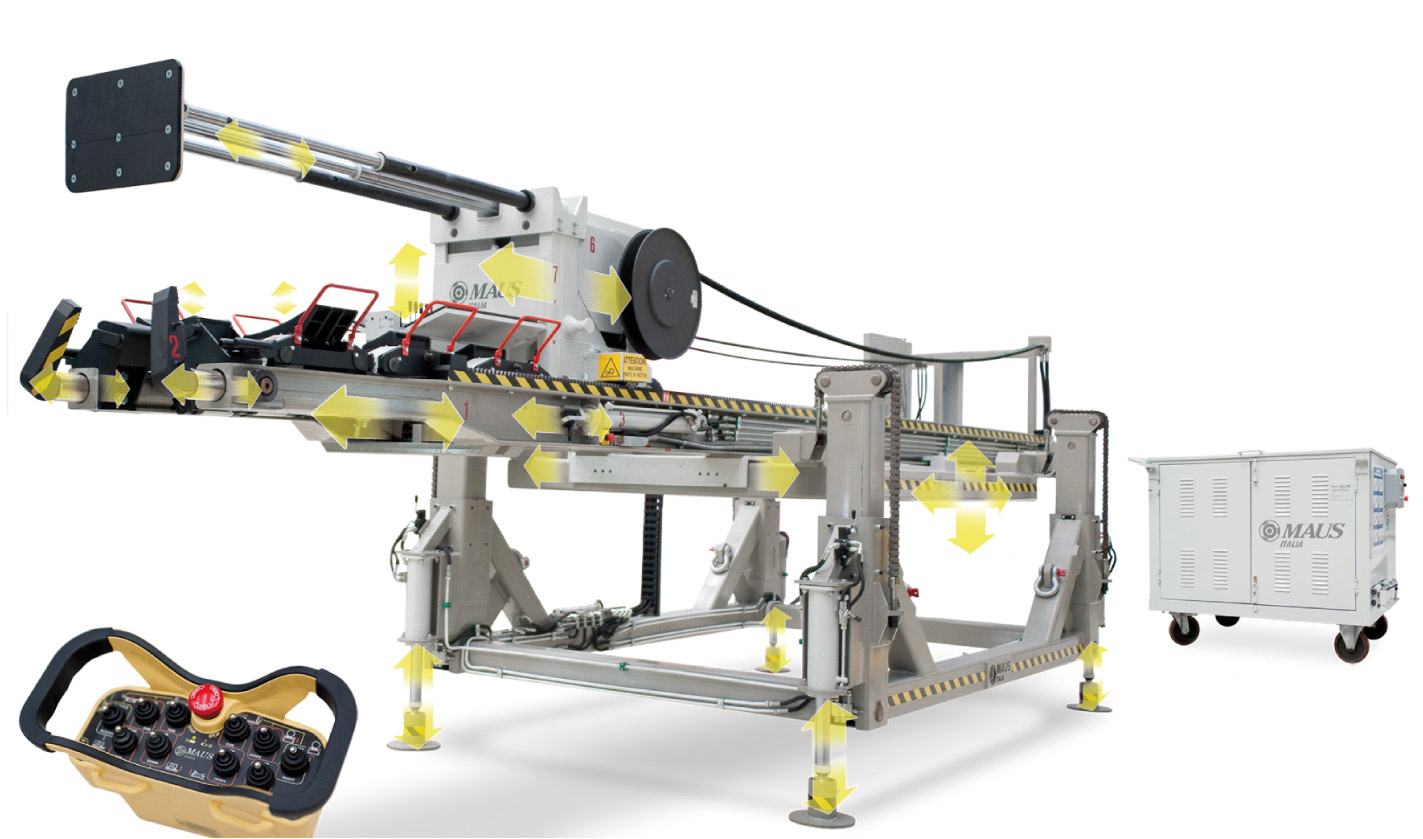

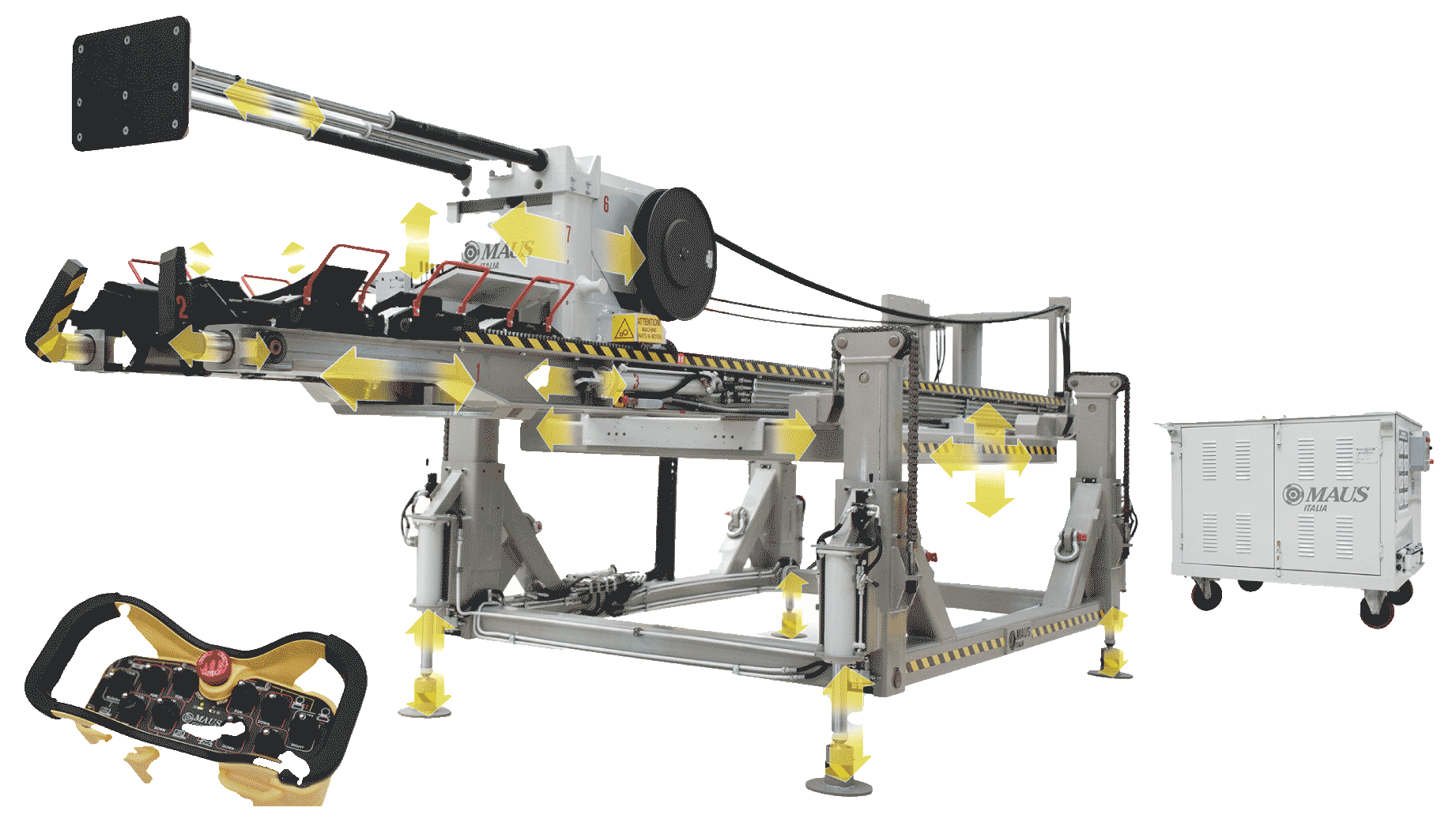

The machine comprises a fixed frame which rests on the ground using four stabilising feet to allow levelling.
Four hydraulic columns fitted on the fixed frame allow the mobile frame, upon which the main hydraulically-powered carriage runs (the part that ensures the driving force required for insertion and extraction), to be raised.
The ability for the mobile frame to move laterally and longitudinally ensures a precise and speedy alignment of the bundle to the shell.
To increase operational safety, the Mef ShopIN is remote-controlled ( wireless model also available ) which allows the operator to manage the machine’s main movements from nearby.

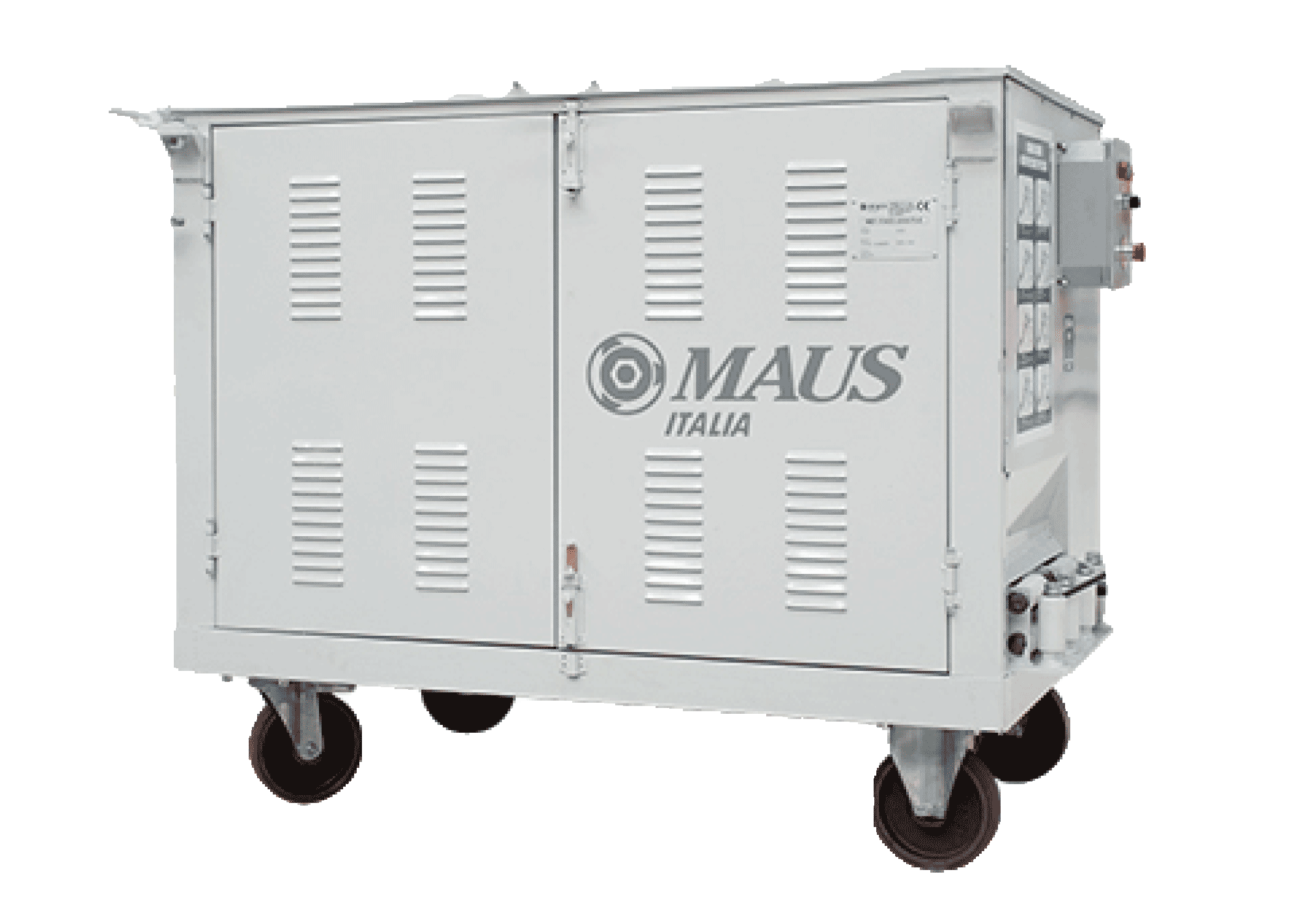

External power unit
The Mef ShopIN is supplied with a trolley-mounted and independent electric hydraulic power unit of suitable capacity and performance. Complete with a hose reel with locking system, it ensures quick and easy release and manoeuvrability.
