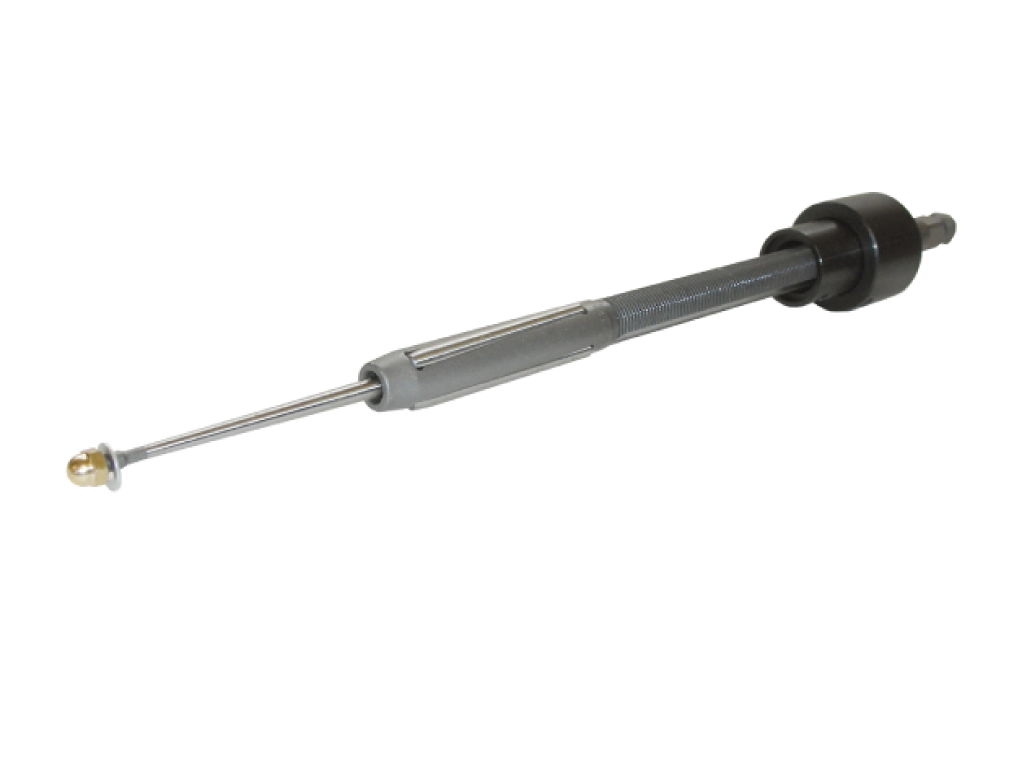

MG/1200 Series with short rollers
Tube expanders for shell and tube heat exchangersLong adjustable depth tube expanders for large thickness tubesheets
- Tubes with external diameter from 1/2" to 1.1/2" (from 12,7 to 38,1 mm)
- Adjustable standard depth from 1/2" to 5" (from 12,7 to 127,0 mm)
- Extra elongation up to 9" (228,6 mm) on the B version and up to 11" (279,4 mm) on the C version
- Extra elongation up to 16" (406,4 mm) on the "16" version and up to 20" (508,0 mm) on the "20" version
- Roller length 1.1/2" (38,1 mm)
MG/1200 Series with long rollers
Tube expanders for shell and tube heat exchangersLong adjustable depth tube expanders for large thickness tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable standard depth from 1,1/4" to 5.3/4" (from 31,8 to 146,0 mm)
- Extra elongation up to 9.3/4" (247,6 mm) on the B version and up to 11.3/4" (298,4 mm) on the C version
- Extra elongation up to 16" (406,4 mm) on the "16" version and up to 20" (508,0 mm) on the "20" version
- Roller length 2.1/4" (57,1 mm)
You may also be interested in the following products
Always at the forefront of research, Maus Italia has designed and manufactured, thanks to the experience it has acquired over more than fifty years in the field, a number of different innovative solutions for portable, semi-automatic and CNC automatic tube rolling.
-
Pneumatic PUSH/PULL torque-controlled tube rolling motorPneumatic rolling motor -
Portable electrical equipment for controlled rolling of tubesElectric system -
Mobile station for automatic tube rollingAutomatic electric rolling system -
Portable equipment and hi-tech electrical mobile stations for controlled rolling of tubesAutomatic electric rolling system
