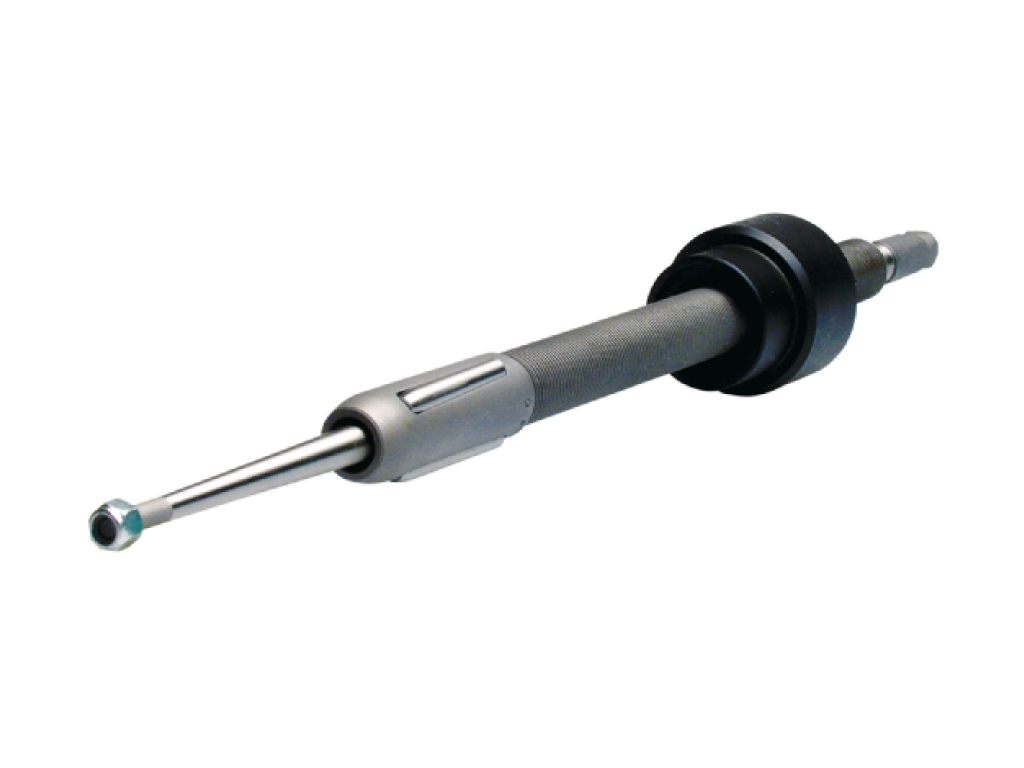

R/50 Series
Tube expanders for shell and tube heat exchangersAdjustable depth tube expanders for thick tubesheets
- Tubes with external diameter from 1/2" to 1.1/2" (from 12,7 to 38,1 mm)
- Adjustable depth from 3/8" to 6" (from 9,5 to 152,4 mm)
- Roller length 1.1/2" (38,1 mm)

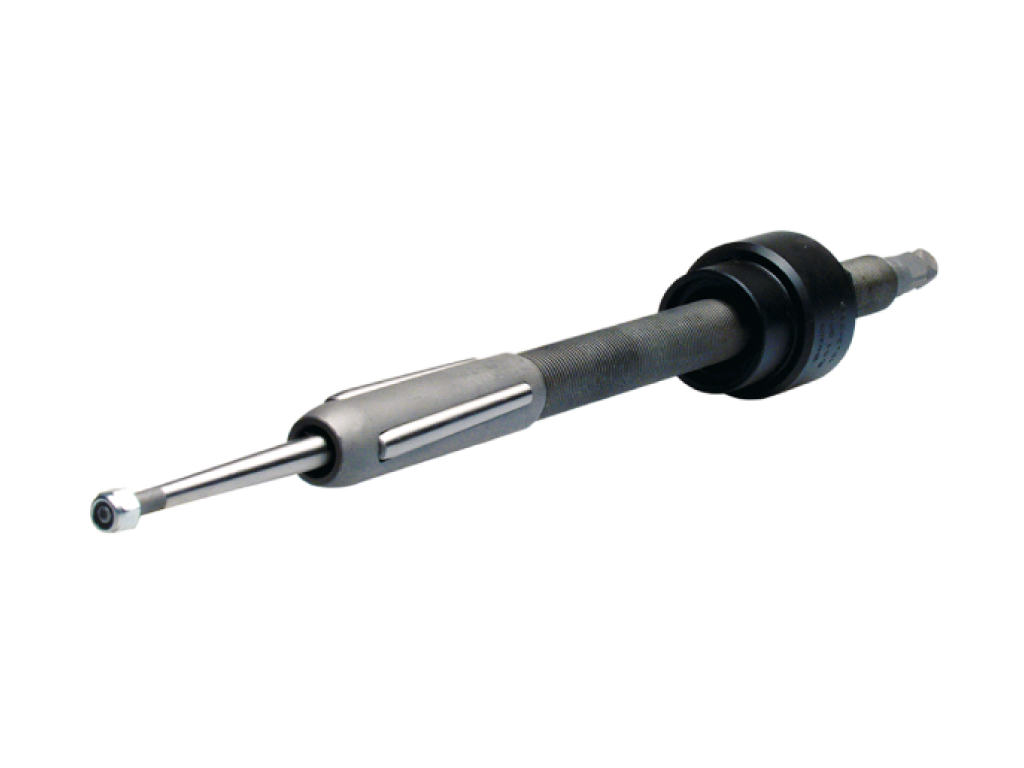

R/51 Series
Tube expanders for shell and tube heat exchangersAdjustable depth tube expanders for thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 1,1/8" to 6.3/4" (from 28,6 to 171,5 mm)
- Roller length 2.1/4" (57,1 mm)
R/50/260 Series
Tube expanders for heat exchangers and aircoolerAdjustable depth tube expanders for thick tubesheets and air cooler
- Tubes with external diameter from 1/2" to 1.1/2" (from 12,7 to 38,1 mm)
- Adjustable depth from 3/8" to 10.1/4" (from 9,5 to 260,4 mm)
- Roller length 1.1/2" (38,1 mm)
R/50/360 Series
Tube expanders for heat exchangers and aircoolerAdjustable depth tube expanders for thick tubesheets and air cooler
- Tubes with external diameter from 1/2" to 1.1/2" (from 12,7 to 38,1 mm)
- Adjustable depth from 3/8" to 14.1/4" (from 9,5 to 362,0 mm)
- Roller length 1.1/2" (38,1 mm)
R/51/100 Series
Tube expanders for shell and tube heat exchangersAdjustable depth tube expanders for thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 1.1/8" to 4" (from 28,6 to 100,0 mm)
- Roller length 2.1/4" (57,1 mm)
R/51/280 Series
Tube expanders for shell and tube heat exchangersAdjustable depth tube expanders for thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 1.1/8" to 11" (from 28,6 to 280,0 mm)
- Roller length 2.1/4" (57,1 mm)
R/51/380 Series
Tube expanders for shell and tube heat exchangersAdjustable depth tube expanders for thick tubesheets
- Tubes with external diameter from 5/8" to 1.1/2" (from 15,9 to 38,1 mm)
- Adjustable depth from 1.1/8" to 15" (from 28,6 to 380,0 mm)
- Roller length 2.1/4" (57,1 mm)
