Maus Italia - Giotto Basic
TIG orbital welding

Giotto Basic

High-quality tube to tubesheet TIG orbital welding system

Maus Italia presents the Giotto Basic orbital welding system for tube to tubesheet welding in heat exchangers. Portable entry-level product, suitable for simple applications. It stands out for its value for money, easy to use and robustness.

Its in-house design and manufacture has enabled us to optimise the design in order to offer a high-quality system, comprising:

  • A Giotto 250B orbital head for tube to tubesheet TIG welding
  • Microprocessor inverter generator Giotto Power 200 complete with cooling unit
Download catalog Watch full video

The division of the welding cycle into 4 sectors makes it possible to compensate for the negative effetcs of gravity on the welding pool

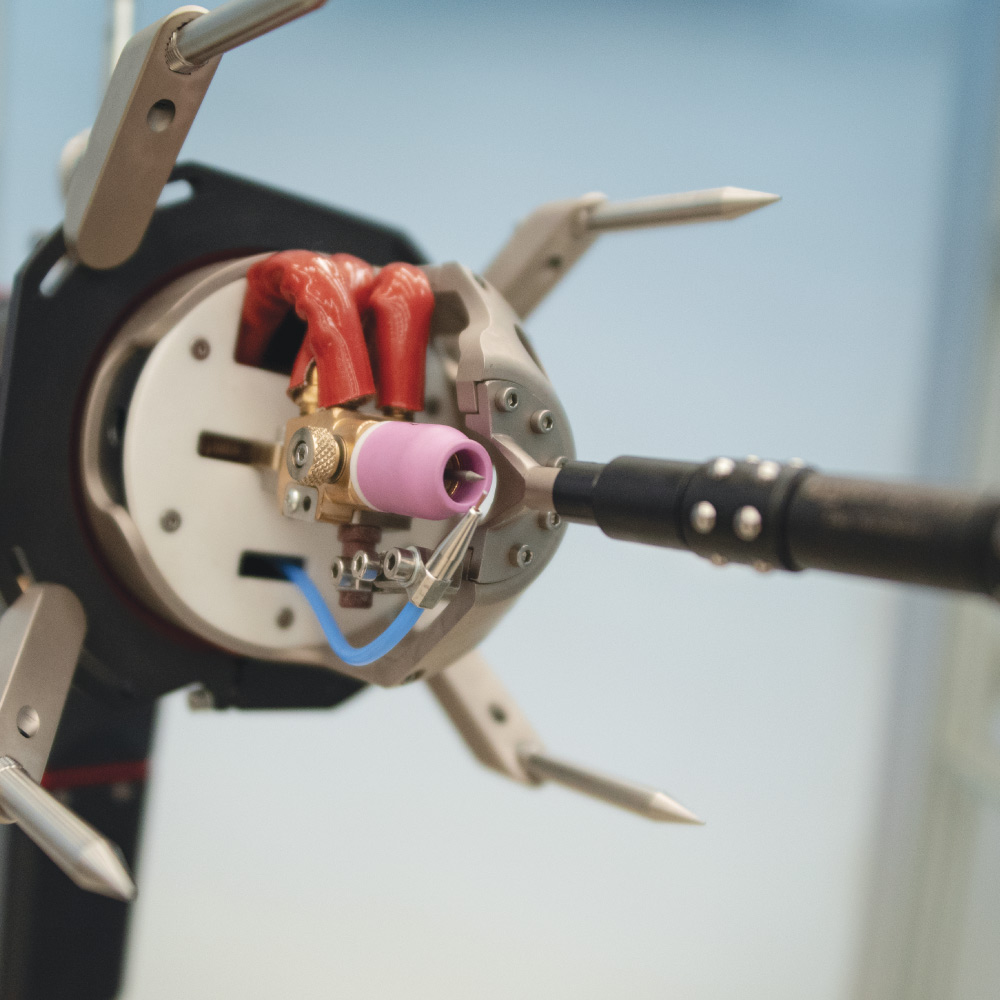

The use of the electrode holder system with preset angles allow any welding geometry and makes the "setup" easy and repeatable

The constant wire flow and the rotation of the wire reel on the orbital axis increase the precision and quality of the weld

Focus features

Prime technology for tube to tubesheet junctions

In-house design and manufacture has enabled us to optimise the design in order to offer a high-quality system

Precise position

Optical control of angular position without mechanical contact with resolution of 120 pulses per revolution (3°).

Digital interface

Digital programming panel which facilitates the setting of welding parameters.

24/7 Use

The enhanced cooling system, inside the head, allows intensive use of the system.

Adjustement with a singe key

All adjustement available for the different welding geometries only require the single supplied key.

Tube to tubesheet TIG orbital welding head

Giotto 250B

The Giotto 250B head has a device for adjusting the distance of the electrode from the tubesheet.

Complete range of devices for centring in the tube consisting of HS cartridge spindles and HC self-centring cartridges.

Thanks to components with predetermined angles, the proposed system for each welding geometry is absolute and repeatable. It facilitates geometric setup operations as well as being extremely stable and robust.

Maus Italia - Giotto welding head 250B

Digital inverter generator with integrated control microprocessor and digital interface

Giotto Power 200

Lightweight and compact, the Giotto Power 200 generator is proposed by Maus Italia for controlling the Giotto 250B orbital welding head. Mounted on a “carriage pickUP” with a gas bottle holder, the Giotto Power 200 generator is also for onsite service operations. Thanks to the SIEMENS LOGO! TDE integrated panel with LED backlighting, the programming of parameters is quick and easy.

Maus Italia - Giotto Digital inverter generator Power 200

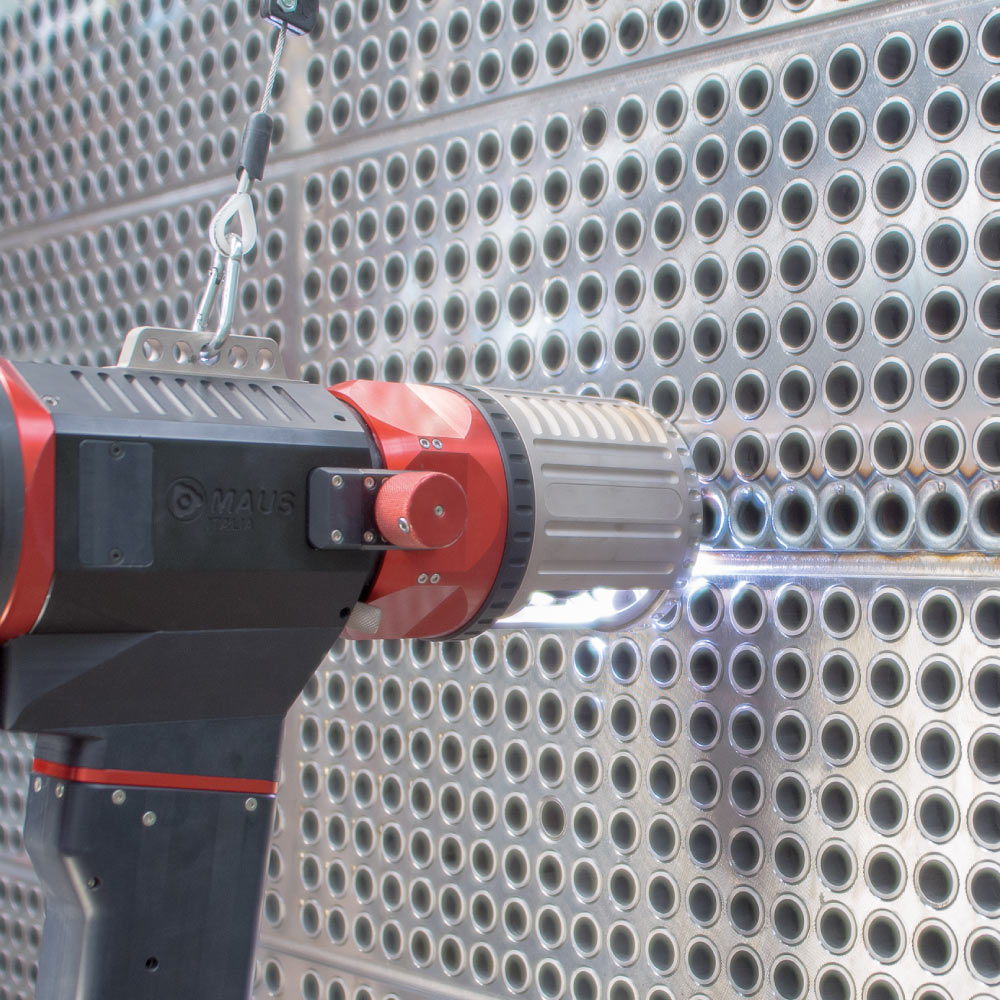

Heat exchangers production and maintenance
