Matex Series
Portable equipment and hi-tech electric mobile stations for automatic controlled rolling of tubes from 1/4" up to 3" (from 6,35 up to 76,20 mm).
Always at the forefront of research, Maus Italia has designed and manufactured, thanks to experience acquired over more than fifty years in the field, their new Matex mobile high-tech electric mobile stations for semi-automatic tube rolling. Top of the range in this category, its innovative solutions allow it to address tube rolling on an industrial scale.
Each component has been redesigned and updated by making the most of the latest technologies and, above all, by listening to the continuous feedback of our discerning customers, resulting in a product designed to last over time and to withstand large loads of daily work in heat exchanger construction yards.

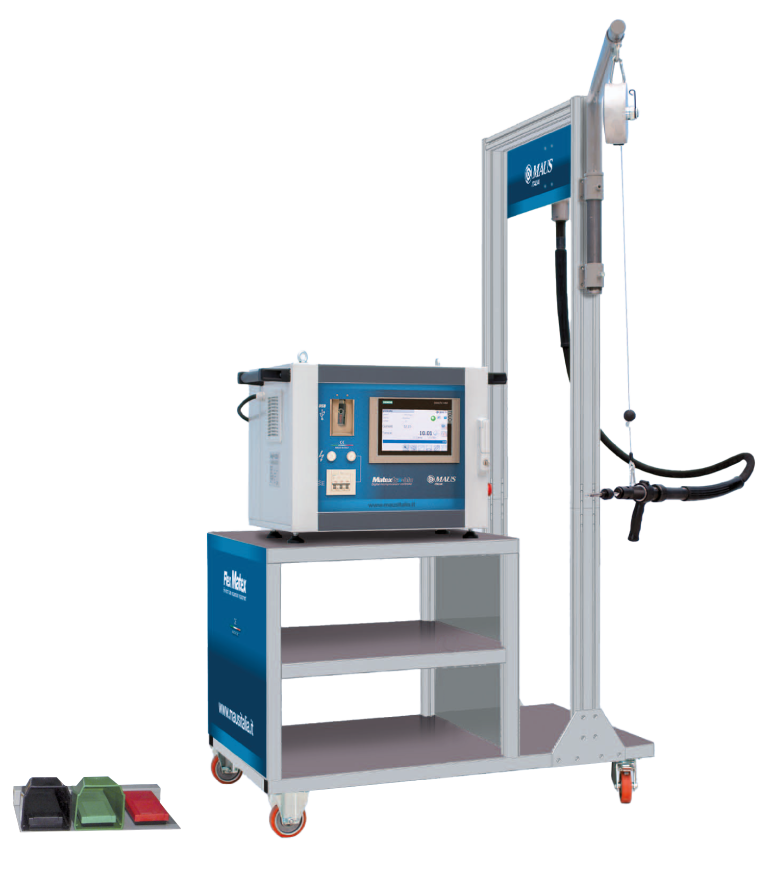

Flex Matex
"High-tech" tube rolling system with flexible shaftThe Flex Matex system is primarily aimed at heavy-duty users and is recommended for the serial production of small heat exchangers where lightness and manoeuvrability of tools significantly reduces production times.
Compared to traditional rolling systems with fixed speed motors, the Flex Matex is characterised by high productivity, the quality of the rolled product and the consistent reduction in wear of the tools.
- For tubes with diameter from 1/4" to 3/4" (from 6,35 to 19,05 mm)
- Easy to handle
- Lightweight
Torque released on the trolley does not weight on the operator.
Flexible telescopic shaft mounted on a trolley for quick movement around the workshop.

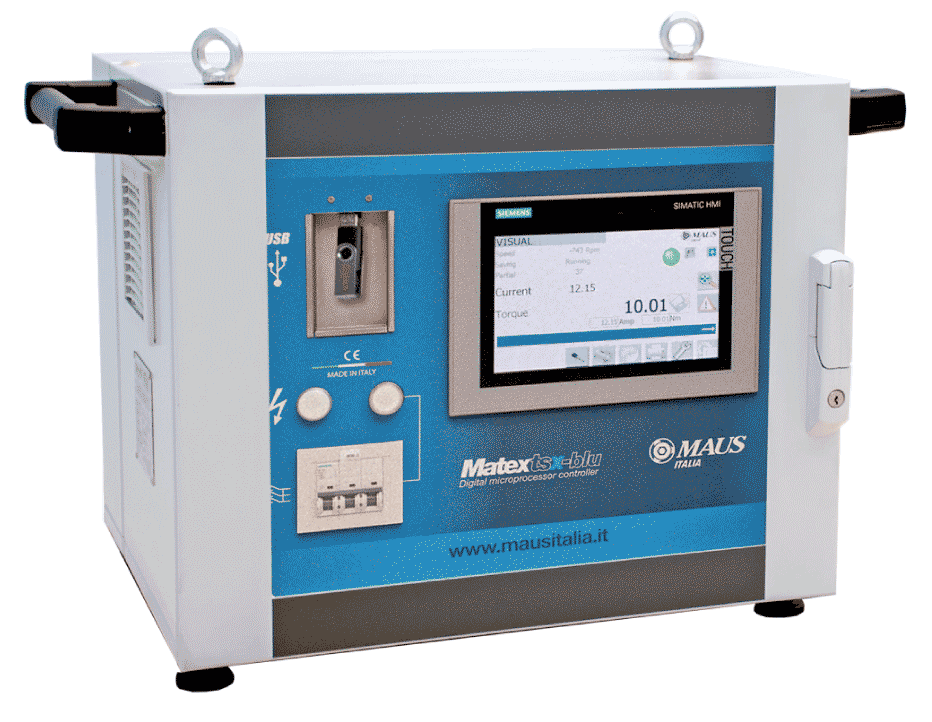

Matextsx-blu electronic controller
Torque-based speed continuous variationThe digital control unit Matextsx-blu is the brain of the system. Easy to use and equipped with 8" LCD touch screen, it has user friendly interface with dedicated software and it is protected by a sturdy metal case with a high degree of protection IP 55.
The Matextsx-blu allows the compensation of the tolerances for both the diameter of the holes in the tube sheets and of the thickness of the tubes with consequent reaching of uniform sealing of all the tubes at the operating pressure of the heat-exchange equipment, also estimating tube rolling times.

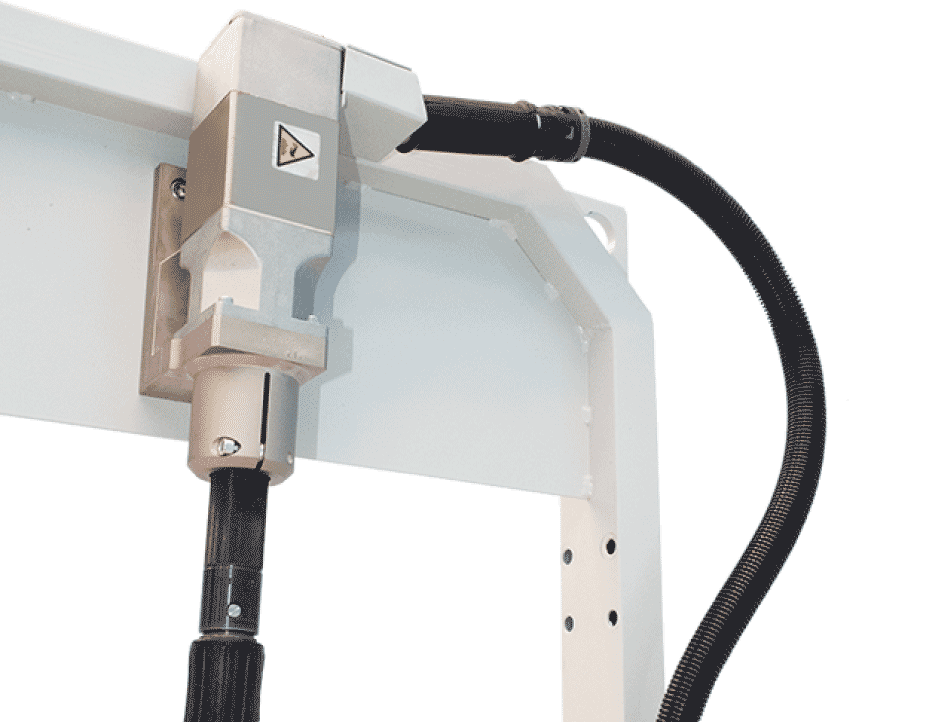

Electric rolling motor
Matex RF SeriesRobust and silent with a brushless, variable speed, low voltage ( 48V ) motor and integrated suspension, the R Series tube rolling machines have been specially designed for:
- Significant increase in sensitivity
- Continuous speed variation
- Flexibility of use
Using low voltage tube rolling systems meets the strict safety regulations for portable equipment on work sites where there are large metal masses.
Electric tube rolling motors
Discover the power behind precision. Tube rolling motors are at the heart of high-efficiency tube expansion and forming processes across industries—from HVAC to power generation, petrochemical to food and beverage. Engineered for durability, performance, and control, our motors are designed to meet the demanding needs of both manual and automated tube rolling applications.
-
Portable electrical equipment for controlled rolling of tubesElectric system -
Mobile station for automatic tube rollingAutomatic electric rolling system -
Portable equipment and hi-tech electrical mobile stations for controlled rolling of tubesAutomatic electric rolling system -
Portable equipment and hi-tech electrical mobile stations for controlled rolling of tubesAutomatic electric rolling system
-
Portable equipment and hi-tech electrical mobile stations for controlled rolling of tubesAutomatic electric rolling system
-
Hi-tech hydro-mechanically expansion system for tube expanders with parallel rollsAutomatic / Parallel rolls
